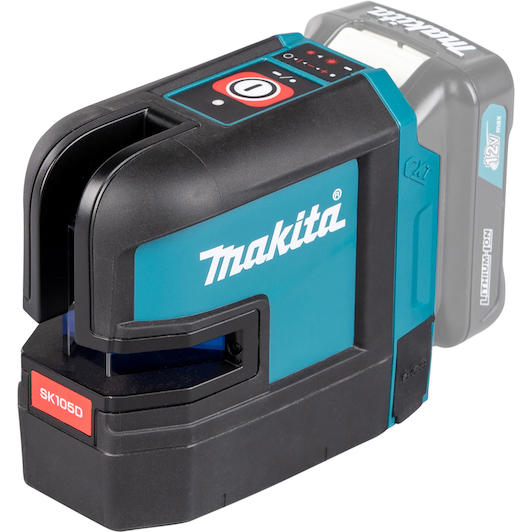

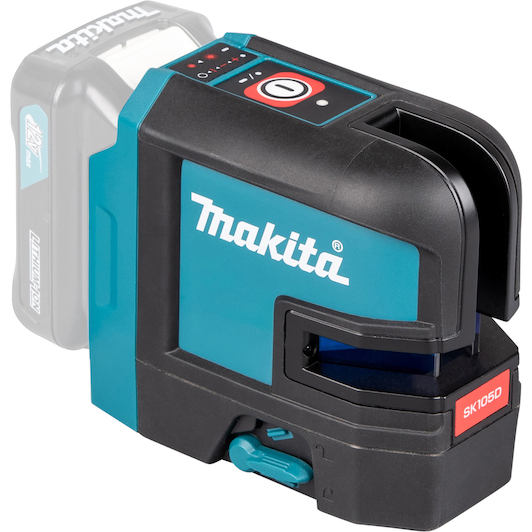

MAKITA SK105DZ 12Vmax CXT cross line laser red in cordura bag (1H + 1V)

MAKITA
Supplier number: MAKITA SK105DZ | EAN 0088381851893
6 review(s)
Recommended Retail Price €254.01
187.46 tax incl.
€154.92 excl. VAT (incl. all environmental contributions)
On stock - immediately available

  • Delivery by DHL
✆ Talk to a specialist

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

Makita Deals

Take advantage of the Makita deals for a limited time and receive at least 1 free Makita item when purchasing this machine or set. Promotion valid until 31.03.2027 or while stocks last.

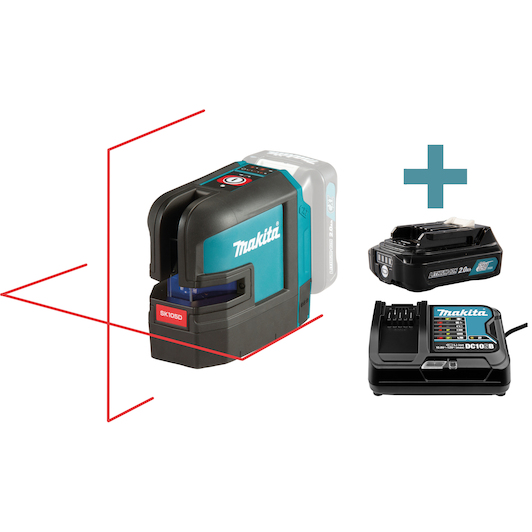

With this Makita deal, you receive free of charge:

  • 197280-8 (BL1850B - 632F15-1): LXT 5.0 Ah Li-ion battery
  • 197363-4 (DC10SB): CXT battery charger

How does it work?

  • Order this Makita deal and receive the items mentioned above free of charge with your purchase.
  • The free items are delivered directly with your order. No additional registration is required.
  • The promotion is valid until 31.03.2027 or while stocks last.
  • Makita deals are recognisable by the promotion label on the product page. Click the label to view all available Makita deals.

Accurate alignment with Makita SK105DZ

Practical benefits

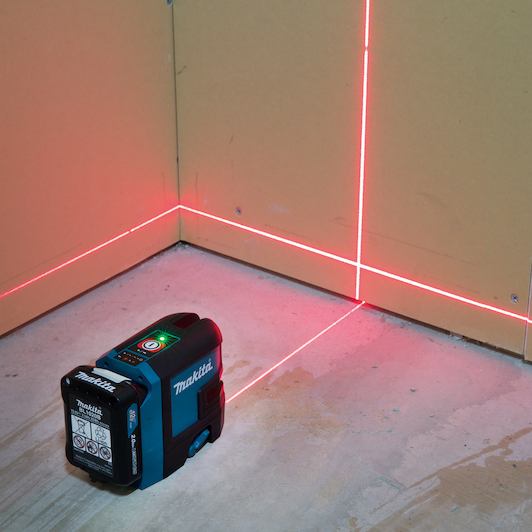

  • High visibility and range: You project bright red reference lines visible up to 25 m, extendable to 80 m when using a detector.
  • Fast self-levelling capability: The self-levelling range of 4 degrees ensures you achieve plumb vertical and horizontal lines effortlessly on uneven surfaces.

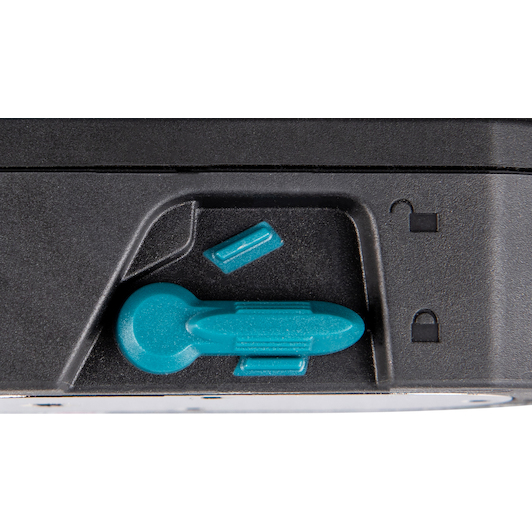

  • Durable jobsite ready design: Built with IP54 dust and splash resistance alongside a pendulum lock, you keep the internal mechanism protected during work and transit.

In a nutshell

The right choise for

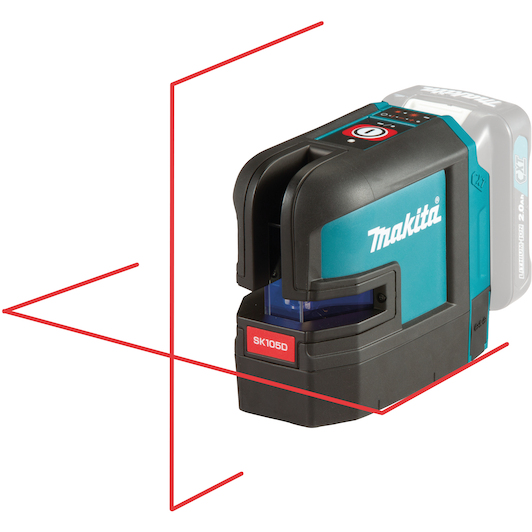

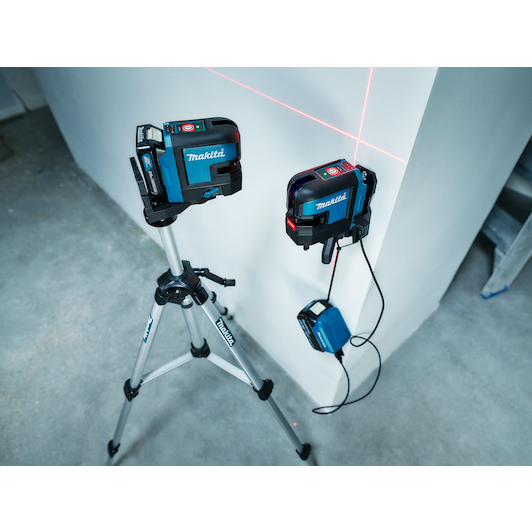

The Makita SK105DZ cross line laser gives you the accuracy and confidence needed for all interior finishing projects. It projects one horizontal and one vertical bright red reference line with a visible range up to 25 m and a precise 0.3 mm/m accuracy. The automatic self-levelling range of 4 degrees quickly compensates for uneven surfaces, ensuring partition walls, tiling, and cabinetry are aligned perfectly without guesswork. Built for demanding jobsites, the IP54-rated housing and pendulum lock protect the laser mechanism from dust, water splashes, and transport impacts. Use the included magnetic wall mount bracket for easy hands-free positioning on metal studs. This compact 12V Max cxt tool comes complete with a target plate and soft Cordura pouch.



Product information Accessories FAQ Reviews
€187.46
In stock - tax incl.

Product information

Key features according to our expert

  • Laser type: Cross line laser
  • Type of system case: Not applicable
  • Max. range: 25 m
  • With tripod: No

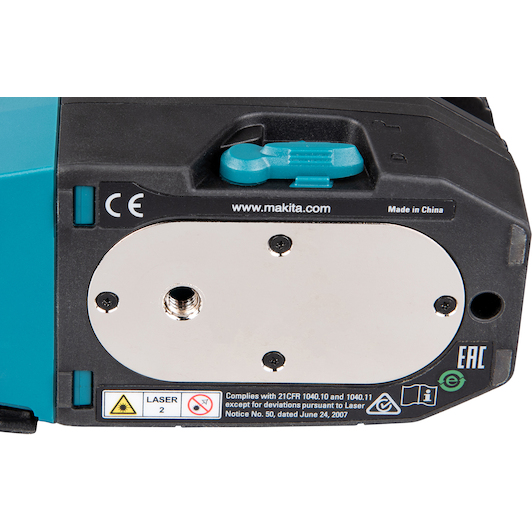

  • Tripod thread: 1/4"; 5/8"
  • Projection (laser beams): 1 horizontal, 1 vertical
  • Weight: 0,46 kg
  • Self-levelling range: 4,0000 °
  • Supplied in: Bag
  • Max. range with receiver: 80 m
  • Laser class: Class 2
  • Accuracy: 0,3 mm/m
  • Colour (laser beams): Red
  • Protection class IP: IP54
  • Product Range: Makita CXT 12V

Scope of delivery

  • 1 x LE00758831 Laser target plate
  • 1 x LE00864505 Soft case
  • 1 x LE00870131 MAGNETIC wall bracket SK series P

Product description

Battery cross line laser with red laser

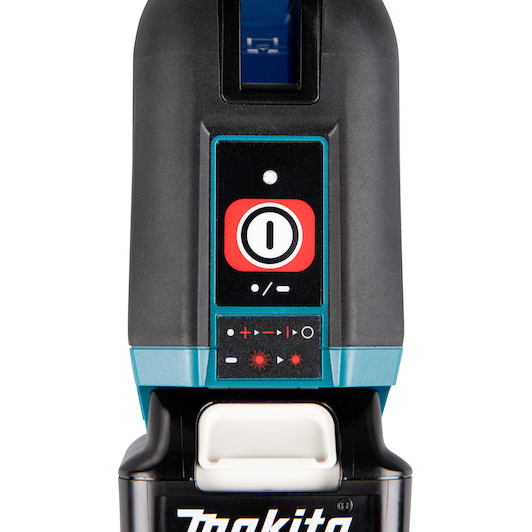

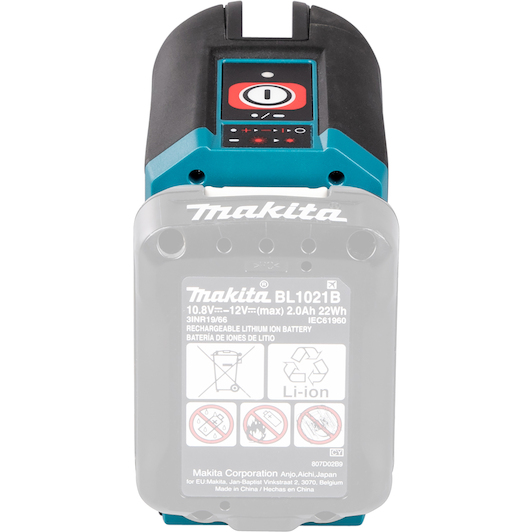

A self-levelling cross-line laser with red vertical and horizontal lines that can be used separately or together. Visibility up to 25 metres. All functions are easily operated with a single button. The laser is dust- and water-resistant with IP54 rating and the operating time with a 4.0 Ah battery is about 40 hours.

  • The battery protection system automatically switches off the power when the battery level is low
  • Horizontal line and vertical line
  • Dust- and water-resistant with IP54 rating for increased durability

All Features

Laser type
Cross line laser
Type of system case
Not applicable
Max. range
25 m
With tripod
No
Tripod thread
1/4"; 5/8"
Projection (laser beams)
1 horizontal, 1 vertical
Weight
0,46 kg
Self-levelling range
4,0000 °
Supplied in
Bag
Max. range with receiver
80 m
Laser class
Class 2
Accuracy
0,3 mm/m
Colour (laser beams)
Red
Protection class ip
IP54
Battery chemical composition (nicd/nimh/li-ion)
Li-ion
Cxt battery
1
Net product weight
0.46 kg
Average accuracy (2 s) of length measurement
± 3 mm / 10 m
12vmax /4.0 ah battery for continuous use
40 h
Ip protection class
IP54
12vmax / 2.0 ah battery for continuous use
20 h
12vmax / 1.5ah battery for continuous operation
15 h
Weight with battery
0.67 - 0.84 kg
Nominal battery voltage
12 V
Levelling range
±4 º
Dimensions (l x w x h)
138 x 64 x 102 mm
Measuring range
25 (80) m
Operating temperature
-10 - 50 °C
Product range
Makita CXT 12V
  • Brand MAKITA
  • EAN 0088381851893
  • Supplier number MAKITA SK105DZ

Accessories

Frequently asked questions about this product

Answered by specialists
What is the working range of this cross line laser?
The visible range is up to 25 m. When paired with an optional laser receiver, the range extends up to 80 m.
Which battery is compatible with the Makita SK105DZ?
It runs on all Makita 12V Max CXT Li-ion batteries. The battery and charger are not included with this bare tool (Z-model).
What accessories are included in the box?
You receive the laser with a magnetic wall mount bracket, a target plate, and a soft Cordura pouch.
Can this laser be mounted on a tripod?
Yes, the unit includes integrated 1/4" and 5/8" tripod threads to fit most standard tripods.
What is the leveling accuracy of this laser?
It provides an accuracy of 0.3 mm/m and self-levels within an angle of 4 degrees.
