Which batteries are required to operate this circular saw?

This saw runs on two 18V LXT batteries simultaneously to deliver 36V performance. Batteries and a charger are not included.

What is the maximum cutting depth of this tool?

The maximum cutting depth is 68.5 mm at a 90° angle and 49 mm at a 45° bevel.

Which saw blades are compatible with this model?

It takes circular saw blades with a 190 mm diameter and a 30 mm bore. A 12-tooth saw blade is included in the box.

Is this circular saw directly compatible with a guide rail?

No, an optional guide rail adapter is required to fit and use this saw on a Makita guide rail.

Can you connect this tool to a dust extractor?

Yes, the included dust extraction nozzle allows you to connect the machine directly to an external vacuum.

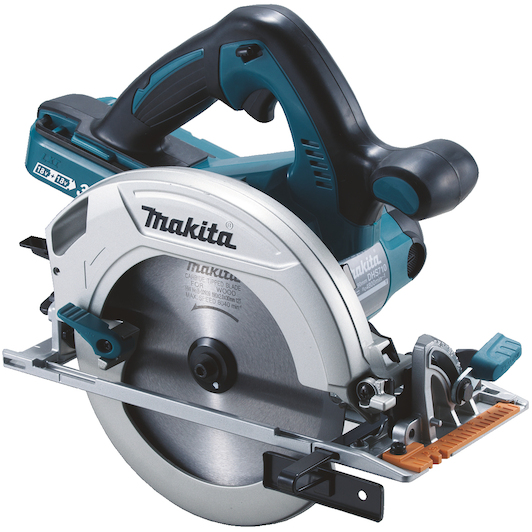

MAKITA DHS710ZJ 2x18V LXT cordless circular saw 68,5mm 190mm (without battery and charger)

Name: MAKITA DHS710ZJ 2x18V LXT cordless circular saw 68,5mm 190mm (without battery and charger)
Brand: MAKITA
SKU: 02392787
Price: 398.54 EUR
Availability: PreOrder

Supplier number: MAKITA DHS710ZJ | EAN 0088381654579

Variant

This product has been discontinued.

Successor to this product

MAKITA DHS782ZJ 2x18V LXT cordless circular saw 62,5mm 190mm...

View product

✆ Talk to a specialist

Powerful and accurate timber cutting with Makita

Practical benefits

Dual battery power for cuts: Powered by two 18V LXT batteries delivering 36V performance, you cut through tough lumber without bogging down.
High versatile cutting depth: Achieving a cut depth of 68.5 mm at 90° and 49 mm at 45°, you tackle thick construction materials with ease.
Clear view of cut line: The built-in dust blower clears sawdust from your path so you always track your cut line accurately.

In a nutshell

The right choise for

With the Makita DHS710ZJ, you cut through thick wooden beams and sheet materials with cordless ease. Powered by two 18V lxt batteries delivering 36V performance, it frees you from trailing extension cords across the job site. a maximum cutting depth of 68.5 mm at 90° and 49 mm at 45° lets you tackle heavy structural timber in a single pass. The built-in dust blower and included dust extraction nozzle keep your cut line clear and visible. This circular saw comes in a Makpac IV case with a 190 mm saw blade and parallel guide, without batteries and charger.

Product information Accessories FAQ

Key features according to our expert

Battery voltage: 2 x 18 V
Saw blade diameter: 190 mm
Max. cutting depth: 68,5 mm
Plunge saw: No
Max. cutting depth at 45°: 49 mm
Max. cutting depth at 90°: 68,5 mm
Supplied in: System case
Type of system case: Makpac IV
Weight: 3 kg
UN number: Not applicable
Number of batteries included: 0
Product Range: Makita LXT 18V

Scope of delivery

1 x 164095-8 Parallel guide
1 x 196520-1 Vacuum nozzle
1 x 783217-7 Allen spanner 5.0 mm
1 x 821552-6 Makpac case IV
1 x B-02939 Circular saw blade 190x30 mm 12 T

Product description

Robust saw for heavy professional use

A robust wood saw for professional use with two LXT® 18 V batteries with an output of 36 V. A sturdy aluminium table that can be tilted to an angle of 50°. A blade diameter of 190 mm with a maximum cutting depth of 68.5 mm. Compatible with a parallel guide. No battery or charger included. Comes in a MakPac case.

Rubber coating on the handle ensures a firm grip
Safety switch prevents accidental starting of the tool
Battery protection system automatically switches off the power when the battery level is low

All Features

Battery voltage: 2 x 18 V
Saw blade diameter: 190 mm
Max. cutting depth: 68,5 mm
Plunge saw: No
Max. cutting depth at 45°: 49 mm
Max. cutting depth at 90°: 68,5 mm
Supplied in: System case
Type of system case: Makpac IV
Weight: 3 kg
Un number: Not applicable
Number of batteries included: 0
Blade diameter: 190 mm
Noise uncertainty (k-factor): 3 dB(A)
Electronic brake: 1
Product range: Makita LXT 18V
Max. chamfer range (right): 0 - 50 º
Dust extraction connection ø inw/outw: 35 / 40 mm
Vibration uncertainty (k factor), sawing wood: 1.5 m/s²
Weight with battery: 3.9 - 4.6 kg
Battery chemical composition (nicd/nimh/li-ion): Li-ion
Lxt voltage: 1
Max. cutting depth at 50°: 44 mm
Nominal battery voltage: 2 x 18 V
Dimensions (l x w x h): 356 x 217 x 298 mm
Shaft hole: 30 mm

Brand MAKITA
02392787
EAN 0088381654579
Supplier number MAKITA DHS710ZJ
Warranty Up to 5 years warranty on Makita after successful registration!
