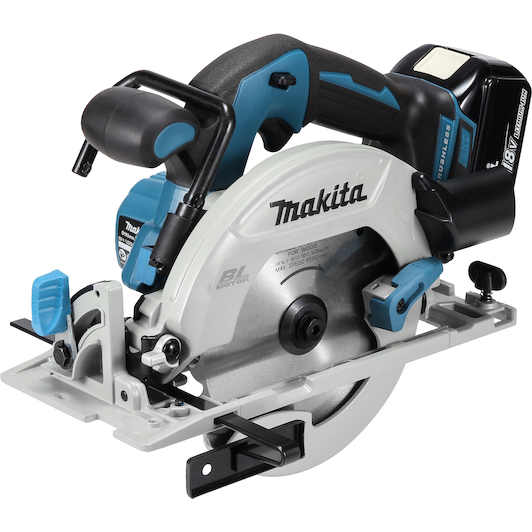

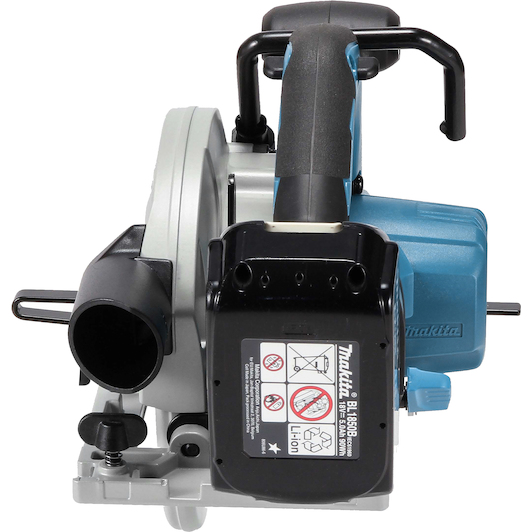

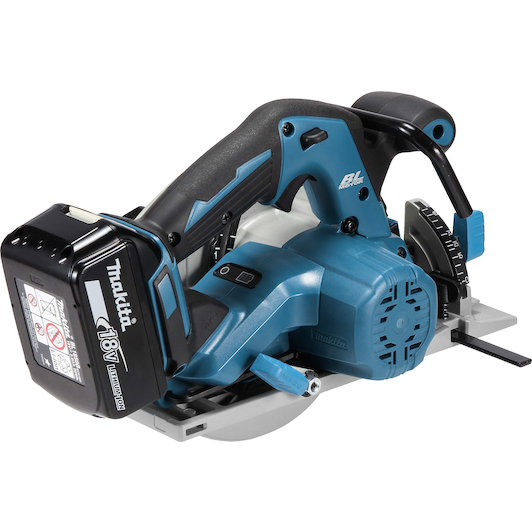

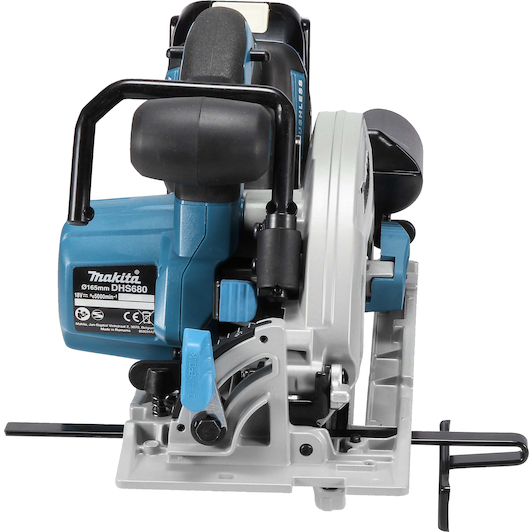

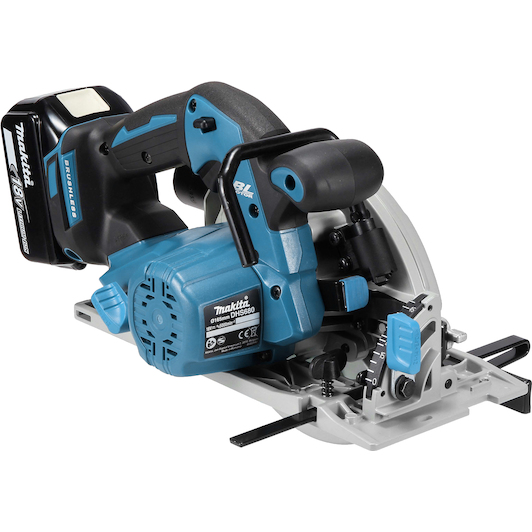

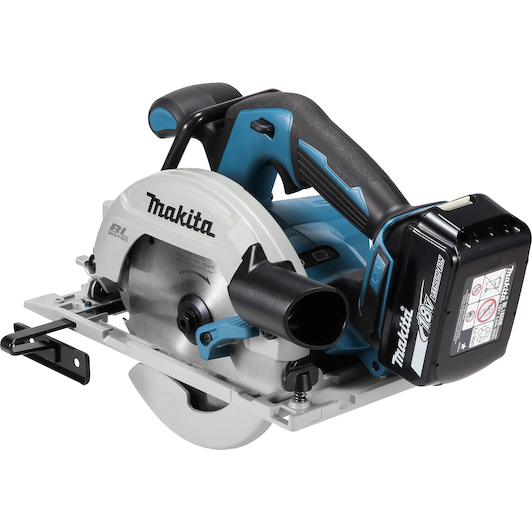

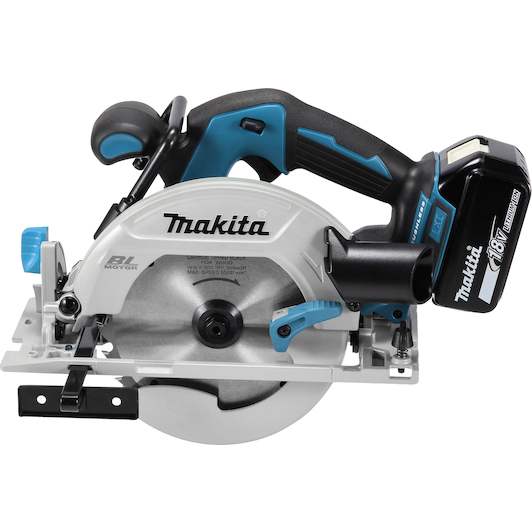

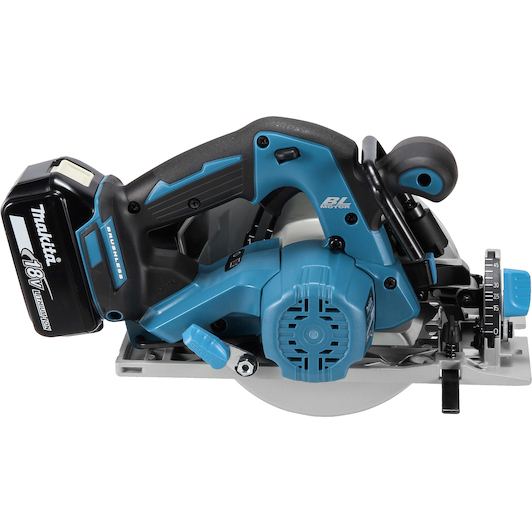

MAKITA DHS680T1J 18V LXT cordless circular saw 57mm 165mm in MAKPAC III (1x 5.0Ah battery)

Name: MAKITA DHS680T1J 18V LXT cordless circular saw 57mm 165mm in MAKPAC III (1x 5.0Ah battery)
Brand: MAKITA
SKU: 03174165
Price: 364.32 EUR
Availability: InStock

Supplier number: MAKITA DHS680T1J | EAN 0088381736121

Variant

Recommended Retail Price €456.74

364.32 tax incl.

€301.09 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Delivery by DHL
Up to 5 years warranty on Makita after successful registration!

✆ Talk to a specialist

Smooth cuts with Makita

Practical benefits

Cutting depth to 57MM: You effortlessly slice through thick timber and panels with a maximum 90° cutting depth of 57MM.
Automatic speed regulation: The saw automatically adjusts torque and speed under heavy loads to maintain consistent cutting progress throughout your work.
Clear view along cuts: Twin LED work lights and the integrated dust blower give you an unobstructed view of the cutting line.

In a nutshell

The right choise for

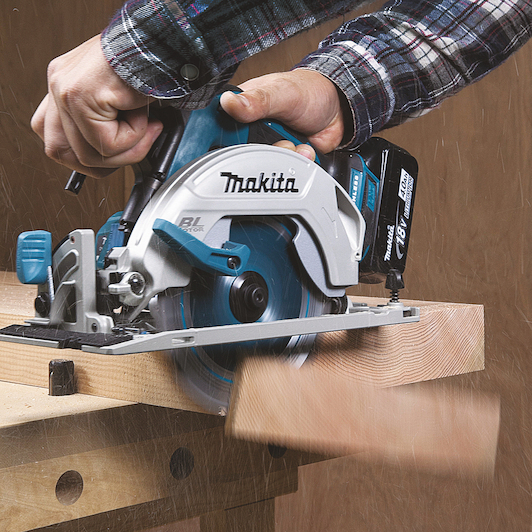

Take on challenging cutting tasks with complete freedom using the Makita DHS680T1J cordless circular saw. Delivering a maximum cutting depth of 57 mm at 90° and 41 mm at 45°, it glides through construction timber and sheet materials like osb and plywood without trailing cables. The automatic speed regulation dynamically balances torque and speed under heavy loads to maintain smooth cutting progress. Twin led lights and a built-in dust blower ensure an unobstructed view along your cut line. Supplied with an 18V lxt 5.0 Ah battery (BL1850B), a 165 mm Efficut saw blade, parallel guide, and dust extraction nozzle in a stackable Makpac III case, you are equipped for efficient job site work.

Product information Accessories FAQ

€364.32

In stock - tax incl.

Key features according to our expert

Battery voltage: 18 V
Capacity (battery): 5 Ah
Saw blade diameter: 165 mm
Max. cutting depth: 57 mm
Plunge saw: No
Max. cutting depth at 45°: 41 mm
Max. cutting depth at 90°: 57 mm
Supplied in: System case
Type of system case: Makpac III
Weight: 2,57 kg
UN number: UN3481
Number of batteries included: 1
Product Range: Makita LXT 18V

Scope of delivery

1 x 197280-8 Battery LXT® 5.0 Ah BL1850B
1 x 164095-8 Parallel guide
1 x 196961-1 Dust nozzle 35 / 40 mm
1 x 783203-8 Allen spanner 5 mm
1 x 821551-8 Makpac case III
1 x 838182-6 MakPac (3) Inner tray
1 x B-62985 Circular saw blade, Efficut TCT, 165 x 20 mm, 25 T

Product description

Efficient and compact brushless professional saw

An efficient brushless and cordless circular saw for wood. Suitable for 165 mm diameter blades with a maximum cutting depth of 57 mm. Ventilation air is directed through the front to keep the cutting line clear and an LED lamp provides additional illumination. Compatible with a parallel guide.

Compact and lightweight design
Automatic torque drive technology (ADT) adjusts speed and torque during operation for optimum performance
The LED lamp illuminates the work area
The rubber coating on the handle ensures a firm grip
The safety switch prevents the tool from being started accidentally
Battery protection system automatically switches off power when battery level is low
Removable dust extraction connection

All Features

Battery voltage: 18 V
Capacity (battery): 5 Ah
Saw blade diameter: 165 mm
Max. cutting depth: 57 mm
Plunge saw: No
Max. cutting depth at 45°: 41 mm
Max. cutting depth at 90°: 57 mm
Supplied in: System case
Type of system case: Makpac III
Weight: 2,57 kg
Un number: UN3481
Number of batteries included: 1
Brushless motor: 1
Blade diameter: 165 mm
Noise uncertainty (k-factor): 3 dB(A)
Electronic brake: 1
Product range: Makita LXT 18V
Dust extraction connection ø inw/outw: 35 / 40 mm
Vibration uncertainty (k factor), sawing wood: 1.5 m/s²
Weight with battery: 3.0 - 3.3 kg
Battery chemical composition (nicd/nimh/li-ion): Li-ion
Lxt voltage: 1
Max. cutting depth at 50°: 37 mm
Max. chamfer range (left): 0 - 50 º
Nominal battery voltage: 18 V
Dimensions (l x w x h): 350 x 170 x 238 mm
Shaft hole: 20 mm

Brand MAKITA
03174165
EAN 0088381736121
Supplier number MAKITA DHS680T1J
Warranty Up to 5 years warranty on Makita after successful registration!

Accessories

MAKITA B-63149 saw blade SPECIALIZED sandwich panels

Recommended Retail Price €90.99

58.80

€48.59 excl. VAT

Delivery time average 9 days.

Frequently asked questions about this product

Answered by specialists

What is the maximum cutting depth of this circular saw?: The maximum cutting depth is 57 mm at 90° and 41 mm at a 45° bevel angle.
Which battery and charger are included in the scope of delivery?: The kit includes one 18V LXT 5.0 Ah battery (BL1850B) in a Makpac III case. A charger is not included.
What size saw blade does this tool require?: This circular saw uses blades with a 165 mm diameter and a 20 mm bore size.
Is this circular saw directly compatible with guide rails?: No, mounting it on a guide rail requires an optional guide rail adapter (such as 196953-0).
Can a dust extractor be connected to the machine?: Yes, a removable dust extraction nozzle with a 35 / 40 mm port is included.
