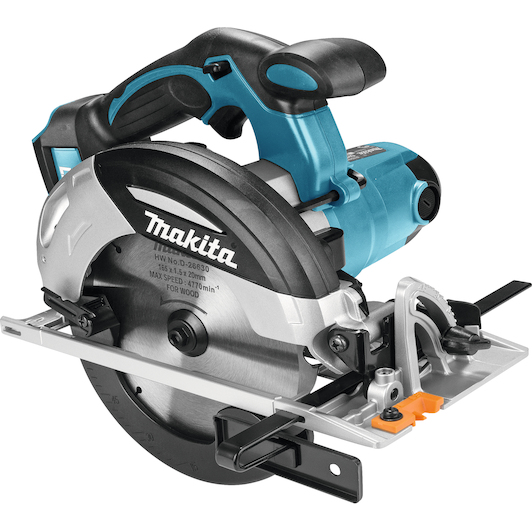

MAKITA DHS630ZJ 18V LXT cordless circular saw 66mm 165mm in MAKPAC (without battery and charger)

MAKITA
Supplier number: MAKITA DHS630ZJ | EAN 0088381661126

Variant

MAKITA DHS630ZJ 18V LXT cordless circular saw 66mm 165mm in MAKPAC (without battery and charger) MAKITA DHS630ZJ 18V LXT cordless circular saw 66mm 165mm in MAKPAC (without battery and charger) MAKITA DHS630RTJ 18V LXT cordless circular saw 66mm 165mm in MAKPAC (2x 5.0Ah battery + charger) MAKITA DHS630RTJ 18V LXT cordless circular saw 66mm 165mm in MAKPAC (2x 5.0Ah battery + charger)
Recommended Retail Price €398.54
325.68 tax incl.
€269.16 excl. VAT (incl. all environmental contributions)
On stock - immediately available | we have 2 products in stock.

✆ Talk to a specialist

Reliable cordless cutting capacity

Practical benefits
  • Deep cutting up to 66MM: With the Makita DHS630ZJ, you cut effortlessly up to 66 mm at 90° and 46 mm at 45°.
  • Organized in Makpac case: You transport and protect your cordless saw safely in the included Makpac IV connector case.
  • Accurate straight rip cuts: You achieve precise, repeatable cuts along edges with the supplied parallel guide.

In a nutshell

The right choise for

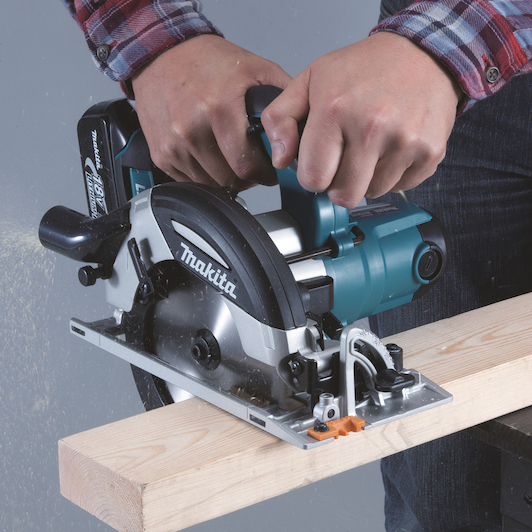

With the Makita DHS630ZJ, you power through wooden beams and sheet materials completely cord-free on any job site. This 18V cordless circular saw uses a 165 mm saw blade to deliver a maximum cutting depth of 66 mm at 90° and 46 mm at 45°. The included parallel guide enables precise, repeatable straight cuts, while the light weight of 2.57 kg gives you exceptional control when working on scaffolding or roofs. When the job is done, store your tool and hex wrench neatly in the supplied makpac IV case. Expand your existing Makita lxt system effortlessly with this versatile bare unit.



Product information Accessories FAQ
€325.68
In stock - tax incl.

Product information

Key features according to our expert

  • Battery voltage: 18 V
  • Max. cutting depth at 90°: 66 mm
  • Number of batteries included: 0
  • Weight: 2,57 kg
  • Type of system case: Makpac IV
  • Supplied in: System case
  • UN number: Not applicable
  • Max. cutting depth at 45°: 46 mm
  • Plunge saw: No
  • Max. cutting depth: 66 mm
  • Saw blade diameter: 165 mm
  • Product Range: Makita LXT 18V

Scope of delivery

  • 1 x 164095-8 Parallel guide
  • 1 x 783203-8 Allen spanner 5 mm
  • 1 x 821552-6 Makpac case IV
  • 1 x 837635-2 MakPac (4)-inlay

Product description

Efficient and compact professional saw

An efficient cordless circular saw for wood. Suitable for 165 mm diameter blades with a maximum cutting depth of 66 mm. Ventilation air is led through the front to keep the cutting line clear and an LED lamp provides additional illumination. Compatible with a parallel guide. Tool only, battery and charger not included. Comes in a MakPac case.

  • Compact and lightweight design
  • Built-in dust blower clears the cutting line for greater accuracy
  • The LED light illuminates the work area
  • Rubber coating on the handle ensures a firm grip
  • The safety switch prevents the tool from being started accidentally
  • Battery protection system automatically switches off the power when the battery level is low

All Features

Battery voltage
18 V
Max. cutting depth at 90°
66 mm
Number of batteries included
0
Weight
2,57 kg
Type of system case
Makpac IV
Supplied in
System case
Un number
Not applicable
Max. cutting depth at 45°
46 mm
Plunge saw
No
Max. cutting depth
66 mm
Saw blade diameter
165 mm
Lxt voltage
1
Product range
Makita LXT 18V
Weight with battery
3.0 - 3.4 kg
Vibration uncertainty (k factor), sawing wood
1.5 m/s²
Dust extraction connection ø inw/outw
25 / 31 mm
Max. chamfer range (right)
0 - 45 º
Electronic brake
1
Noise uncertainty (k-factor)
3 dB(A)
Blade diameter
165 mm
Shaft hole
20 mm
Battery chemical composition (nicd/nimh/li-ion)
Li-ion
Nominal battery voltage
18 V
Dimensions (l x w x h)
346 x 220 x 247 mm

Accessories

View more accessories (8)

Frequently asked questions about this product

Answered by specialists
Which battery is compatible with this circular saw?
The DHS630ZJ runs on all 18V Li-ion batteries from the Makita LXT platform.
Are a battery and charger included?
No, this tool is supplied as a bare unit in a Makpac IV case with a parallel guide and hex wrench, without battery and charger.
What is the maximum cutting depth of this saw?
The maximum cutting depth is 66 mm at 90° and 46 mm at 45°.
What saw blade diameter does this machine require?
This circular saw uses saw blades with a diameter of 165 mm.
Can this saw be used as a plunge saw?
No, this is a standard circular saw and is not designed for plunge cuts.
