Which batteries are compatible with this rotary hammer?

It requires two 18V LXT Li-ion batteries from Makita to deliver 36V. Batteries and charger are not included.

What is the maximum drilling capacity in concrete?

The maximum drilling diameter in concrete is 28 mm, with an impact energy of 2.9 J.

Is a quick-change chuck included?

Yes, in addition to the SDS-plus chuck, an interchangeable 13 mm quick-release chuck is included.

What operating modes are available on this tool?

It features three modes: drilling, hammer drilling, and light chiseling.

What is the purpose of the included Bluetooth unit?

The AWS Bluetooth chip enables automatic wireless startup of a compatible dust extractor when the tool runs.

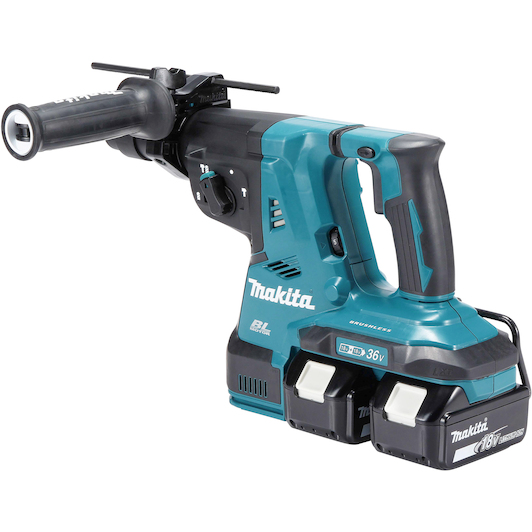

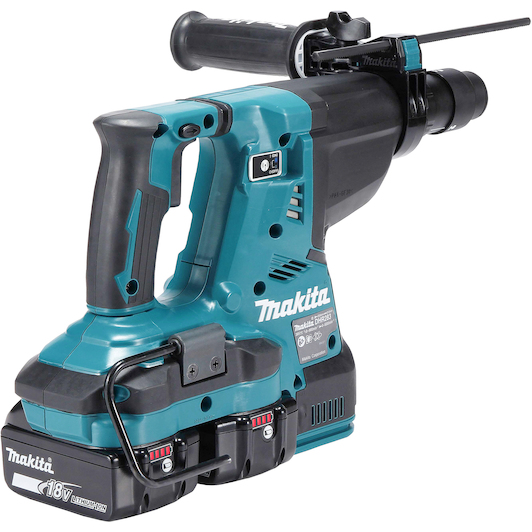

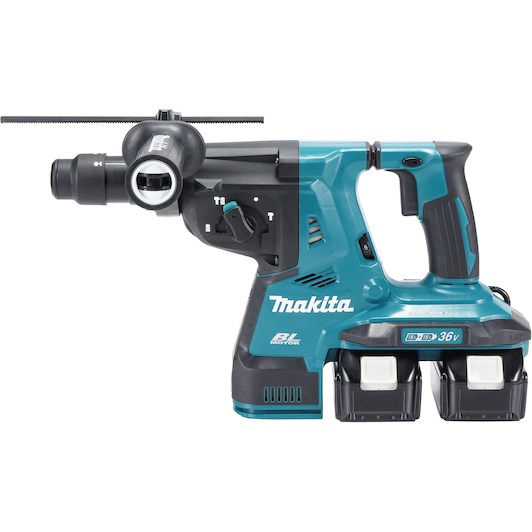

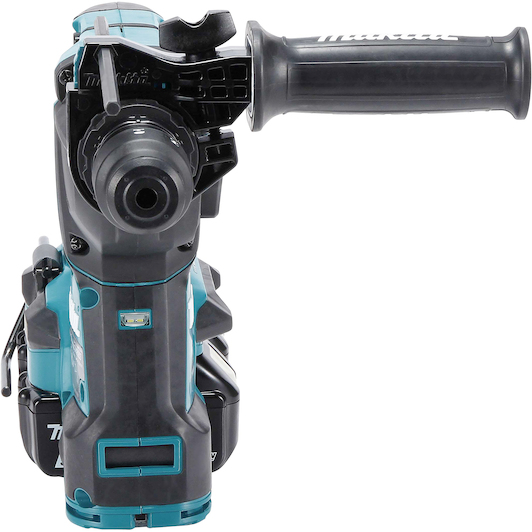

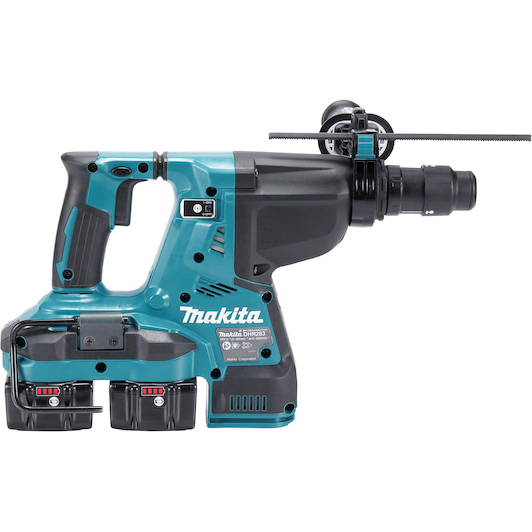

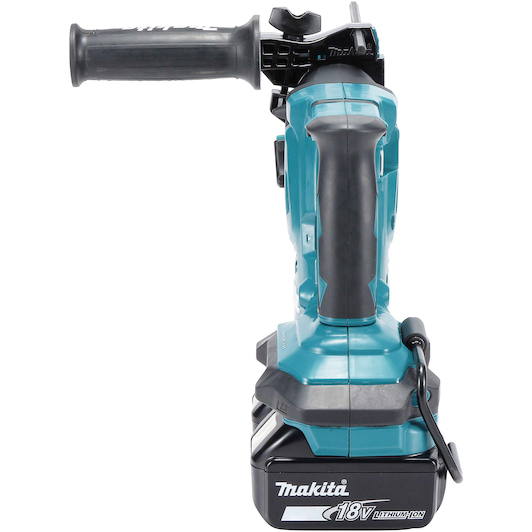

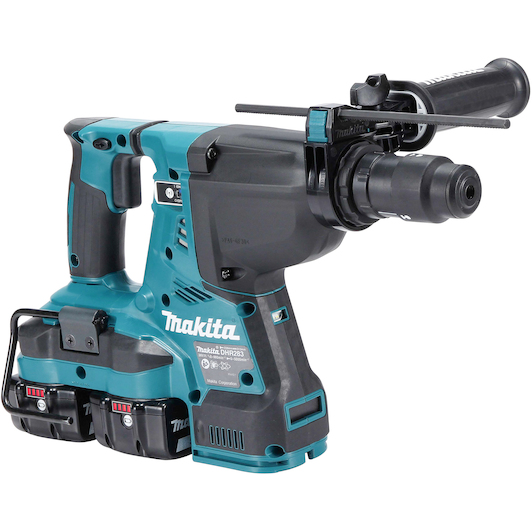

MAKITA DHR283ZWJU 2x18V LXT cordless combi hammer SDS-Plus 28mm + wireless unit dust extraction DX09 in MAKPAC IV (without battery and charger)

Name: MAKITA DHR283ZWJU 2x18V LXT cordless combi hammer SDS-Plus 28mm + wireless unit dust extraction DX09 in MAKPAC IV (without battery and charger)
Brand: MAKITA
SKU: 02937570
Price: 538.88 EUR
Availability: PreOrder

Supplier number: MAKITA DHR283ZWJU | EAN 0088381857895

Variant

Recommended Retail Price €676.84

538.88 tax incl.

€445.35 excl. VAT (incl. all environmental contributions)

On order: delivered from 08/10/2026

Delivery by DHL
Up to 5 years warranty on Makita after successful registration!

✆ Talk to a specialist

Powerful drilling with active dust control

Practical benefits

Heavy-duty cordless power: Powered by two 18V batteries, this tool delivers 2.9 J of impact energy for tough concrete.

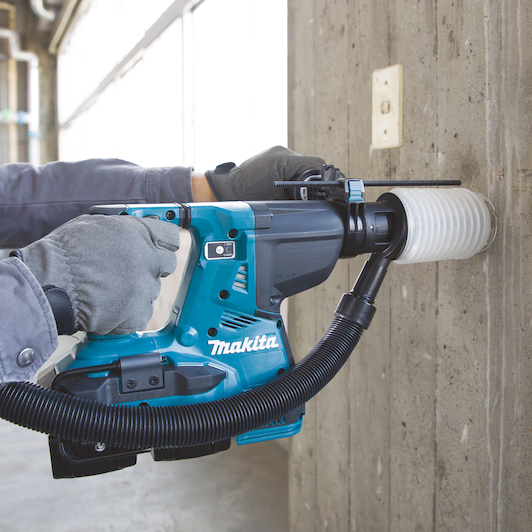

Automatic wireless dust extraction: Connect the wireless unit to your compatible vacuum to keep your working area clean and clear.
Versatile Makita chuck system: Quickly switch between the SDS-plus holder and the keyless chuck for drilling in wood or metal.

In a nutshell

The right choise for

With the Makita DHR283ZWJU cordless combination hammer, you get the punch of corded power with total jobsite freedom. Driven by two 18V lxt batteries to deliver 36V, it produces 2.9 j of impact energy to drill up to 28 mm in concrete with ease. The active anti-vibration system keeps fatigue low during demanding drilling and chiseling tasks. Easily switch from SDS-Plus to wood or metal drilling using the included interchangeable quick-release chuck. With the included aws Bluetooth chip, your compatible dust extractor starts automatically when the tool runs, keeping your workspace clean. Delivered in a robust Makpac IV case without batteries or charger.

Product information Accessories FAQ

€538.88

tax incl.

Key features according to our expert

Battery voltage: 2 x 18 V
Max. impact rate: 5000 /min.
Number of batteries included: 0
UN number: Not applicable
Type of system case: Makpac IV
Supplied in: System case
Anti-vibration system: Yes
Vibration value (drilling in concrete): 13,3 m/s²
Vibration value (chiselling in concrete): 9,3 m/s²
Weight: 5,5 kg
Min. impact rate: 0 /min.
Max. drilling diameter (steel): 13 mm
Max. drilling diameter (wood): 32 mm
Max. drilling diameter (concrete): 28 mm
Impact energy: 2,9 J
With keyless chuck: Yes
Tool holder type: SDS-plus
With dust extraction system: No
Product Range: Makita LXT 18V

Scope of delivery

1 x 198900-7 Bluetooth chip
1 x 198993-4 Grease container for bit 100 ml
1 x 199138-7 Drill chuck
1 x 199139-5 Quick-clamping drill bit set 13 mm, 1/2", 1.5 - 13 mm
1 x 331886-4 Depth gauge
1 x 443122-7 Cleaning cloth
1 x 821552-6 Makpac case IV
1 x 835A32-2 Inner drawer (4)

Product description

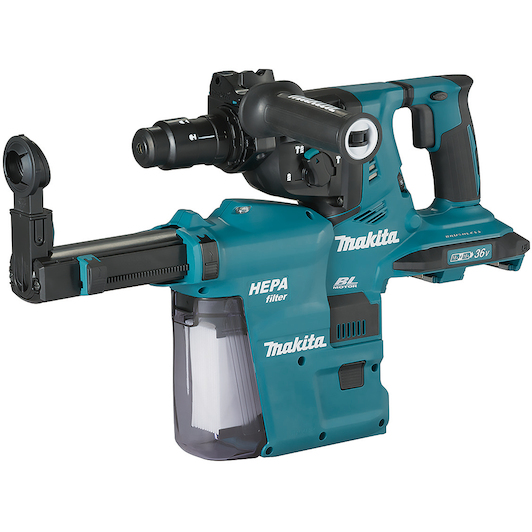

Brushless three-position combi hammer, anti-vibration, with dust extraction kit and support for automatic remote dust extraction start

An efficient tool with AVT (anti-vibration technology), dust extraction kit and support for remote dust extraction start, suitable for SDS-PLUS bits. Two 18 V LXT® batteries provide a high voltage of 36 V. For impact and normal drilling and chiselling. Impact energy of 2.9 J and maximum capacity of 28 mm in concrete. Tool in MakPac case, battery and charger not included.

LED lamp illuminates the workplace
Battery protection circuit protects against overload, over-discharge and overheating
Ergonomic frame design ensures a good working position.
Maintenance-free brushless motor with long service life
36V performance through two 18V batteries connected in series. The batteries are placed in parallel in separate battery docking stations.
Interchangeable drill head for quick changeover to wood and metal drilling.
Equipped with 3 modes: drilling, hammer drilling or hammering only

All Features

Battery voltage: 2 x 18 V
Max. impact rate: 5000 /min.
Number of batteries included: 0
Un number: Not applicable
Type of system case: Makpac IV
Supplied in: System case
Anti-vibration system: Yes
Vibration value (drilling in concrete): 13,3 m/s²
Vibration value (chiselling in concrete): 9,3 m/s²
Weight: 5,5 kg
Min. impact rate: 0 /min.
Max. drilling diameter (steel): 13 mm
Max. drilling diameter (wood): 32 mm
Max. drilling diameter (concrete): 28 mm
Impact energy: 2,9 J
With keyless chuck: Yes
Tool holder type: SDS-plus
With dust extraction system: No
Electronic brake: 1
Brushless motor: 1
Max. drilling diameter in wood: 32 mm
Aws compatible: 1
Vibration level, hammer drilling in concrete: 13.3 m/s²
Vibration uncertainty (k factor), drilling in metal: 1.5 m/s²
Vibration level, chiselling: 9.3 m/s²
Vibration level, drilling in metal: 2.5 m/s²
Vibration uncertainty (k factor), chiselling: 2.4 m/s²
Weight with battery: 4.0 - 4.9 kg
Product range: Makita LXT 18V
Optimal drilling diameter in concrete: 6 - 20 mm
Noise uncertainty (k-factor): 3 dB(A)
Dimensions (l x w x h): 404 x 134 x 232 mm
Max. drilling diameter in concrete: 28 mm
Max. drilling diameter in steel: 13 mm
Lxt voltage: 1
Nominal battery voltage: 2 x 18 V
Stroke energy: 2,9 J
Drilling diameter with tct core drill bit: 54 mm
Suitable for sds-plus bits: 1
Battery chemical composition (nicd/nimh/li-ion): Li-ion

Brand MAKITA
02937570
EAN 0088381857895
Supplier number MAKITA DHR283ZWJU
Warranty Up to 5 years warranty on Makita after successful registration!

Accessories

MAKITA 194079-2 quick-change drill chuck 13 mm, 1/2" x 20 UNF

Recommended Retail Price €97.60

55.95

€46.24 excl. VAT

Delivery time average 4 days.

MAKITA 195179-1 dust cap set

10.90

€9.01 excl. VAT

Delivery time average 6 days.

MAKITA 199585-2 dust collection system DX09

Recommended Retail Price €174.20

107.95

€89.21 excl. VAT

Delivery time average 10 days.

Frequently asked questions about this product

Answered by specialists

Which batteries are compatible with this rotary hammer?: It requires two 18V LXT Li-ion batteries from Makita to deliver 36V. Batteries and charger are not included.
What is the maximum drilling capacity in concrete?: The maximum drilling diameter in concrete is 28 mm, with an impact energy of 2.9 J.
Is a quick-change chuck included?: Yes, in addition to the SDS-plus chuck, an interchangeable 13 mm quick-release chuck is included.
What operating modes are available on this tool?: It features three modes: drilling, hammer drilling, and light chiseling.
What is the purpose of the included Bluetooth unit?: The AWS Bluetooth chip enables automatic wireless startup of a compatible dust extractor when the tool runs.
