Which chucks are included in the scope of delivery?

You receive an SDS-Plus quick-change chuck and a 13 mm keyless chuck for wood and metal drill bits.

Is the DX07 dust extraction system included?

Yes, the DX07 dust collection system is included inside the Makpac IV case.

What functions does this combination hammer offer?

The tool features three operating modes: drilling, hammer drilling, and light chiselling.

Are a battery and charger included with this model?

No, this variant is supplied as a bare tool without an 18V LXT battery or charger.

What is the maximum drilling capacity in concrete?

The maximum drilling diameter in concrete is 24 mm.

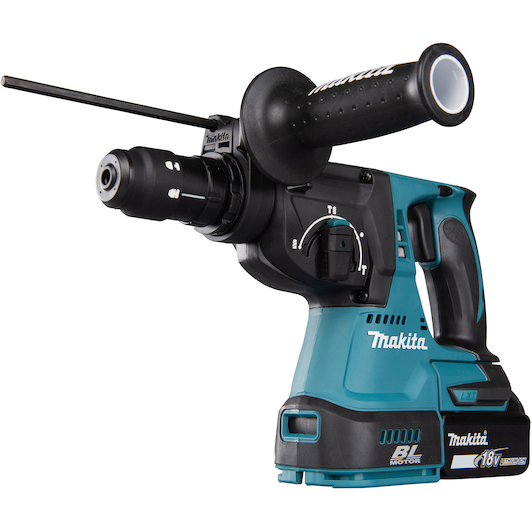

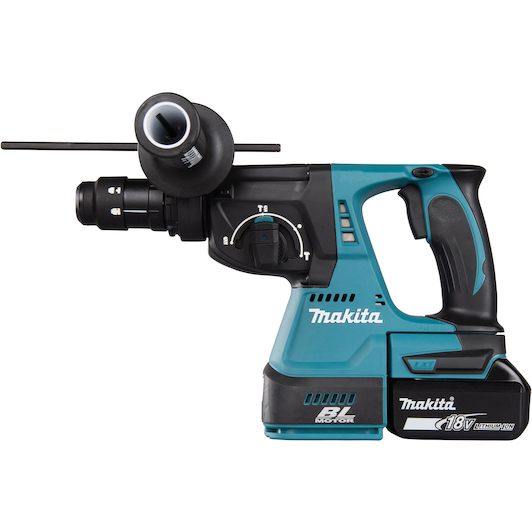

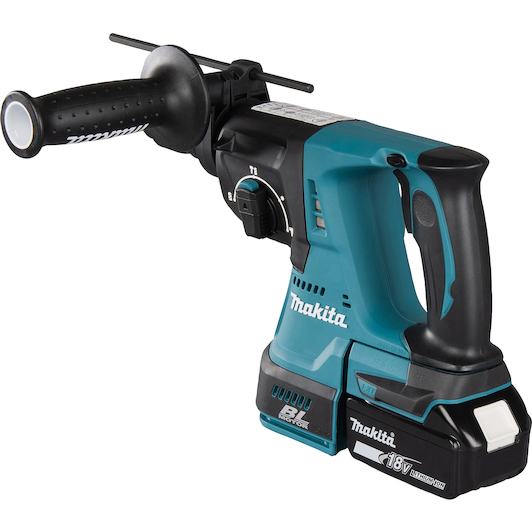

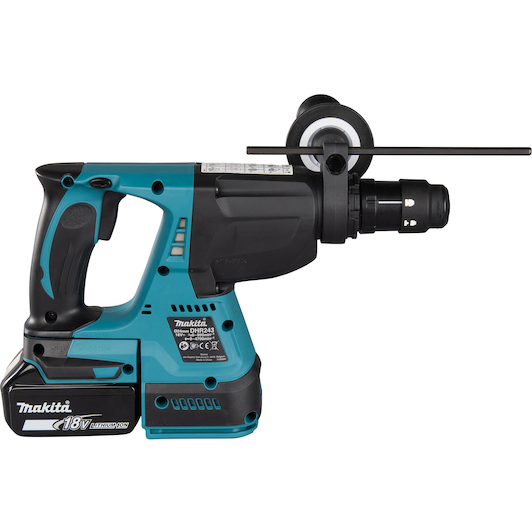

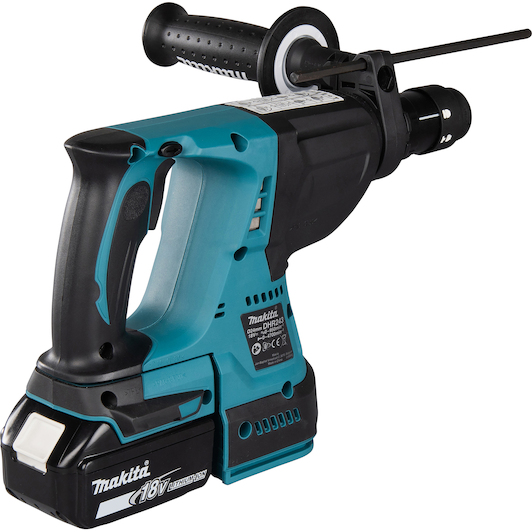

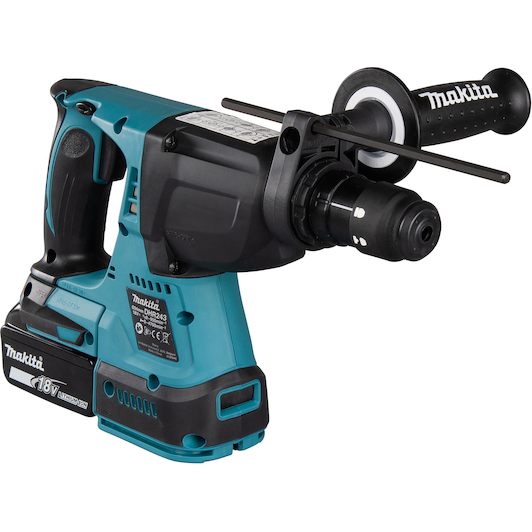

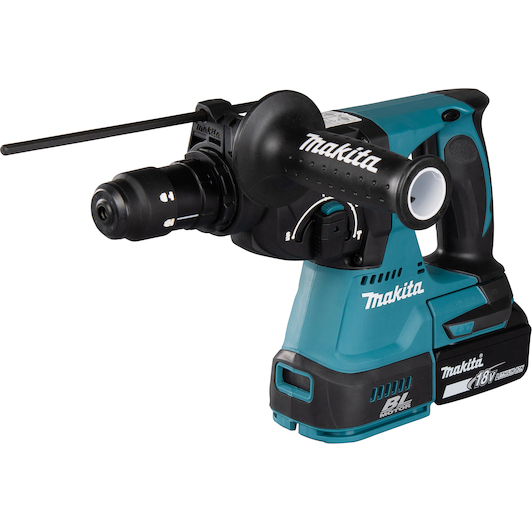

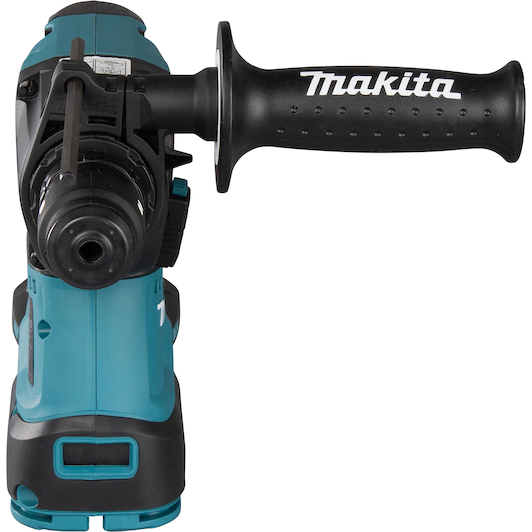

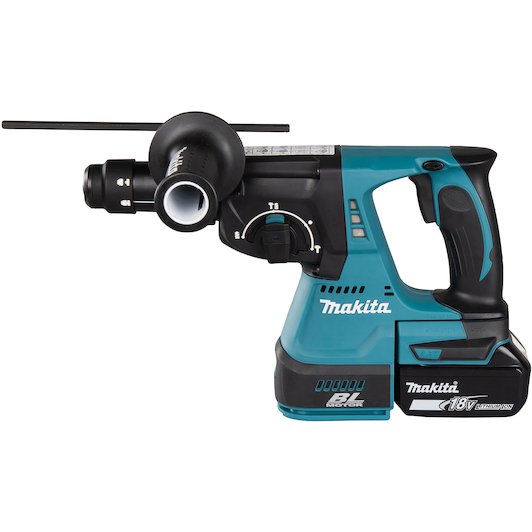

MAKITA DHR243ZJW 18V LXT cordless combi hammer SDS-Plus 24mm + dust extraction DX07 in MAKPAC IV (without battery and charger)

Name: MAKITA DHR243ZJW 18V LXT cordless combi hammer SDS-Plus 24mm + dust extraction DX07 in MAKPAC IV (without battery and charger)
Brand: MAKITA
SKU: 02946335
Price: 411.48 EUR
Availability: InStock
Rating: 10 (7 reviews)

Supplier number: MAKITA DHR243ZJW | EAN 0088381876193

Variant

7 review(s)

Recommended Retail Price €483.24

411.48 tax incl.

€340.06 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Delivery by DHL
Up to 5 years warranty on Makita after successful registration!

✆ Talk to a specialist

Versatile Makita rotary hammer for clean drilling

Practical benefits

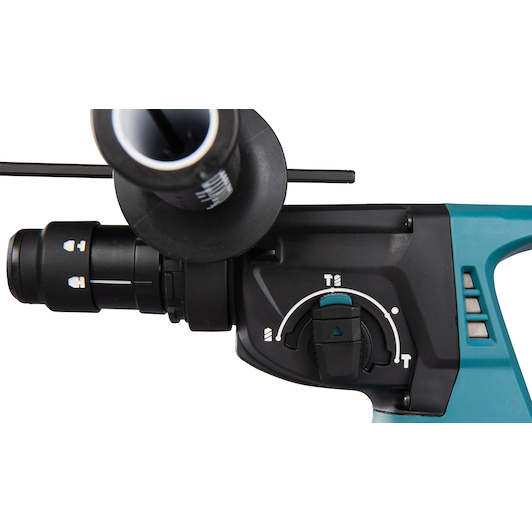

Three flexible operating modes: You easily switch between rotary drilling, hammer drilling, and light chiselling across various tough construction materials.

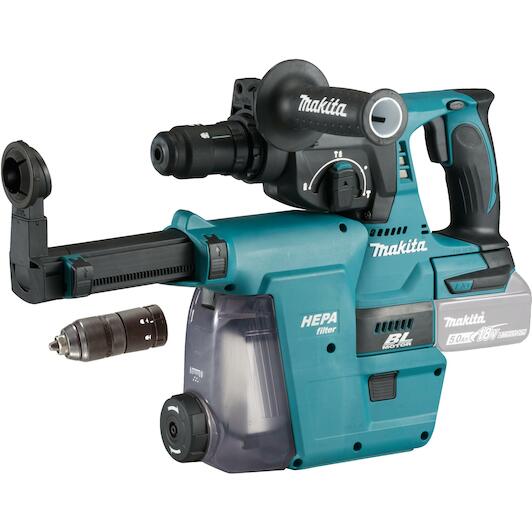

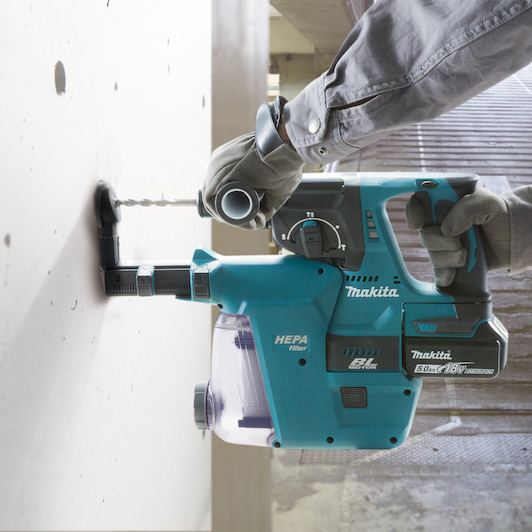

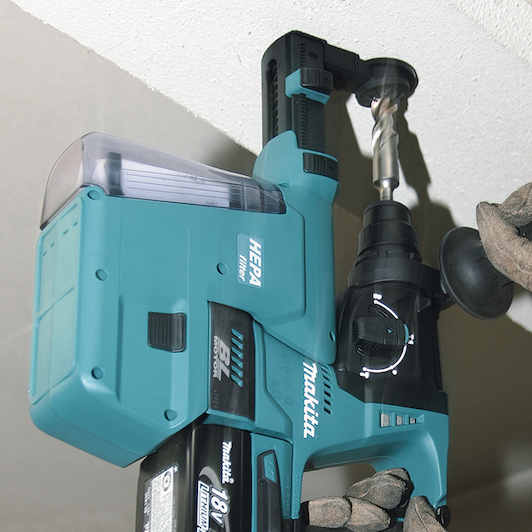

Integrated dust extraction system: The included DX07 attachment extracts dust directly at the drill hole, keeping your work environment clean.

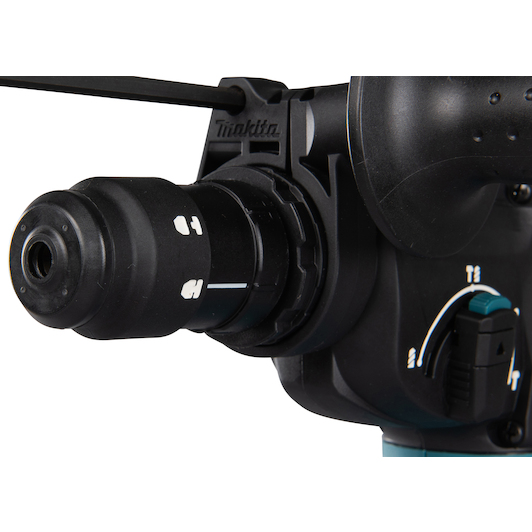

Quick-change chuck versatility: With the interchangeable chuck mechanism, you rapidly swap between SDS-Plus bits and standard straight-shank accessories.

In a nutshell

The right choise for

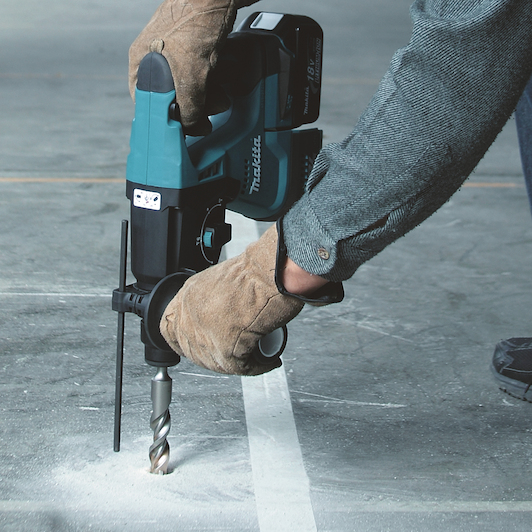

With the Makita DHR243ZJW cordless combination hammer, you tackle demanding drilling and chiselling jobs without creating dust. Powered by 18V lxt battery power, it delivers 2 j of impact energy to drill up to 24 mm in concrete. The included DX07 dust extraction system captures drilling debris directly at the source, making it ideal for indoor installations and finished living areas. Easily switch between rotary drilling, hammer drilling, and light chiselling. The included 13 mm quick-change keyless chuck allows swift swaps from SDS-Plus to standard bits for drilling up to 27 mm in wood and 13 mm in steel, all securely stored in the Makpac IV case.

Product information Accessories FAQ Reviews

€411.48

In stock - tax incl.

Key features according to our expert

Battery voltage: 18 V
Max. impact rate: 4700 /min.
Number of batteries included: 0
UN number: Not applicable
Type of system case: Makpac IV
Supplied in: System case
Anti-vibration system: No
Vibration value (drilling in concrete): 15,8 m/s²
Vibration value (chiselling in concrete): 11,2 m/s²
Weight: 4,7 kg
Min. impact rate: 0 /min.
Max. drilling diameter (steel): 13 mm
Max. drilling diameter (wood): 27 mm
Max. drilling diameter (concrete): 24 mm
Impact energy: 2 J
With keyless chuck: Yes
Tool holder type: SDS-plus
With dust extraction system: Yes
Product Range: Makita LXT 18V

Scope of delivery

1 x 194079-2 Quick-change drill bit head 13 mm, 1/2" - 20UNF
1 x 194080-7 Quick-change drill bit head for SDS-PLUS
1 x 199570-5 Dust collection system DX07

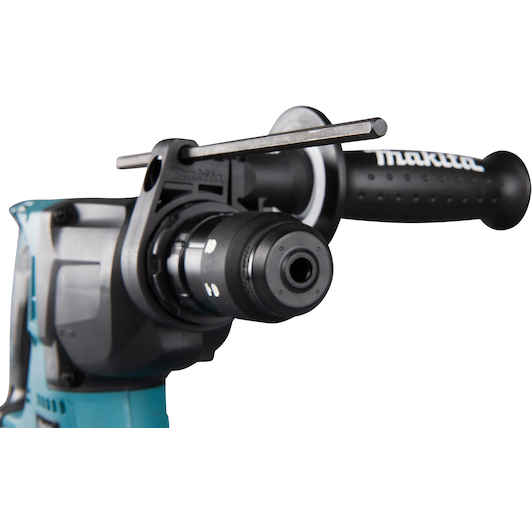

1 x 324219-0 Depth gauge
1 x 821552-6 Makpac case IV
1 x 835A31-4 MakPac (4)-inlay

Product description

Brushless combi hammer with three settings and quick-clamping drill head

An efficient combi hammer with a handle with vibration damping for SDS-PLUS bits. Suitable for impact and normal drilling, plus chiselling. Speed range of 0 - 950 min¯¹. Impact energy of 2.0 J and maximum drilling capacity of 24 mm in concrete. Dust extractor DX07 and MakPac case included.

40-fold adjustment of the chisel
Battery protection circuit protects against overload, over-discharge and overheating
Maintenance-free brushless motor with long service life

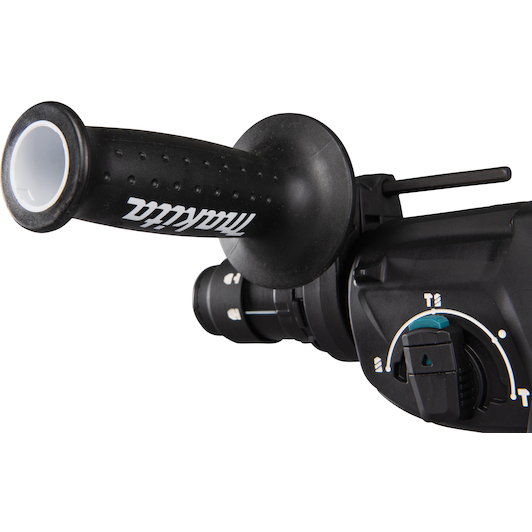

Equipped with 3 modes: drilling, hammer drilling or hammering only

All Features

Battery voltage: 18 V
Max. impact rate: 4700 /min.
Number of batteries included: 0
Un number: Not applicable
Type of system case: Makpac IV
Supplied in: System case
Anti-vibration system: No
Vibration value (drilling in concrete): 15,8 m/s²
Vibration value (chiselling in concrete): 11,2 m/s²
Weight: 4,7 kg
Min. impact rate: 0 /min.
Max. drilling diameter (steel): 13 mm
Max. drilling diameter (wood): 27 mm
Max. drilling diameter (concrete): 24 mm
Impact energy: 2 J
With keyless chuck: Yes
Tool holder type: SDS-plus
With dust extraction system: Yes
Noise uncertainty (k-factor): 3 dB(A)
Electronic brake: 1
Brushless motor: 1
Max. drilling diameter in wood: 27 mm
Vibration level, hammer drilling in concrete: 15.8 m/s²
Vibration uncertainty (k factor), drilling in metal: 1.5 m/s²
Vibration level, chiselling: 11.2 m/s²
Vibration level, drilling in metal: 2.5 m/s²
Vibration uncertainty (k factor), chiselling: 1.5 m/s²
Product range: Makita LXT 18V
Max. drilling diameter in concrete: 24 mm
Optimal drilling diameter in concrete: 4 - 16 mm
Lxt voltage: 1
Battery chemical composition (nicd/nimh/li-ion): Li-ion
Suitable for sds-plus bits: 1
Drilling diameter with tct core drill bit: 54 mm
Stroke energy: 2,0 J
Nominal battery voltage: 18 V
Max. drilling diameter in steel: 13 mm
Dimensions (l x w x h): 353 x 85 x 213 mm

Brand MAKITA
02946335
EAN 0088381876193
Supplier number MAKITA DHR243ZJW
Warranty Up to 5 years warranty on Makita after successful registration!

Accessories

MAKITA P-80488 dust extraction adapter

Recommended Retail Price €23.20

13.20

€10.91 excl. VAT

Delivery time average 5 days.

MAKITA 195179-1 dust cap set

10.90

€9.01 excl. VAT

Delivery time average 6 days.

MAKITA 199557-7 HEPA filter

Recommended Retail Price €23.20

14.40

€11.90 excl. VAT

Delivery time average 3 days.

MAKITA 837649-1 MakPac (4)-inlay for DHR242 / DHR243

12.20

€10.08 excl. VAT

Delivery time average 6 days.

Frequently asked questions about this product

Answered by specialists

Which chucks are included in the scope of delivery?: You receive an SDS-Plus quick-change chuck and a 13 mm keyless chuck for wood and metal drill bits.
Is the DX07 dust extraction system included?: Yes, the DX07 dust collection system is included inside the Makpac IV case.
What functions does this combination hammer offer?: The tool features three operating modes: drilling, hammer drilling, and light chiselling.
Are a battery and charger included with this model?: No, this variant is supplied as a bare tool without an 18V LXT battery or charger.
What is the maximum drilling capacity in concrete?: The maximum drilling diameter in concrete is 24 mm.
