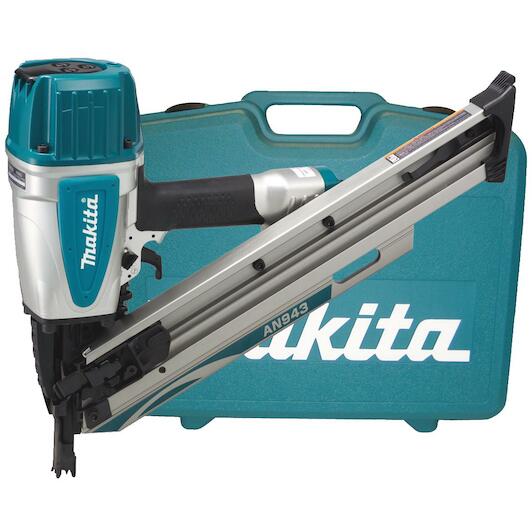

MAKITA AN943K construction nail gun 8 bar 90mm in case

Name: MAKITA AN943K construction nail gun 8 bar 90mm in case
Brand: MAKITA
SKU: 01049545
Price: 406.8 EUR
Availability: InStock
Rating: 10 (1 reviews)

Supplier number: MAKITA AN943K | EAN 0088381090490

1 review(s)

Recommended Retail Price €526.35

406.80 tax incl.

€336.20 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

✆ Talk to a specialist

Reliable framing with Makita

Practical benefits

Toolless driving depth adjustment: You easily adjust the nail depth with the thumbwheel to ensure flush finishes across demanding timber constructions.
Dual firing mode selection: You quickly switch between sequential actuation for precise placement and contact bump firing for fast-paced progress.
Built-in dry fire lockout: The mechanism automatically stops firing when the magazine runs low, preventing damage to your wooden workpiece.

In a nutshell

The right choise for

With the Makita AN943K pneumatic framing nailer, you secure heavy structural timber effortlessly without demanding manual hammering. Operating at a maximum working pressure of 8.3 bar, this framing gun drives clipped-head nails from 50 to 90 mm in length and 2.9 to 3.3 mm in diameter. The toolless depth adjustment ensures neat, flush fastening across timber frames, roof rafters, and pallet assembly. Switch smoothly between sequential mode for pinpoint accuracy and bump fire for rapid nailing progress. The built-in dry fire lockout automatically protects your workpiece from damage when nails run low. The nailer arrives complete with a plastic carrying case, nose adapter, and 30 ml oil.

Product information FAQ Reviews

€406.80

In stock - tax incl.

Key features according to our expert

Min. nail diameter: 2,9 mm
Min. nail length: 50 mm
Max. nail length: 90 mm
Max. working pressure: 8,3 bar
For nail with semi-circular head: Yes
For nail wit round head: No
Max. nail diameter: 3,3 mm

Scope of delivery

1 x 181434-7 Oil 30 ml
1 x 421677-2 Nose adapter
1 x 824841-8 Plastic carrying case

Product description

Fast and robust construction nailer for paper-bonded nails with 34° angle

A fast and robust construction nailer with depth adjustment for paper-bonded nails with angle of 34° for flat and recessed nailing. The tool can nail continuously or by touch.

Anti-dry shooting mechanism: the machine stops before the nail magazine is completely empty
Wide hanging hook, e.g. for scaffolding
Rubber coating on the handle ensures a firm grip
Easy depth adjustment
Nose with non-slip profile prevents slipping when nails are driven in at an angle
Sequential mode (nailing when pressing the trigger) or contact activation mode (nailing when pressing the nosepiece)

All Features

Min. nail diameter: 2,9 mm
Min. nail length: 50 mm
Max. nail length: 90 mm
Max. working pressure: 8,3 bar
For nail with semi-circular head: Yes
For nail wit round head: No
Max. nail diameter: 3,3 mm
Vibration uncertainty (k-factor): 1.5 m/s²
Nail length: 50 - 90 mm
Noise uncertainty (k-factor): 3 dB(A)
Capacity of fastener magazine: 60 - 84
Net product weight: 3.9 kg
Vibration level (3 axes): 3.5 m/s²
Depth adjustment: 1
Plastic carrying case: 1
Diameter nails: 2.9 - 3.3 mm
Charger angle: 34 º
Dimensions (l x w x h): 455 x 109 x 365 mm
Workload: 4.4 - 8.3 bar
Shape of the nail head: Hemisphere

Brand MAKITA
01049545
EAN 0088381090490
Supplier number MAKITA AN943K

Frequently asked questions about this product

Answered by specialists

Which nails are compatible with the Makita AN943K?: This framing nailer accepts clipped-head (D-head) nails with lengths from 50 to 90 mm and diameters from 2.9 to 3.3 mm. Full round-head nails are not compatible.
What operating air pressure does this framing nailer require?: The tool operates at a maximum working pressure of 8.3 bar. You need a suitable air compressor and hose to power it.
Can I use full round-head nails in this tool?: No, the nailer is designed specifically for clipped-head (half-round head) nails and does not support full round heads.
What is included in the scope of delivery?: You receive the pneumatic nailer, a plastic carrying case, 30 ml lubricating oil, and a nose adapter.
What applications is the Makita AN943K designed for?: It is built for heavy timber construction work such as timber framing, roof rafters, and pallet assembly.
