What is this crimping tool specifically designed for?

It is designed for parallel crimping of Molex LLC Mini-Fit series micro plugs.

Which wire sizes can be crimped with this tool?

It features 3 crimping positions suitable for wire capacities of AWG 16, 18, and 20 to 24.

What is the benefit of parallel crimping?

The parallel jaw motion delivers consistent pressure, which is essential for small micro connectors.

Is the crimping die interchangeable?

No, the crimping die is fixed and cannot be exchanged.

How does this tool ensure consistent crimp quality?

It features factory-calibrated crimp pressure and an unlockable ratchet mechanism for reliable results.

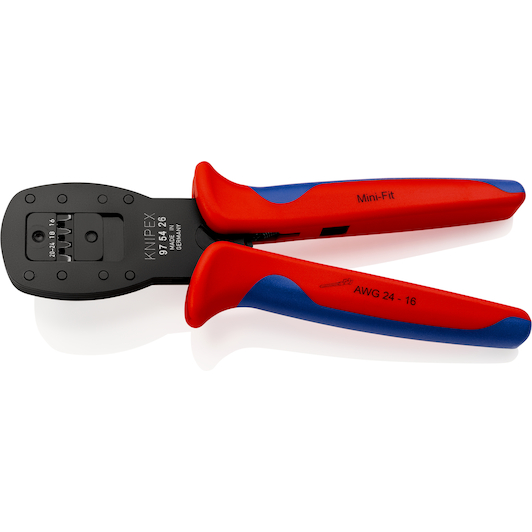

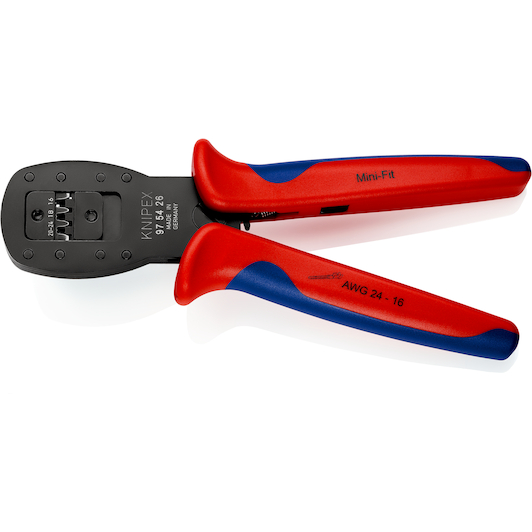

KNIPEX 97 54 26 crimping pliers for Mini-Fit miniature plugs browned with multi-component handles 190 mm

Name: KNIPEX 97 54 26 crimping pliers for Mini-Fit miniature plugs browned with multi-component handles 190 mm
Brand: KNIPEX
SKU: 03065437
Price: 294.8 EUR
Availability: PreOrder

Supplier number: KNIPEX 97 54 26 | EAN 4003773079866

Recommended Retail Price €478.25

294.80 tax incl.

€243.64 excl. VAT (incl. all environmental contributions)

On order: delivered from 28/10/2026

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Precision connections with Knipex crimper

Practical benefits

Accurate parallel jaw motion: You achieve straight and uniform crimping on delicate miniature connectors for optimal electrical performance.
Consistent calibrated crimping force: The integrated ratchet mechanism and factory-set pressure guarantee you reliable and repeatable results every cycle.
Reduced effort during operation: High leverage toggle transmission amplifies your hand force so you can work comfortably without hand fatigue.

In a nutshell

The right choise for

With the Knipex 97 54 26 crimping pliers, you achieve reliable and precise connections on delicate Molex Mini-Fit miniature connectors. The parallel jaw motion presses small contacts straight and uniformly, preventing misaligned or damaged crimp joints. a factory-calibrated crimping force combined with the unlockable ratchet mechanism guarantees consistent, repeatable quality across every cycle. Featuring 3 crimping profiles for awg 16, 18, and 20 to 24, this 190 MM tool is ideal for wire harness assembly, control panel building, and prototyping. The integrated toggle lever action boosts your hand force, allowing you to work through repetitive assembly tasks comfortably and without fatigue thanks to the ergonomic multi-component grips.

Product information FAQ

€294.80

tax incl.

Key features according to our expert

Pliers type: Cable lug crimping pliers
Overall length: 190 mm
Number of crimping profiles: 3

Product description

Parallel shrink jaws to meet the particularly high requirements of small connector types
Consistently high shrink quality thanks to precision jaws and forcing closure (unlockable)
Shrink pressure is set accurately at the factory (calibrated)
Increased power transmission thanks to knee lever design for effortless work
Crimping pliers for other miniature connectors, e.g. HD 22; Modu IV; Micro Timer; ... on request
Crimping insert is not exchangeable

Documents

⤓ Product sheet PDF

All Features

Pliers type: Cable lug crimping pliers
Overall length: 190 mm
Number of crimping profiles: 3
Use: to crimp plugs of the Mini-Fit® series from Molex LLC
Handle: with multi-component handle
Number of crimp profiles: 3
Reach compliance: contains SVHC
Rohs compliance: irrelevant
Weight: 305 g
Dimensions: 190 x 60 x 34 mm
Tang: burnished

Brand KNIPEX
03065437
EAN 4003773079866
Supplier number KNIPEX 97 54 26

Frequently asked questions about this product

Answered by specialists

What is this crimping tool specifically designed for?: It is designed for parallel crimping of Molex LLC Mini-Fit series micro plugs.
Which wire sizes can be crimped with this tool?: It features 3 crimping positions suitable for wire capacities of AWG 16, 18, and 20 to 24.
What is the benefit of parallel crimping?: The parallel jaw motion delivers consistent pressure, which is essential for small micro connectors.
Is the crimping die interchangeable?: No, the crimping die is fixed and cannot be exchanged.
How does this tool ensure consistent crimp quality?: It features factory-calibrated crimp pressure and an unlockable ratchet mechanism for reliable results.
