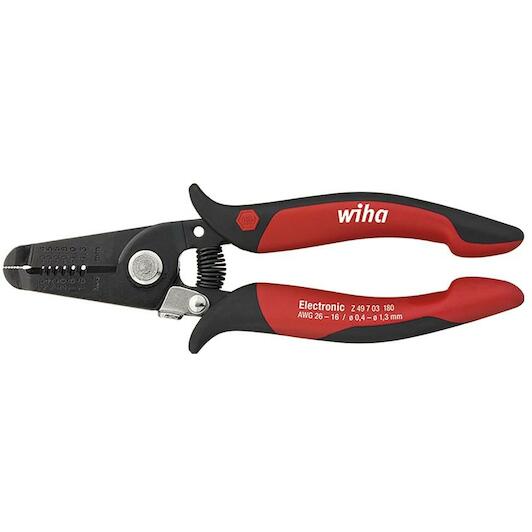

Product description
- Product dimensions: 58 x 20 x 52 mm (LxWxD)
- Application: For gripping, cutting and stripping of wires with diameter.
- Design: Wire stripping stations: 0,4 / 0.5 / 0.6 / 0.8 / 1.0 / 1.3 mm, AWG 26 / 24 / 22 / 20 / 18 / 16.
- Design: With opening spring and locking mechanism.
- Head shape: Wide, long head with ridged gripping surface, shears blade and firm wire stripping stations.
- Material: C 70 special tool steel.
Key features according to our expert
-
For min. cable cross-section: 0,4 mm²
-
With crimping function: Yes
-
For max. cable cross-section: 1,3 mm²
-
Adjustment type: Fixed settings
-
VDE approved: No
-
With cutting function: Yes
-
With automatic stripping function: No
-
Product Range: Wiha Electronic
Specifications / All features
-
Brand:
WIHA
-
08075863
-
EAN:
4010995334727
-
Supplier number:
WIHA 33472
- For min. cable cross-section
- 0,4 mm²
- With crimping function
- Yes
- For max. cable cross-section
- 1,3 mm²
- Adjustment type
- Fixed settings
- Vde approved
- No
- With cutting function
- Yes
- With automatic stripping function
- No
- Area stripped min - max (awg)
- 26 - 16
- Self service - packing
- No
- Area stripped min (awg)
- 26
- Area stripped, cross section min - max (mm²)
- 0.4 - 1.3
- With battery / rechargeable battery
- No
- Area stripped, cross section max (mm²)
- 1.3 mm²
- Area stripped, cross section min (mm²)
- 0.4 mm²
- Tool for electrics
- No
- Area stripped max (awg)
- 16
- Overall length (mm)
- 165 mm
- Overall length (inch)
- 6 1/2"
- Esd article
- No
- Product range
- Wiha Electronic
