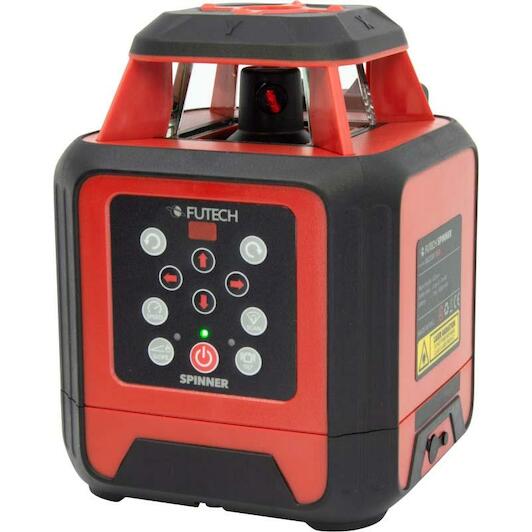

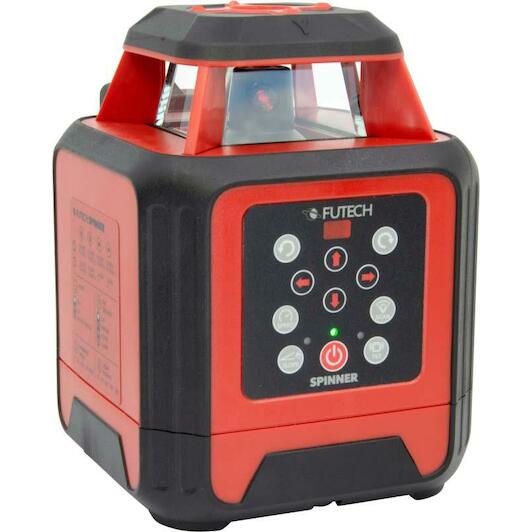

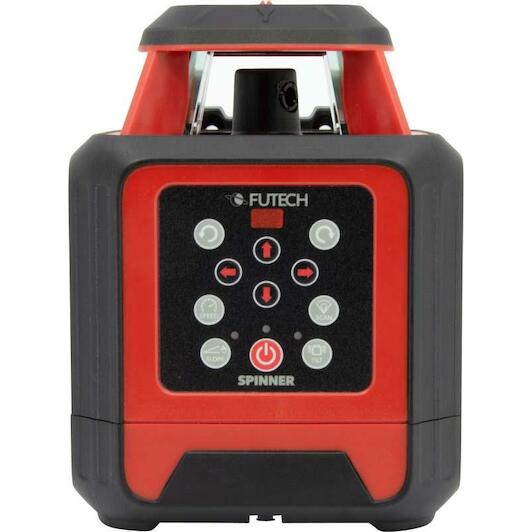

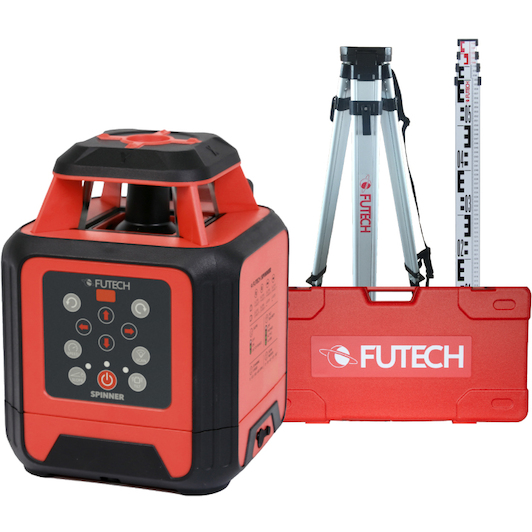

FUTECH SPINNER rotation laser red in case - 062.03R.CS

FUTECH
Supplier number: FUTECH 062.03R.CS | EAN 5420073803912
Recommended Retail Price €707.33
659.91 tax incl.
€545.38 excl. VAT (incl. all environmental contributions)
On order: delivered from 10/10/2026
set

  • Delivery by DHL
✆ Talk to a specialist

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

Accurate and versatile rotary laser

Practical benefits
  • Highly accurate measurements: The rotary laser offers an accuracy of 0.15 mm/m, ideal for precise alignment and leveling tasks.
  • Robust and weather-resistant design: With an IP55 protection class, this rotary laser is dust and water resistant, making it suitable for various working conditions.
  • Complete set for immediate use: The set includes a 136 cm aluminum tripod, a 230 cm telescopic staff, a remote control, and a case for transport and storage.

In a nutshell

The right choise for

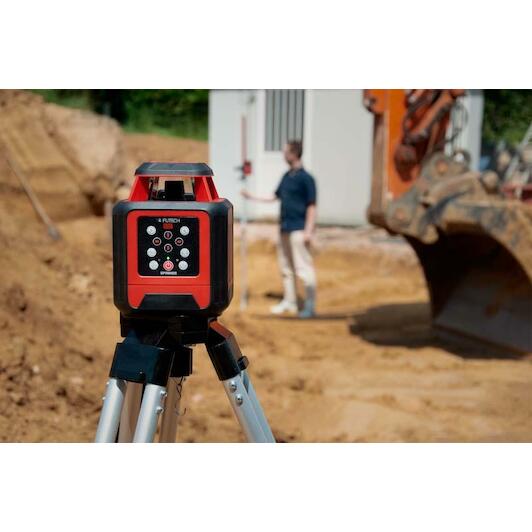

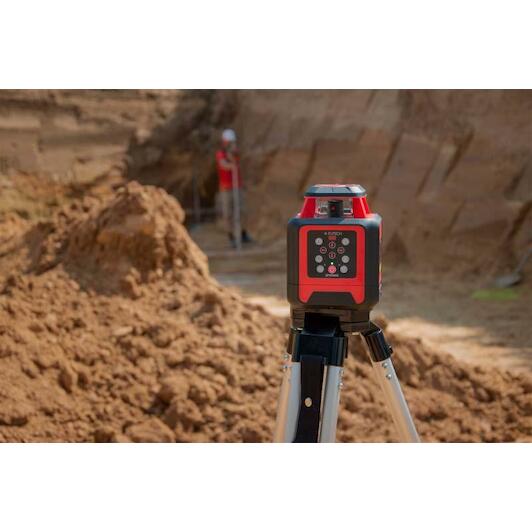

The Futech spinner rotary laser is your reliable partner for accurate leveling tasks. With an impressive accuracy of 0.15 mm/m and a self-leveling range of 5 degrees, you effortlessly project a horizontal or vertical circle. This robust laser, with IP55 protection, is dust and water resistant, ideal for any construction site. The complete set, including a 136 cm aluminum tripod, a 230 cm telescopic staff, and a remote control, ensures you can immediately start with foundations, ceilings, or excavation work.



Product information Accessories FAQ
€659.91
tax incl.

Product information

Key features according to our expert

  • Laser type: Rotating laser
  • Weight: 1,38 kg
  • With tripod: Yes
  • Projection (laser beams): circle horizontal or vertical
  • Self-levelling range: 5,0000 °
  • Number of points: 2
  • Tripod thread: 5/8"
  • Type of system case: Not applicable
  • Protection class IP: IP55
  • Laser class: Class 2
  • Accuracy: 0,15 mm/m
  • Colour (laser beams): Red
  • Max. range with receiver: 2x 250 m
  • Supplied in: Case

Scope of delivery

  • 062.03R.CS - Spinner Red case set
  • H052.CAS -Red case for Para / Para DS / Para One
  • 180.30 -Magnetic target plate Red
  • 180.10 -Laser glasses Red
  • H062.CHR -Charger (Spinner)
  • H7002 -Functional remote control for Spinner
  • 100.136 -Stand Aluminium 136cm - 5/8
  • 140.230 -Telescopic staff 230cm

Product description

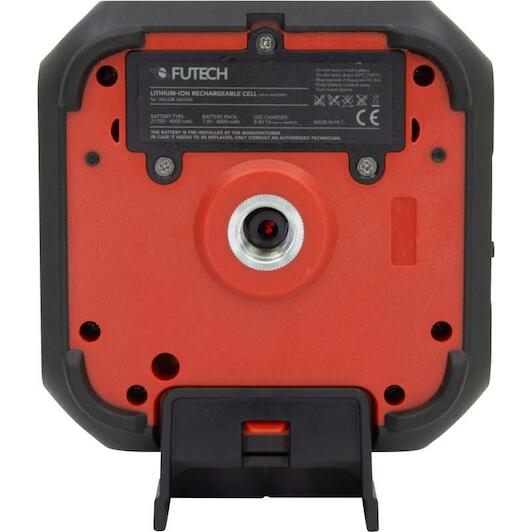

  • Accuracy: 1.5mm / 10m - Range (with receiver): 2x 250m - Dust and water resistance: IP55 - Battery: LI-ION 7.4V - 2x 4000mAh - Levelling: Motorised levelling

All Features

Laser type
Rotating laser
Weight
1,38 kg
With tripod
Yes
Projection (laser beams)
circle horizontal or vertical
Self-levelling range
5,0000 °
Number of points
2
Tripod thread
5/8"
Type of system case
Not applicable
Protection class ip
IP55
Laser class
Class 2
Accuracy
0,15 mm/m
Colour (laser beams)
Red
Max. range with receiver
2x 250 m
Supplied in
Case
Transport protection for the pendulum
Not applicable
Number of 90° angles
4
Number of vertical lines
Not applicable
Charger integrated in mains connection
Yes
Tilt function
Yes
Dust and water resistance
IP55
Range (with receiver)
2x 250m
Number of laser points per line
Not applicable
Leveling
Motor levelling
Number of laser diodes
2
Colour laser beams
Red
Maximum adjustable inclination (x-axis / y-axis)
±10%
Slope function
Manual + Electronic
Laser frequency (in receiver mode)
Not applicable
Mains connection
Yes
Remote control
Infrared
Pendulum lock (for manual ramps)
Not applicable
Plumb
Yes

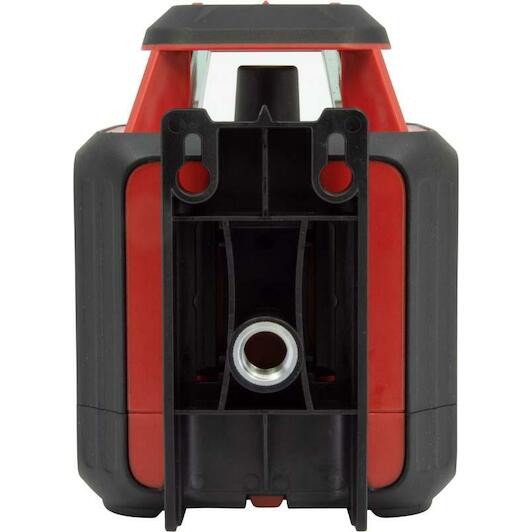

Built-in screw for tripod
5/8"

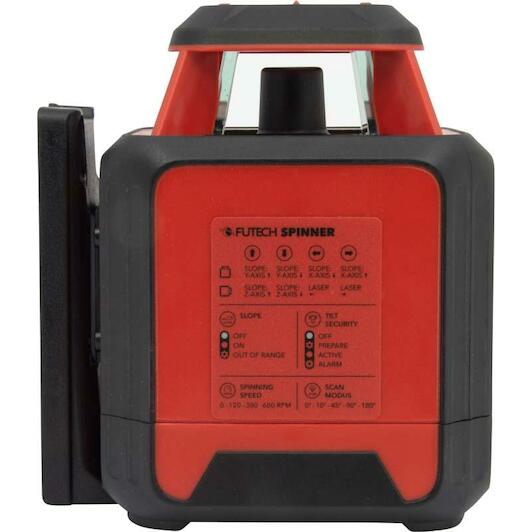

Scan function
0°, 10°, 45°, 90°, 180°
Rotations per minute
0, 120, 300, 600 RPM
Number of horizontal lines
Not applicable
  • Brand FUTECH
  • EAN 5420073803912
  • Supplier number FUTECH 062.03R.CS

Accessories

View more accessories (17)

Frequently asked questions about this product

Answered by specialists
What is the accuracy of the Futech SPINNER rotary laser?
The Futech SPINNER rotary laser has an accuracy of 0.15 mm/m.
Can I use this rotary laser horizontally and vertically?
Yes, the Futech SPINNER rotary laser projects a circle horizontally or vertically.
What is the maximum range of the laser with a receiver?
With a receiver, the Futech SPINNER rotary laser has a maximum range of 2x 250 meters.
What accessories are included with the Futech SPINNER rotary laser in a case set?
The set comes with a red case, magnetic target plate red, laser glasses red, charger, remote control, aluminum tripod 136 cm, and a telescopic staff 230 cm.
Is the Futech SPINNER rotary laser dust and water resistant?
Yes, the rotary laser has an IP55 protection class, meaning it is dust and water resistant.
