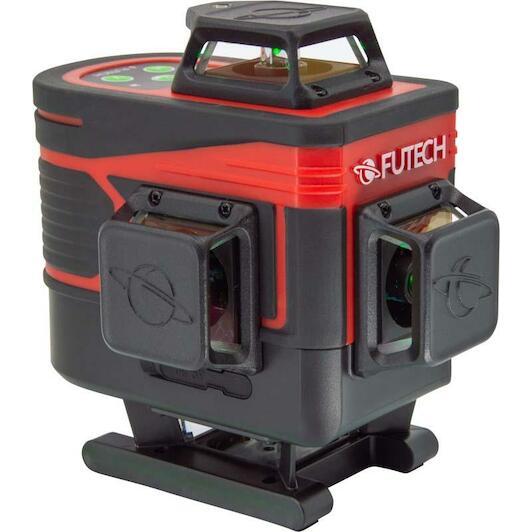

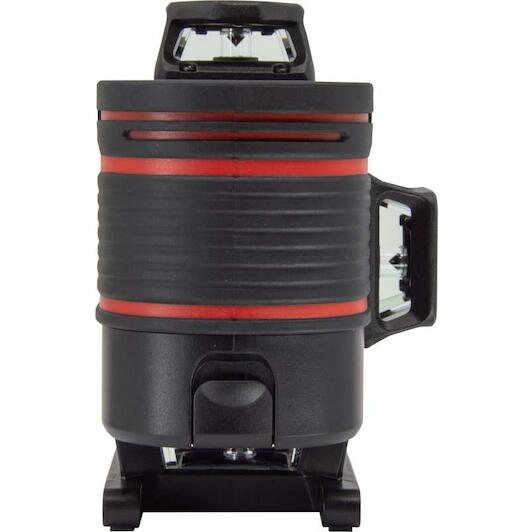

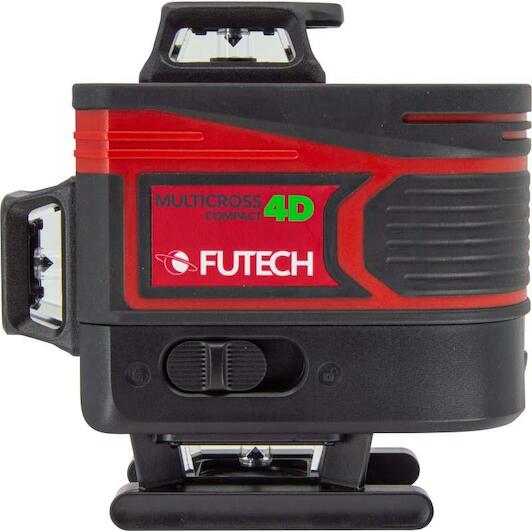

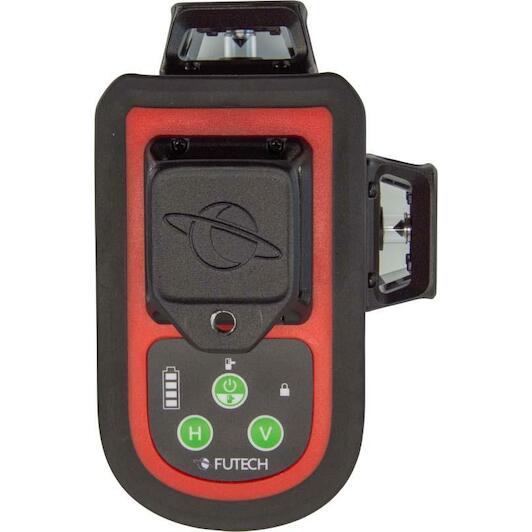

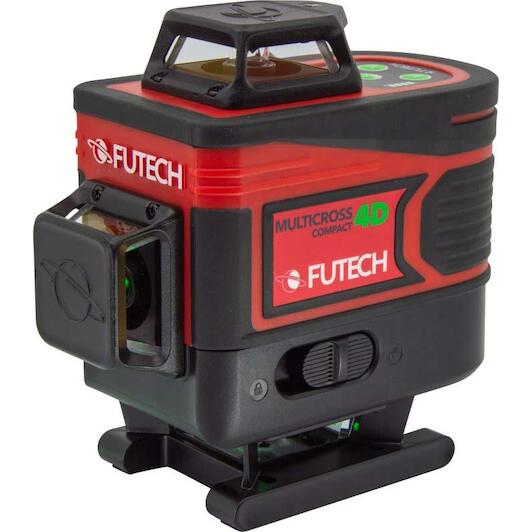

FUTECH MultiCross 4D Compact green cross line laser in case - 035.4DG

FUTECH
Supplier number: FUTECH 035.4DG | EAN 5420073804797
470.14 tax incl.
€388.55 excl. VAT (incl. all environmental contributions)
On order: delivered from 08/10/2026

  • Delivery by DHL
✆ Talk to a specialist

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

Futech MultiCross 4D Compact cross-line laser for accurate alignment

Practical benefits
  • Highly accurate laser lines: The Futech MultiCross 4D Compact projects laser lines with an accuracy of 0.2 mm/m, perfect for precision tasks.
  • Extended range with receiver: Work efficiently over longer distances with a maximum range of 150 m when using a receiver.
  • Flexible 360-degree projection: With 3x 360° laser lines, including one horizontal and two vertical, you can easily project all necessary reference lines.

In a nutshell

The right choise for

The Futech MultiCross 4D Compact cross-line laser projects with an accuracy of 0.2 mm/m and a range of up to 150 meters with a receiver, ensuring precise work every time. You get 3x 360° green laser lines, one horizontal and two vertical, for a complete reference on every wall. It comes in a case with two Li-Ion batteries, a charger, a usb-c cable, a remote control, a magnetic target plate, and a magnetic wall mount, so you can start any alignment task immediately.



Product information Accessories FAQ
€470.14
tax incl.

Product information

Key features according to our expert

  • Laser type: Cross line laser
  • Type of system case: Not applicable
  • Tripod thread: 1/4"; 5/8"
  • Projection (laser beams): 3x 360°, 1 horizontal, 2 vertical
  • Self-levelling range: 4,0000 °
  • Weight: 0,61 kg
  • With tripod: No
  • Supplied in: Case
  • Laser class: Class 2
  • Accuracy: 0,2 mm/m
  • Colour (laser beams): Green
  • Max. range with receiver: 150 m
  • Protection class IP: IP54

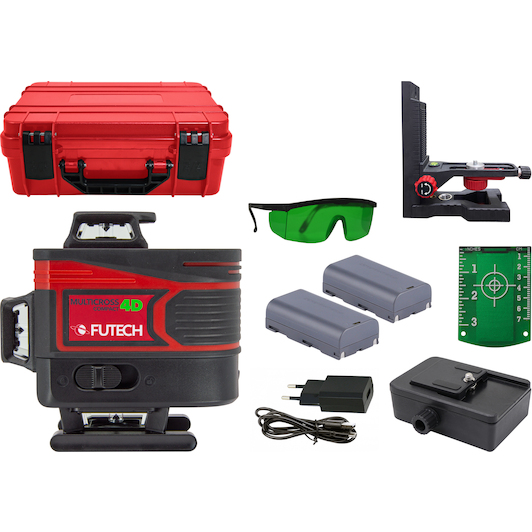

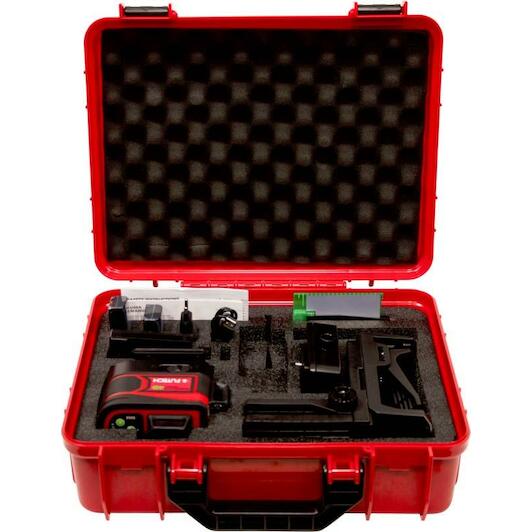

Scope of delivery

  • 035.4DG - Multicross 4D Compact Green
  • HCASE.3DC -Small case for MC3D Compact / MC4D Electronic
  • 180.20 -Magnetic target plate green

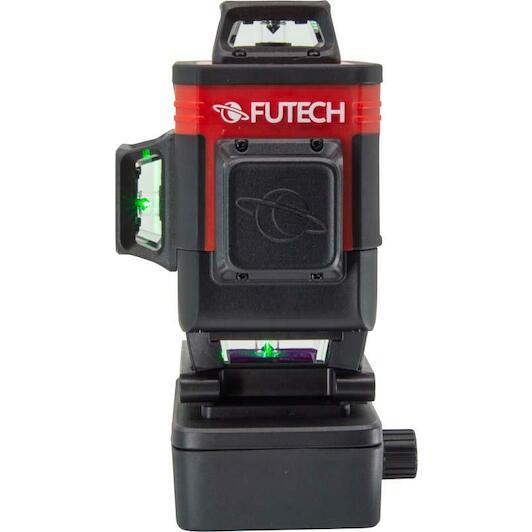

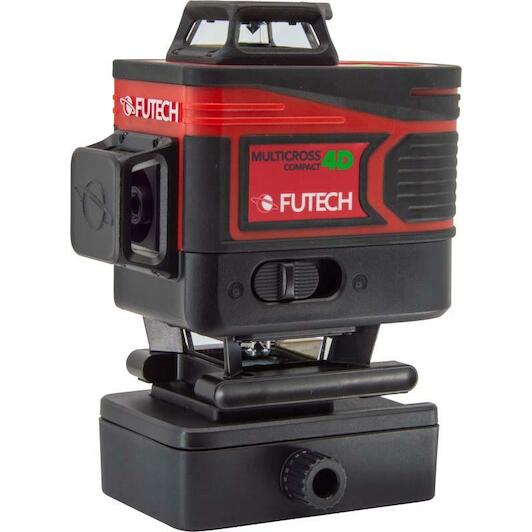

  • H035.TUR -Turntable for 035.3DG 035.3DR 035.4DG
  • H60033 -Charger + USB-C cable
  • 2XH60028 -2 Li-Ion Batteries 7.4V 2600mAh
  • H035.RCO -Remote control for MC3D Compact
  • H60027U -Battery holder with USB-C
  • 130.19 -Magnetic Wall Holder

Product description

  • 3D Cross line laser with 1 green horizontal line all around and 2 vertical lines all around (= plumb above and below + 4 90° angles).
  • Pendulum levelling with 2mm/10m accuracy.
  • Supplied with multi-functional magnetic wall holder.
  • With 2 Li-Ion batteries (1 spare battery) + AC adapter/charger.

All Features

Laser type
Cross line laser
Type of system case
Not applicable
Tripod thread
1/4"; 5/8"
Projection (laser beams)
3x 360°, 1 horizontal, 2 vertical
Self-levelling range
4,0000 °
Weight
0,61 kg
With tripod
No
Supplied in
Case
Laser class
Class 2
Accuracy
0,2 mm/m
Colour (laser beams)
Green
Max. range with receiver
150 m
Protection class ip
IP54
Number of 90° angles
4
Number of vertical lines
4
Charger integrated in mains connection
Yes
Visibility
5
Range (with receiver)
2x 150m
Dust and water resistance
IP54
Leveling
Pendulum levelling
Autonomy (with all laser diodes on)
± 8h
Colour laser beams
Green
Maximum adjustable inclination (x-axis / y-axis)
+/- 45°
Slope function
Manual
Transport protection for the pendulum
Yes
Pendulum lock (for manual ramps)
Yes
Number of laser diodes
4
Laser frequency (in receiver mode)
10KHz
Remote control
Yes
Plumb
Yes
Built-in screw for tripod
1/4" (& 5/8")
Rotations per minute
Not applicable
Mains connection
USB-C
Number of horizontal lines
4
  • Brand FUTECH
  • EAN 5420073804797
  • Supplier number FUTECH 035.4DG

Accessories

View more accessories (15)

Frequently asked questions about this product

Answered by specialists
What is the accuracy of the Futech MultiCross 4D Compact cross-line laser?
The accuracy of this cross-line laser is 0.2 mm/m.
What laser beams does the Futech MultiCross 4D Compact project?
The laser projects 3x 360° laser beams: 1 horizontal and 2 vertical lines.
What is the maximum range with a receiver?
With a receiver, the Futech MultiCross 4D Compact has a maximum range of 150 m.
Is a tripod included with the Futech MultiCross 4D Compact?
No, a tripod is not included as standard.
What is the IP protection class of this cross-line laser?
The Futech MultiCross 4D Compact has an IP54 protection class, meaning it is dust and splash-water resistant.
