Which machine is this knock-down connector compatible with?

These connectors are designed for use with the Festool DF 500 joiner using a D8 cutter.

What panel thickness range does this connector fit?

This corner connector is suitable for panel thicknesses from 18 to 28 mm.

How does this connector work with a series of holes?

The Euro-threaded bolt screws directly into a 5 mm hole in the LR 32 hole drilling pattern.

Are furniture joints made with this system detachable?

Yes, the DOMINO connector system allows furniture to be assembled, dismantled, and reassembled repeatedly.

What is included in the Festool 203168 pack?

The pack contains 50 split anchors, 50 Euro-threaded bolts, 50 plastic trays, and 50 cross anchors with threaded pins.

FESTOOL KV-LR32 D8/50 angle coupling for DF 500 - 203168

Name: FESTOOL KV-LR32 D8/50 angle coupling for DF 500 - 203168
Brand: FESTOOL
SKU: 03172599
Price: 92.4 EUR
Availability: PreOrder

Supplier number: FESTOOL 203168 | EAN 4014549302767

Recommended Retail Price €126.82

92.40 tax incl.

€76.36 excl. VAT (incl. all environmental contributions)

On order: delivered from 20/10/2026

set

Delivery by DHL

✆ Talk to a specialist

Consumables

FESTOOL D 8X36/130 BU DOMINO dowels beech (130 pcs) - 203175

Recommended Retail Price €23.85

20.80

€17.19 excl. VAT

On stock, immediately available.

FESTOOL KV-AK D15 brn/50 cover - 203171

9.98

€8.25 excl. VAT

Delivery time average 13 days.

FESTOOL KV-AK D15 gr/50 cover - 203174

9.98

€8.25 excl. VAT

Delivery time average 11 days.

FESTOOL KV-AK D15 slr/50 cover - 203172

Recommended Retail Price €18.48

15.20

€12.56 excl. VAT

Delivery time average 13 days.

Detachable Festool corner joints

Practical benefits

Knock-down joinery made easy: You quickly assemble and dismantle furniture for seamless transport without wearing out the structural joints.
High routing tolerance compensation: The connector compensates for cutting and routing tolerances up to 1.4 mm to ensure perfectly aligned cabinet panels.

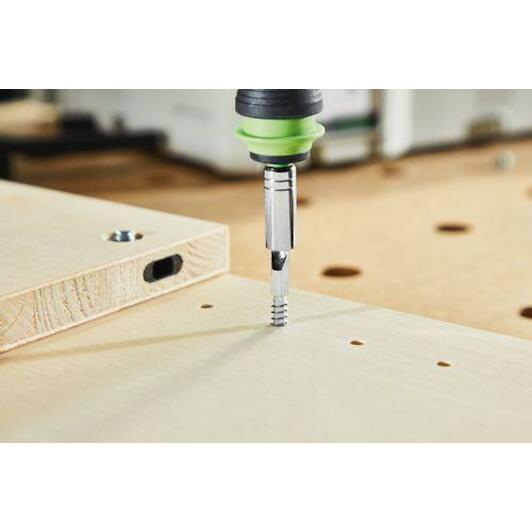

Direct fitting in series: You thread the bolts directly into 5 mm hole series and mill the base part using the DF 500.

In a nutshell

The right choise for

With the Festool 203168 KV-LR32 D8/50 corner connector, you build strong, detachable cabinet carcasses that are easy to assemble and take apart for flat-pack transport. You thread the Euro-threaded bolts directly into 5 mm holes in the lr 32 hole pattern and rout the mating piece quickly using the df 500 joiner with a D8 cutter. Engineered for panel thicknesses from 18 to 28 mm, this system compensates for routing tolerances up to 1.4 mm to ensure perfectly aligned panels. This pack of 50 complete connectors gives you fast, accurate assembly without waiting for glue to cure.

Product information Accessories FAQ

€92.40

tax incl.

Key features according to our expert

Scope of delivery

Split anchor
50 x Bolt with Euro thread for drilling series of holes
50 x Plastic trays
50 x Cross anchor with threaded pin

Product description

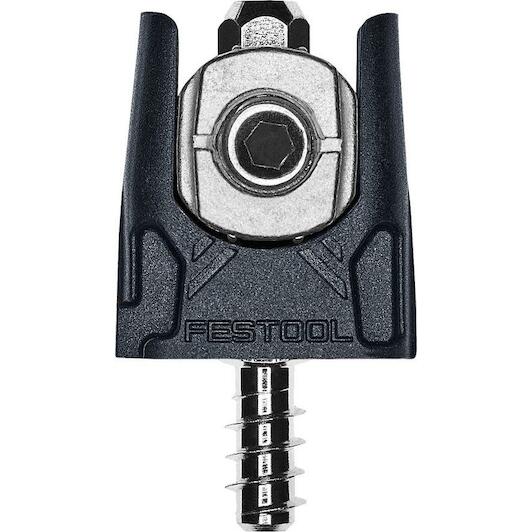

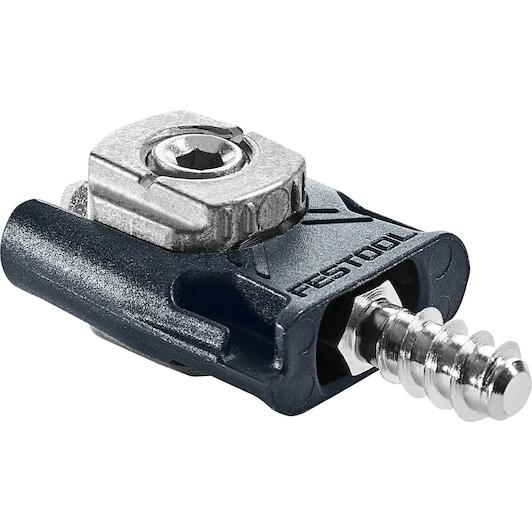

The perfect connection. The adaptable frame and furniture connectors for the DOMINO DF 500 joining machine.

The DOMINO basic structure connectors and furniture connectors enable stable yet flexible furniture designs that can be separated again. Because of their great versatility, they provide for a very large range of applications - from corner panel joints to centre panel joints to joints between a series of holes. For unique flexibility, speed and efficiency.

The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
The flush-screwed fixture elements protect each furniture component from being scratched
Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
The detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm.

Ideally suited for

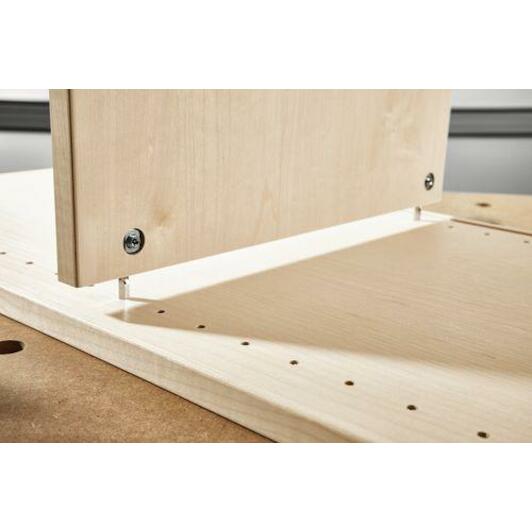

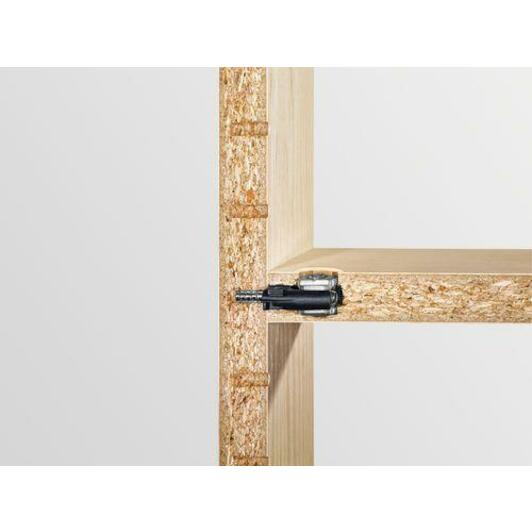

Detachable corner connector between a row of holes and a DOMINO milling groove
Furniture manufacture
Exhibition stand construction
For the DF 500, DF 500 R, DFC 500

All Features

Panel thickness: 18 28 mm
Joint fixture (8 mm domino dowel cross-cuts): D8
Domino routing depth for base part: 28.00 mm
Drilling diameter for euro bolt: 5.00 mm
Drilling diameter in base part: 15.00 mm

Brand FESTOOL
03172599
EAN 4014549302767
Supplier number FESTOOL 203168

Accessories

FESTOOL BS-KV D15 drilling template - 203164

Recommended Retail Price €109.54

83.20

€68.76 excl. VAT

On stock, immediately available.

FESTOOL KVB-HW D15 CE hardware drill - 203165

Recommended Retail Price €80.04

59.80

€49.42 excl. VAT

On stock, immediately available.

FESTOOL SORT-SYS3 M 137 DOMINO systainer³ - 576796

Recommended Retail Price €110.90

84.95

€70.21 excl. VAT

On stock, immediately available.

Frequently asked questions about this product

Answered by specialists

Which machine is this knock-down connector compatible with?: These connectors are designed for use with the Festool DF 500 joiner using a D8 cutter.
What panel thickness range does this connector fit?: This corner connector is suitable for panel thicknesses from 18 to 28 mm.
How does this connector work with a series of holes?: The Euro-threaded bolt screws directly into a 5 mm hole in the LR 32 hole drilling pattern.
Are furniture joints made with this system detachable?: Yes, the DOMINO connector system allows furniture to be assembled, dismantled, and reassembled repeatedly.
What is included in the Festool 203168 pack?: The pack contains 50 split anchors, 50 Euro-threaded bolts, 50 plastic trays, and 50 cross anchors with threaded pins.
