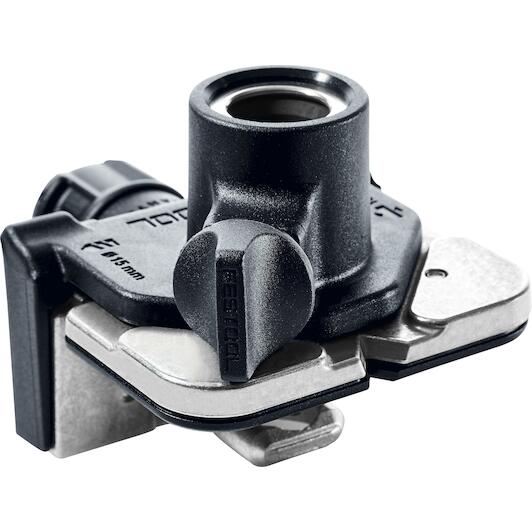

FESTOOL BS-KV D15 drilling template - 203164

Name: FESTOOL BS-KV D15 drilling template - 203164
Brand: FESTOOL
SKU: 02911121
Price: 82.6 EUR
Availability: InStock

Supplier number: FESTOOL 203164 | EAN 4014549302712

Recommended Retail Price €109.54

82.60 tax incl.

€68.26 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Delivery by DHL

✆ Talk to a specialist

Flawless joints with Festool template

Practical benefits

Precise positioning of holes: You effortlessly establish the exact position and drilling depth for furniture connectors without measuring errors.
Suitable for various thicknesses: You reliably process furniture panels with material thicknesses ranging from 18 mm to 28 mm.
Clean and dust-free drilling: You connect an extractor directly to the template to keep your work area clearly visible.

In a nutshell

The right choise for

With the Festool bs-kv D15 drilling template, you create perfectly aligned knock-down joints for bespoke cabinetry and furniture construction. Designed for use alongside the Festool Domino df 500 jointer, this template accurately guides 15 mm surface holes for connector housings without manual measuring errors. You easily achieve the exact drilling depth and edge spacing across panels with material thicknesses from 18 mm to 28 mm. The integrated dust extraction port keeps your workpiece clear and free of debris for superior visibility. Paired with the separately available Festool kvb-hw D15 ce hinge location cutter, you work faster, cleaner, and with complete precision on every corner or centre panel joint.

Product information Accessories FAQ

€82.60

In stock - tax incl.

Key features according to our expert

Product description

The perfect connection. The adaptable frame and furniture connectors for the DOMINO DF 500 joining machine.

The DOMINO basic structure connectors and furniture connectors enable stable yet flexible furniture designs that can be separated again. Because of their great versatility, they provide for a very large range of applications - from corner panel joints to centre panel joints to joints between a series of holes. For unique flexibility, speed and efficiency.

The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
The flush-screwed fixture elements protect each furniture component from being scratched
Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
The detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm.

Ideally suited for

Drilling template for machining the DOMINO D 8 mm joint fixture
For the DF 500, DF 500 R, DFC 500

All Features

Panel thickness: 18 28 mm
Drill guidance diameter: 15.00 mm

Brand FESTOOL
02911121
EAN 4014549302712
Supplier number FESTOOL 203164

Accessories

FESTOOL KVB-HW D15 CE hardware drill - 203165

Recommended Retail Price €80.04

59.80

€49.42 excl. VAT

On stock, immediately available.

Frequently asked questions about this product

Answered by specialists

What is the Festool BS-KV D15 drilling template used for?: It guides precise drilling of 15 mm surface holes when installing Festool Domino knock-down connectors.
Which machine is this drilling template compatible with?: The template is designed for use alongside the Festool Domino DF 500 jointer.
Which material panel thicknesses are supported?: The drilling template is suitable for panel thicknesses from 18 to 28 mm.
Which drill bit is required for this template?: It is matched for use with the Festool KVB-HW D15 CE hinge location cutter.
Is the 15 mm drill bit included in the scope of delivery?: No, the required 15 mm drill bit is not included and must be purchased separately.
