What is included in the scope of delivery?

The kit includes the combi drill, two 18V 5.0Ah XR batteries, a multi-voltage charger, a belt hook, a magnetic bit holder, and a TSTAK case.

Is this drill suitable for drilling into masonry?

Yes, the hammer function allows drilling up to 13 mm in masonry. For heavy-duty concrete work, an SDS-plus rotary hammer is recommended.

What are the maximum drilling capacities in wood and metal?

The maximum drilling capacity is 40 mm in wood and 13 mm in metal or steel.

What type of chuck does the Dewalt DCD796P2 have?

It features an all-metal keyless chuck with a clamping capacity of 1.5 to 13 mm.

Are the included batteries compatible with other Dewalt tools?

Yes, the included 18V XR 5.0Ah lithium-ion batteries are fully compatible with all Dewalt 18V XR power tools.

DEWALT DCD796P2-QW 18V XR Brushless cordless impact drill in TSTAK (2x 5.0Ah battery + battery pack)

Name: DEWALT DCD796P2-QW 18V XR Brushless cordless impact drill in TSTAK (2x 5.0Ah battery + battery pack)
Brand: DEWALT
SKU: 02691525
Price: 266.76 EUR
Availability: InStock

Supplier number: DEWALT DCD796P2-QW | EAN 5035048616628

Variant

Recommended Retail Price €500.42

266.76 tax incl.

€220.46 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL
Up to 5 years warranty on Dewalt after successful registration!

✆ Talk to a specialist

Reliable drilling power for demanding tasks

Practical benefits

High-torque brushless motor: The brushless motor of the Dewalt DCD796P2-QW provides 70 Nm of torque for demanding drilling and fastening applications.
Versatile hammer drill function: You easily switch between drilling, screwdriving, and hammer modes to penetrate wood, metal, and masonry efficiently.
Extended continuous cordless runtime: Two included 18V 5.0Ah XR batteries ensure you tackle long, heavy-duty workdays without unwanted charging interruptions.

In a nutshell

The right choise for

With the Dewalt DCD796P2-QW, you tackle heavy-duty drilling and fastening on any jobsite with ease. The brushless motor delivers 70 nm of torque, allowing you to drill up to 40 MM in wood, 13 MM in steel, and 13 MM in masonry using the hammer function. a robust 13 MM metal keyless chuck keeps your drill bits securely gripped. Two included 18V 5.0Ah xr batteries and an xr multi-voltage charger provide continuous runtime. Pack everything, including the belt hook and magnetic bit holder, neatly into the durable tstak case.

Product information Accessories FAQ

€266.76

In stock - tax incl.

Key features according to our expert

Battery voltage: 18 V
Max. drilling diameter (steel): 13 mm
Number of batteries included: 2
UN number: UN3481
Weight: 1,2 kg
Type of system case: TStak
Supplied in: System case
Chuck material: Metal
Max. drilling diameter (wood): 40 mm
Number of settings (torque): 14 (+drill mode)
Max. tightening torque: 70 Nm
Max. clamping capacity: 13 mm
Min. clamping capacity: 1,5 mm
Capacity (battery): 5 Ah
Max. drilling diameter (masonry): 13 mm
Product Range: Dewalt 18V

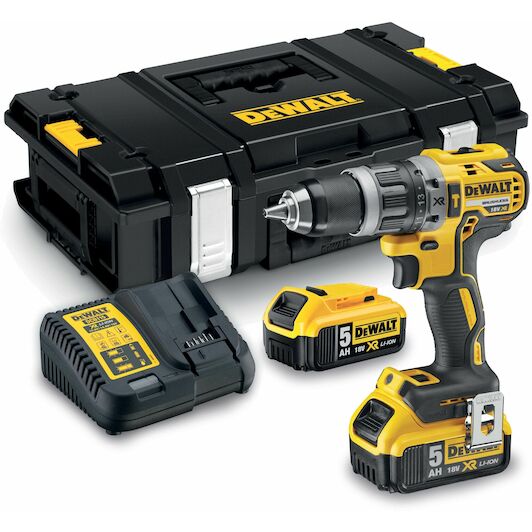

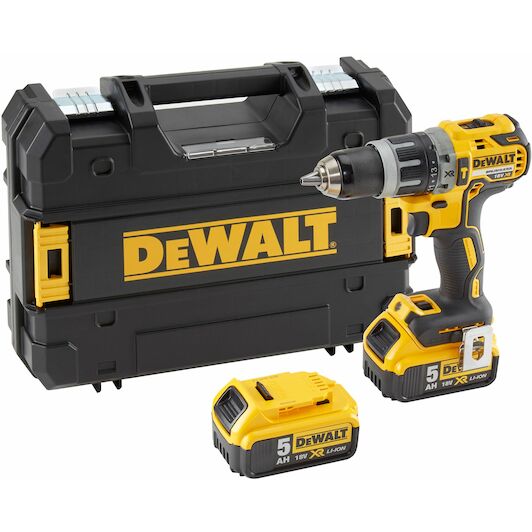

Scope of delivery

2x 18V 5.0 Ah XR slide-shift batteries
XR multi charger 10.8-14.4-18V XR batteries
Belt hook
Magnetic bit holder
TSTAK case

Product description

Powerful Brushless motor delivers 70Nm max torque
All-metal transmission with 2 speeds for longer machine life
Very compact and lightweight design ideal for work in small places.
Ergonomically improved rubber-coated handle
Intelligent switch secures the machine and progressively regulates the speed for optimal control in every application
XR Li-Ion sliding battery ensures quick and trouble-free insertion and removal
Adjustable torque mechanism with 15 positions for uniform results and optimum precision when screwing
Sturdy metal belt hook and magnetic bit holder provide convenient storage options
Hammer drill function for multiple applications
LED lamp with 3 settings

All Features

Battery voltage: 18 V
Max. drilling diameter (steel): 13 mm
Number of batteries included: 2
Un number: UN3481
Weight: 1,2 kg
Type of system case: TStak
Supplied in: System case
Chuck material: Metal
Max. drilling diameter (wood): 40 mm
Number of settings (torque): 14 (+drill mode)
Max. tightening torque: 70 Nm
Max. clamping capacity: 13 mm
Min. clamping capacity: 1,5 mm
Capacity (battery): 5 Ah
Max. drilling diameter (masonry): 13 mm
Height: <2.5 m/s²
Length: 203,0 mm
Hand/arm vibration - hammer drilling into concrete: 11,5 m/s²
Sound pressure uncertainty: 1,6 m/s²
Beats per minute: 0-9350/34000 bpm
Max. drilling capacity (wood): 2,0
Minimum clamping range of drill head: 40,0 mm
Battery chemistry: 67,0 mm
Max. cutting capacity at 45° [rounded profile]: 0-550/2000 rpm
Battery capacity: 1.5-13 mm
Uncertainty k 3 (vibration): 1,5 m/s²
Maximum drilling diameter (wood): 13,0 mm
Power input: 100,0 dB(A)
Max. drilling capacity (metal): 13,0 mm
No load speed: 420,0 W
Product range: Dewalt 18V
Power output: 3,0 dB(A)
Max. cutting capacity at 45° [square profile]: 0-550/2000 rpm
Sound power: 89,0 dB(A)
Sound power uncertainty: 1,5 m/s²
Uncertainty k 2 (vibration): 1,3 kg
Max. cutting capacity at 45° [rectangular profile]: 27,0 Nm
Weight: 1,9 kg
Power source: 3,0 dB(A)
Max. cutting capacity at 45° [l-shape profile]: 173,0 mm

Brand DEWALT
02691525
EAN 5035048616628
Supplier number DEWALT DCD796P2-QW
Warranty Up to 5 years warranty on Dewalt after successful registration!
