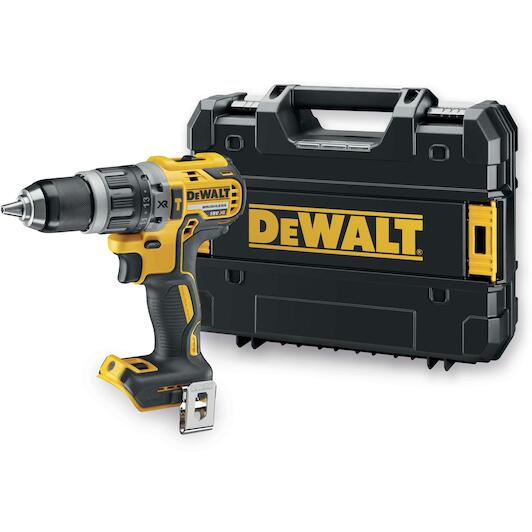

DEWALT DCD796NT 18V XR brushless cordless hammer drill in TSTAK (without battery and charger) - DCD796NT-XJ

DEWALT
Supplier number: DEWALT DCD796NT-XJ | EAN 5035048616376

Variant

DEWALT DCD796NT 18V XR brushless cordless hammer drill in TSTAK (without battery and charger) - DCD796NT-XJ DEWALT DCD796NT 18V XR brushless cordless hammer drill in TSTAK (without battery and charger) - DCD796NT-XJ DEWALT DCD796P2-QW 18V XR Brushless cordless impact drill in TSTAK (2x 5.0Ah battery + battery pack) DEWALT DCD796P2-QW 18V XR Brushless cordless impact drill in TSTAK (2x 5.0Ah battery + battery pack) DEWALT DCD796D2 18V XR Brushless cordless hammer drill in TSTAK (2x 2.0Ah battery + charger) - DCD796D2-QW DEWALT DCD796D2 18V XR Brushless cordless hammer drill in TSTAK (2x 2.0Ah battery + charger) - DCD796D2-QW
Recommended Retail Price €236.40
176.03 tax incl.
€145.48 excl. VAT (incl. all environmental contributions)
On stock - immediately available | we have 3 products in stock.

✆ Talk to a specialist

Powerful drilling with Dewalt

Practical benefits
  • Efficient brushless motor power: The brushless motor delivers 70 Nm of torque so you can bore easily through timber, steel, and masonry.
  • Precise control every time: With adjustable torque settings and two speed gears, you maintain total control across varied fastening tasks.
  • Compact and easy transport: The lightweight design fits into narrow work areas and stores securely in the included TSTAK case.

In a nutshell

The right choise for

Tackle challenging drilling and fastening tasks with the Dewalt DCD796NT. Its efficient brushless motor delivers up to 70 Nm of torque, allowing you to bore up to 40 mm in wood, 13 mm in steel, and up to 13 mm in masonry using the hammer drill function. Two mechanical speed settings combined with 14 torque positions give you precise control across various materials. Weighing only 1.2 kg and equipped with a durable metal keyless chuck, this compact tool keeps you working comfortably in confined spaces. Store and transport it easily in the included tstak case, complete with belt hook and magnetic bit holder.



Product information Accessories FAQ
€176.03
In stock - tax incl.

Product information

Key features according to our expert

  • Battery voltage: 18 V
  • Max. drilling diameter (steel): 13 mm
  • Number of batteries included: 0
  • UN number: Not applicable
  • Weight: 1,2 kg
  • Type of system case: TStak
  • Supplied in: System case
  • Chuck material: Metal
  • Max. drilling diameter (wood): 40 mm
  • Number of settings (torque): 14 (+drill mode)
  • Max. tightening torque: 70 Nm
  • Max. clamping capacity: 13 mm
  • Min. clamping capacity: 1,5 mm
  • Max. drilling diameter (masonry): 13 mm
  • Product Range: Dewalt 18V

Scope of delivery

  • Belt hook
  • Magnetic bit holder
  • TSTAK case
  • Battery and charger are available separately

Product description

  • 18V XR Brushless Screwdriver/Whisk Drill in TSTAK case (without battery/charger)

Features

  • 18V Brushless motor for better working time and performance
  • 18V XR Brushless Li-Ion screw/hammer drill
  • All-metal transmission with 2 speeds for longer machine life
  • Ergonomically improved rubber-coated handle
  • Intelligent switch secures the machine and progressively regulates the speed for optimum control in every application
  • Adjustable torque mechanism with 15 positions for uniform results and optimum precision when screwing
  • Sturdy metal belt hook and magnetic bit holder provide convenient storage options
  • Part of the intelligent XR Li-Ion platform designed for even more efficiency to get the job done faster
  • Hammer drill function for multiple applications

All Features

Battery voltage
18 V
Max. drilling diameter (steel)
13 mm
Number of batteries included
0
Un number
Not applicable
Weight
1,2 kg
Type of system case
TStak
Supplied in
System case
Chuck material
Metal
Max. drilling diameter (wood)
40 mm
Number of settings (torque)
14 (+drill mode)
Max. tightening torque
70 Nm
Max. clamping capacity
13 mm
Min. clamping capacity
1,5 mm
Max. drilling diameter (masonry)
13 mm
Height
<2.5 m/s²
Length
203,0 mm
Hand/arm vibration - hammer drilling into concrete
11,5 m/s²
Sound pressure uncertainty
3,0 dB(A)
Beats per minute
1.5-13 mm
Max. drilling capacity (wood)
0-550/2000 rpm
Minimum clamping range of drill head
13,0 mm
Maximum drilling diameter (wood)
27,0 Nm
Max. cutting capacity at 45° [rounded profile]
40,0 mm
Battery chemistry
67,0 mm
Uncertainty k 3 (vibration)
89,0 dB(A)
Power input
420,0 W
No load speed
2,0
Weight
1,3 kg
Depth
0-9350/34000 bpm
Product range
Dewalt 18V
Power output
460,0
Max. drilling capacity (metal)
13,0 mm
Sound power
3,0 dB(A)
Uncertainty k 2 (vibration)
1,5 m/s²
Max. cutting capacity at 45° [square profile]
0-550/2000 rpm
Max. cutting capacity at 45° [rectangular profile]
70,0 Nm
Battery capacity
Li-Ion
Power source
2000,0
Max. cutting capacity at 45° [l-shape profile]
173,0 mm
Sound power uncertainty
100,0 dB(A)

Accessories

View more accessories (19)

Frequently asked questions about this product

Answered by specialists
Are a battery and charger included with this tool?
No, this is a bare unit supplied in a TSTAK case with a belt hook and bit holder. Batteries and chargers are sold separately.
Which batteries are compatible with the Dewalt DCD796NT?
You can use any Dewalt 18V XR Li-ion slide-on battery pack with this tool.
Is the Dewalt DCD796NT suitable for drilling into masonry?
Yes, with its built-in hammer drill mechanism, it drills up to 13 mm into masonry.
What are the maximum drilling capacities of this tool?
Maximum drilling capacity is 40 mm in wood, 13 mm in steel, and 13 mm in masonry.
What type of chuck is fitted on this tool?
It features a heavy-duty all-metal keyless chuck with a 1.5 to 13 mm clamping range.
