What is the maximum range of the Bosch GRL 650 CHVG rotary laser?

The Bosch GRL 650 CHVG rotary laser has a maximum range of 70 meters without a receiver and up to 650 meters in diameter with the LR 65 G receiver.

Is the Bosch GRL 650 CHVG rotary laser suitable for outdoor use?

Yes, the rotary laser is robustly built to operate in rough jobsite conditions and bad weather. The device meets the IP68 standard for dust and water protection.

What batteries are compatible with the Bosch GRL 650 CHVG rotary laser?

The rotary laser operates on an 18V Li-ion battery or 4 D-cell alkaline batteries. The included battery is a ProCORE18V 4.0Ah.

What is the leveling accuracy of the Bosch GRL 650 CHVG?

The leveling accuracy of the Bosch GRL 650 CHVG is ± 1.5 mm at 30 meters horizontally and ± 3.0 mm at 30 meters vertically.

Is a tripod included with the Bosch GRL 650 CHVG rotary laser?

Yes, this set comes with a BT 170 HD tripod.

BOSCH GRL 650 CHVG cordless rotation laser green in case with tripod BT170HD and measuring stick (1x 4.0Ah battery + charger) - 06159940PR

Name: BOSCH GRL 650 CHVG cordless rotation laser green in case with tripod BT170HD and measuring stick (1x 4.0Ah battery + charger) - 06159940PR
Brand: BOSCH
SKU: 03214456
Price: 2515.99 EUR
Availability: PreOrder

Supplier number: BOSCH 06159940PR | EAN 4059952626352

Recommended Retail Price €3,337.97

2,515.99 tax incl.

€2,079.33 excl. VAT (incl. all environmental contributions)

On order: delivered from 19/10/2026

set

✆ Talk to a specialist

How does it work?

Purchase a participating Bosch Professional MT Li-Ion measuring tool during the promotion period and receive the matching battery free of charge.
Upload your proof of purchase via the Bosch PRO360 app before 31 January 2027 to claim your free battery.
The promotion is valid from 01.09.2026 to 31.12.2026.
Bosch PRODEALS are recognisable by the promotion label on the product page. Click the label to view all participating items.

Bosch PRODEALS 2026 - Purchase a measuring tool and receive a free battery!

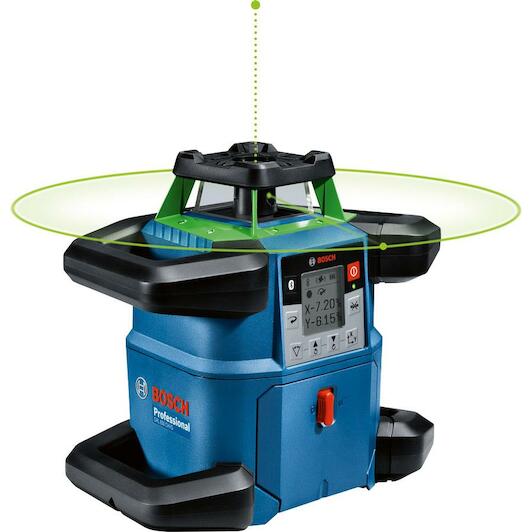

Bosch GRL 650 CHVG cordless rotary laser for precision

Practical benefits

Enhanced green beam visibility: The advanced green beam laser technology of the GRL 650 CHVG provides higher visibility in various lighting conditions.

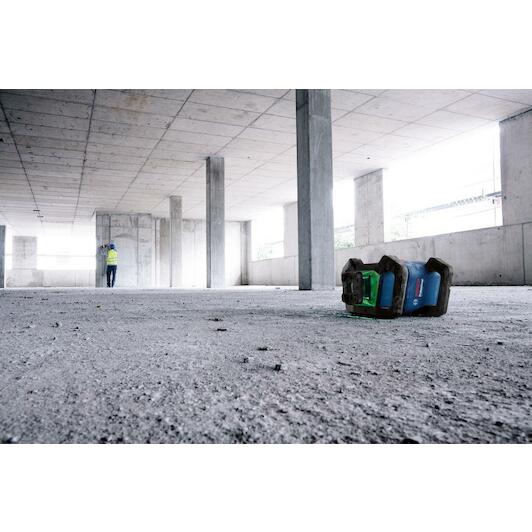

Jobsite-ready, robust construction: This rotary laser is built to withstand tough conditions, including a 2-meter tripod tip-over and IP68 dust and water protection.

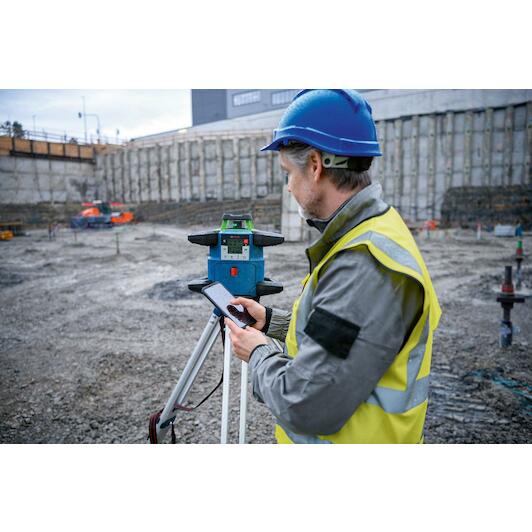

Efficient app connectivity: You can quickly control and adjust settings for the Bosch GRL 650 CHVG via the Levelling Remote app, saving time on the jobsite.

In a nutshell

The right choise for

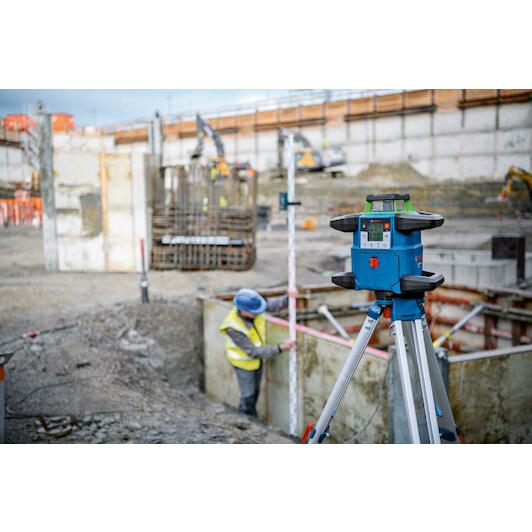

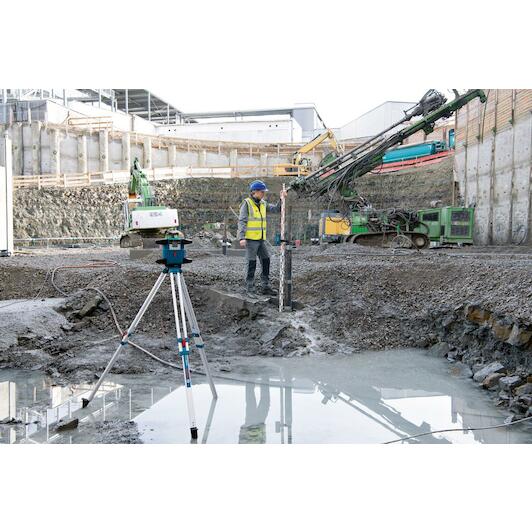

The Bosch grl 650 chvg cordless rotary laser delivers precision and durability for any jobsite. With a range of up to 650 meters with receiver and a green laser beam for optimal visibility, even in bright daylight, you eliminate manual leveling errors. Its IP68 protection makes it resistant to dust and water, while the included bt 170 hd tripod and gr 500 measuring rod allow you to immediately start large-scale leveling, concrete pouring, or drywall alignment. Easily control the laser via the Levelling Remote app for increased efficiency.

Product information FAQ

€2,515.99

tax incl.

Key features according to our expert

Laser type: Rotating laser
Weight: 3,8 kg
Max. range: 70 m
With tripod: Yes
Tripod thread: 5/8"
Projection (laser beams): circle horizontal or vertical
Number of points: 1
Self-levelling range: 5,0000 °
Type of system case: Not applicable
Max. range with receiver: 650 m
IP rating: IP68
Laser class: Class 2
Accuracy: 0,05 mm/m
Colour (laser beams): Green
Supplied in: Case

Scope of delivery

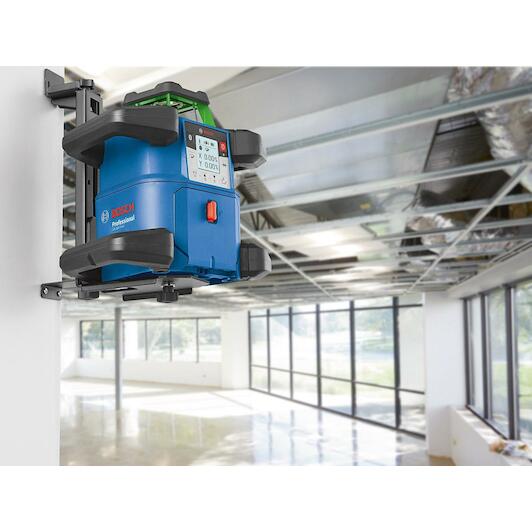

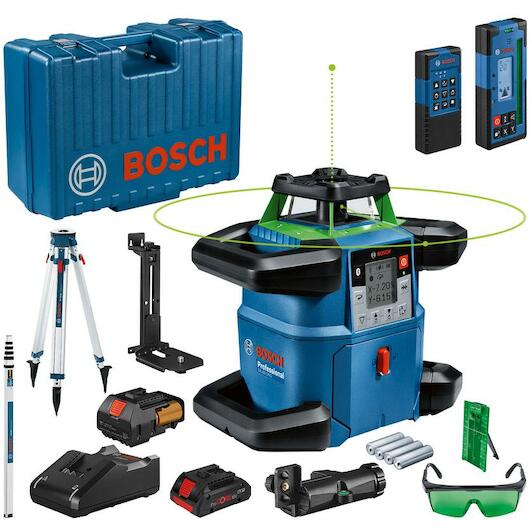

LR 65 G laser receiver, RB 60 receiver holder, RC 6 remote control, WM 6 wall bracket, 1x ProCORE18V 4.0 Ah, GAL 18V- 40 quick charger, BA 1 battery adapter, 4x battery 1.5V LR2 (D), 4x battery 1.5V LR6 (AA), laser target plate, tripod BT 170 HD, measuring stick GR 500

Product description

Rotation laser GRL 650 CHVG (LR 65 G laser receiver, RB 60 receiver holder, RC 6 remote control, WM 6 wall bracket, 1x ProCORE18V 4.0 Ah, GAL 18V- 40 quick charger, BA 1 battery adapter, 4x battery 1.5V LR2 (D), 4x battery 1.5V LR6 (AA), laser target plate, tripod BT 170 HD, measuring stick GR 500)
Robustness and maximum protection against dust and water

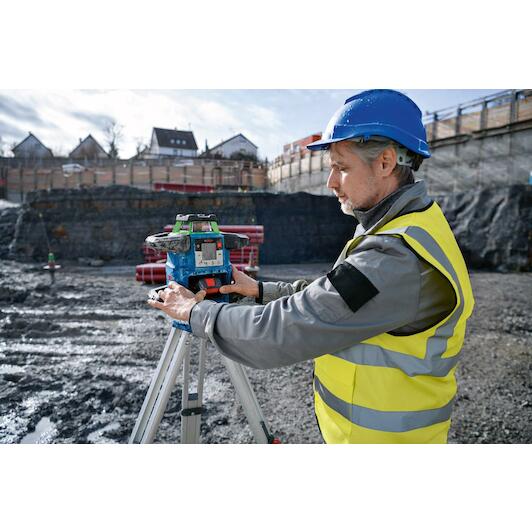

Quick and easy set-up on screen, connection to receiver and app
High accuracy and long battery life

All Features

Laser type: Rotating laser
Weight: 3,8 kg
Max. range: 70 m
With tripod: Yes
Tripod thread: 5/8"
Projection (laser beams): circle horizontal or vertical
Number of points: 1
Self-levelling range: 5,0000 °
Type of system case: Not applicable
Max. range with receiver: 650 m
Ip rating: IP68
Laser class: Class 2
Accuracy: 0,05 mm/m
Colour (laser beams): Green
Supplied in: Case
Storage temperature, from: -20 °C
Projection: 1 x 360° line
Operating time, max.: 50 h
Self-levelling range (±5°): ±8,5 %
Operating range with receiver, value: 650 m
Levelling accuracy at 30 m* horizontally (*plus usage-dependent deviation): ± 1.5 mm
Operating temperature, from: -10 °C
Electrical power supply: 18 V Li-Ion battery
Compatible laser receivers: LR 65 G
Operating range without receiver, value: 70 m
Dust and splash water protection: IP 68
Storage temperature, up to: 50 °C
Battery voltage: 18 V
Rotation speed: 150/300/600 min-1
Operating temperature, up to: 50 °C

Brand BOSCH
03214456
EAN 4059952626352
Supplier number BOSCH 06159940PR
Warranty Up to 5 years warranty on Bosch Professional and up to 3 years on Bosch DIY after successful registration!

Frequently asked questions about this product

Answered by specialists

What is the maximum range of the Bosch GRL 650 CHVG rotary laser?: The Bosch GRL 650 CHVG rotary laser has a maximum range of 70 meters without a receiver and up to 650 meters in diameter with the LR 65 G receiver.
Is the Bosch GRL 650 CHVG rotary laser suitable for outdoor use?: Yes, the rotary laser is robustly built to operate in rough jobsite conditions and bad weather. The device meets the IP68 standard for dust and water protection.
What batteries are compatible with the Bosch GRL 650 CHVG rotary laser?: The rotary laser operates on an 18V Li-ion battery or 4 D-cell alkaline batteries. The included battery is a ProCORE18V 4.0Ah.
What is the leveling accuracy of the Bosch GRL 650 CHVG?: The leveling accuracy of the Bosch GRL 650 CHVG is ± 1.5 mm at 30 meters horizontally and ± 3.0 mm at 30 meters vertically.
Is a tripod included with the Bosch GRL 650 CHVG rotary laser?: Yes, this set comes with a BT 170 HD tripod.
