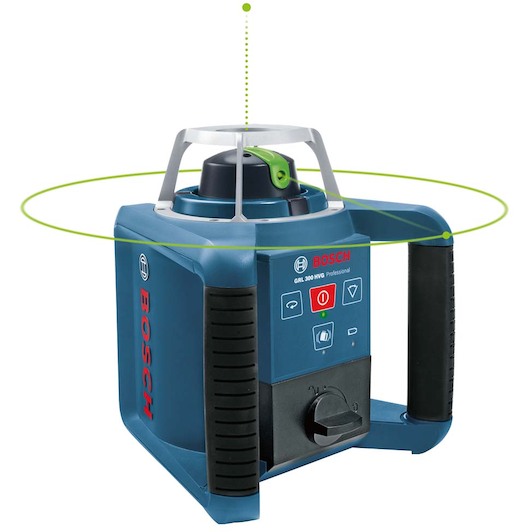

BOSCH GRL 300 HVG rotation laser green + laser receiver in L-BOXX 238 (2x 1.2V 9Ah D-battery) - 0601061704

BOSCH
Supplier number: BOSCH 0601061704 | EAN 4053423301007

Variant

BOSCH GRL 300 HVG rotation laser green in case - 0601061700 BOSCH GRL 300 HVG rotation laser green in case - 0601061700 BOSCH GRL 300 HVG rotation laser green + laser receiver in L-BOXX 238 (2x 1.2V 9Ah D-battery) - 0601061704 BOSCH GRL 300 HVG rotation laser green + laser receiver in L-BOXX 238 (2x 1.2V 9Ah D-battery) - 0601061704 BOSCH GRL 300 HVG rotation laser green with laser receiver LR 1G in case - 0601061701 BOSCH GRL 300 HVG rotation laser green with laser receiver LR 1G in case - 0601061701 BOSCH GRL 300 HVG SET rotation laser green with tripod and measuring stick in case - 061599404B BOSCH GRL 300 HVG SET rotation laser green with tripod and measuring stick in case - 061599404B
Recommended Retail Price €1,143.93
868.90 tax incl.
€718.10 excl. VAT (incl. all environmental contributions)
On order: delivered from 15/10/2026

✆ Talk to a specialist

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

Bosch GRL 300 HVG: accurate and bright

Practical benefits
  • Superior indoor visibility: The green laser line of the Bosch GRL 300 HVG is up to four times brighter than a red line, ensuring optimal visibility indoors.
  • Fast and precise leveling: Benefit from fast horizontal and vertical self-leveling with an accuracy of 0.1 mm/m, even with disturbances.
  • Durable and easy to handle: The rotary laser is IP54-rated for dust and splash protection and features large handles for convenient transport.

In a nutshell

The right choise for

The Bosch grl 300 hvg rotary laser provides you with excellent indoor visibility thanks to its green laser line, which is up to four times brighter than a red line. You benefit from fast horizontal and vertical self-leveling with an accuracy of 0.1 mm/m, even with disturbances. With a maximum range of 300 meters in diameter with the lr 1g receiver, this laser is ideal for leveling and aligning large-scale indoor construction projects. The rotary laser is IP54-rated for dust and splash protection and comes in an l-boxx 238 with an lr 1g professional laser receiver, bracket, 2 rechargeable 1.2 V HR20 (D) varta batteries, and a varta charger.



Product information Accessories FAQ
€868.90
tax incl.

Product information

Key features according to our expert

  • Laser type: Rotating laser
  • Weight: 1,8 kg
  • Max. range: 100 m
  • With tripod: No
  • Tripod thread: 5/8"
  • Projection (laser beams): circle horizontal or vertical
  • Self-levelling range: 5,0000 °
  • Number of points: 1
  • Type of system case: L-BOXX
  • Laser class: Class 3R
  • Max. range with receiver: 300 m
  • Supplied in: System case
  • Accuracy: 0,1 mm/m
  • Colour (laser beams): Green
  • IP rating: IP54

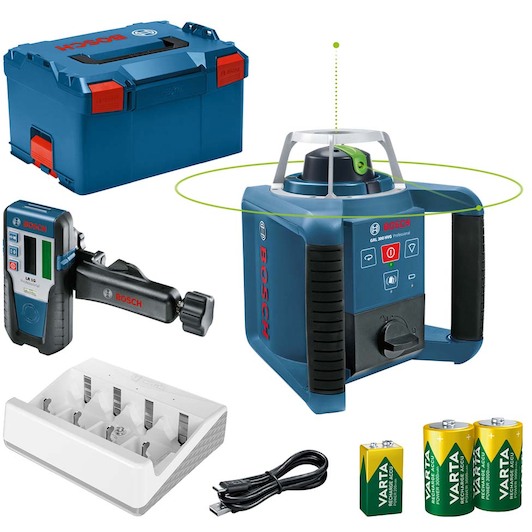

Scope of delivery

  • Laser receiver LR 1G Professional (order number: 0 601 069 700)
  • Holder (order number: 1 608 M00 70F)
  • L-BOXX 238 (order number: 1 600 A01 2G2)
  • 2 x 1.2 V HR20 (D) VARTA rechargeable battery
  • 1 x VARTA charger
  • 1 x 9V 7HR9V VARTA rechargeable battery

Product description

Excellent visibility for indoor applications

  • Green laser line: up to four times better visibility compared to a red line
  • Quickly deployable for horizontal and vertical applications due to automatic self-levelling of 8% (± 5°)
  • Switchable shock warning function prevents levelling errors in case of vibration or shocks

Functions and main features

  • Shock warning function triggers an alarm if tool is moved
  • Variable rotation speed: higher speed for working with receiver, lower speed for better visibility
  • Scanning mode for better visibility
  • Working range of up to 100m

All Features

Laser type
Rotating laser
Weight
1,8 kg
Max. range
100 m
With tripod
No
Tripod thread
5/8"
Projection (laser beams)
circle horizontal or vertical
Self-levelling range
5,0000 °
Number of points
1
Type of system case
L-BOXX
Laser class
Class 3R
Max. range with receiver
300 m
Supplied in
System case
Accuracy
0,1 mm/m
Colour (laser beams)
Green
Ip rating
IP54
Operating range with receiver up to (diameter)
300 m
Laser diode
532 Nm
Operating range without receiver up to (diameter)
100 m
Electrical power supply 2x
1,5 V
Levelling accuracy +-(*plus usage-dependent deviation)
3 mm
Leveling time
15 s
Colour laser line
Green Compatible laser receivers
Dust and splash water protection
IP 54
Self-levelling range +-
5 °
Rotation speed
150, 300, 600 min-1

Accessories

Frequently asked questions about this product

Answered by specialists
What is the maximum range of the BOSCH GRL 300 HVG rotary laser?
The rotary laser has a maximum range of 100 meters without a receiver and 300 meters in diameter with the LR 1G laser receiver.
What accuracy does the BOSCH GRL 300 HVG offer?
The rotary laser provides an accuracy of 0.1 mm/m.
Is the BOSCH GRL 300 HVG resistant to dust and water?
Yes, the rotary laser has an IP54 protection rating, meaning it is dust and splash-proof.
What batteries are used in the BOSCH GRL 300 HVG?
The rotary laser operates on two 1.5 V LR20 (D) batteries.
Does the BOSCH GRL 300 HVG come with a receiver?
Yes, this set includes the LR 1G Professional laser receiver.
