bosch_061599405u
BOSCH

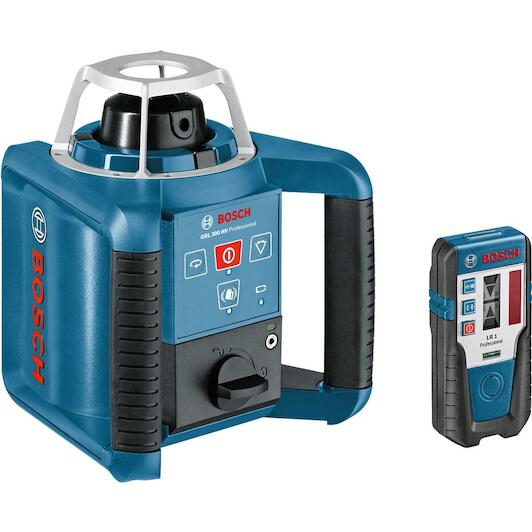

BOSCH GRL 300 HV SET rotation laser red with accessory set in case (1x 9V block battery) + laser receiver LR 1 + BT 170 HD construction tripod - 061599405U

Variant

BOSCH GRL 300 HV rotation laser red + laser receiver in L-BOXX 238 (2x 1.2V 9Ah D-battery) - 0601061505 BOSCH GRL 300 HV rotation laser red + laser receiver in L-BOXX 238 (2x 1.2V 9Ah D-battery) - 0601061505 BOSCH GRL 300 HV SET rotation laser red with accessory set in case (1x 9V block battery) + laser receiver LR 1 + BT 170 HD construction tripod - 061599405U BOSCH GRL 300 HV SET rotation laser red with accessory set in case (1x 9V block battery) + laser receiver LR 1 + BT 170 HD construction tripod - 061599405U BOSCH GRL 300 HV rotation laser red with GR 240 measuring rod and BT 300 HD tripod in case - 061599403Y BOSCH GRL 300 HV rotation laser red with GR 240 measuring rod and BT 300 HD tripod in case - 061599403Y
Recommended Retail Price €1,158.97
923.54 tax incl.
€763.26 excl. VAT (incl. all environmental contributions)
On order: delivered from 02/09/2026
set

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

Scope of delivery

  • Tripod BT 170 HD, laser receiver LR 1, GR240, welding target, glasses, remote control RC1, universal holder WM 4, 1x battery 9V 6LR61, 2x battery 1.5V LR2 (D), 1x battery 1.5V LR6 (AA)

Product description

  • Rotation laser GRL 300 HV set (tripod BT 170 HD, laser receiver LR 1, GR240, load target plate, glasses, remote control RC1, universal holder WM 4, 1x battery 9V 6LR61, 2x battery 1.5V LR2 (D), 1x battery 1.5V LR6 (AA))
  • Easy to operate thanks to one button per function and self-explanatory display
  • Quickly deployable for horizontal and vertical applications thanks to automatic self-levelling of 8% (± 5°)
  • Switchable shock-warning function prevents levelling errors due to vibrations and shocks

Advantages

  • Simple operation with horizontal and vertical self-levelling
Key features according to our expert
  • Laser type: Rotating laser
  • Weight: 1,8 kg
  • Max. range: 2x 30 m
  • With tripod: Yes
  • Tripod thread: 5/8"
  • Self-levelling range: 5,0000 °
  • Number of points: 1
  • Projection (laser beams): circle horizontal or vertical
  • Type of system case: Not applicable
  • Protection class IP: IP54
  • Laser class: Class 3R
  • Accuracy: 0,1 mm/m
  • Colour (laser beams): Red
  • Supplied in: Case
  • Max. range with receiver: 2x 150 m
Specifications / All features
Laser type
Rotating laser
Weight
1,8 kg
Max. range
2x 30 m
With tripod
Yes
Tripod thread
5/8"
Self-levelling range
5,0000 °
Number of points
1
Projection (laser beams)
circle horizontal or vertical
Type of system case
Not applicable
Protection class ip
IP54
Laser class
Class 3R
Accuracy
0,1 mm/m
Colour (laser beams)
Red
Supplied in
Case
Max. range with receiver
2x 150 m
Operating range with receiver
300 (diameter) M
Circuit breaker
5 min
Operating range without receiver
60 (diameter) M
Colour laser line
red
Operating time, max.
30 batteries (NiMH) h
Leveling time
15 s
Levelling accuracy
± 0.1 mm
Laser diode
635, < 5 mW mm
Measuring time, type.
< 0,5 s
Electrical power supply
2 x 1.5 (LR03 (AAA)) V
Units of measurement
m/cm, ft/inch
Number of memory values
10
Dust and splash water protection
IP 54
Measuring time max.
4 s
Measurement accuracy, type.
± 1.5 mm
Rotation speed
150, 300, 600 rpm
Battery type
2 x 1.5 V (lr20 / D) V
Working range
60 M
