BOSCH

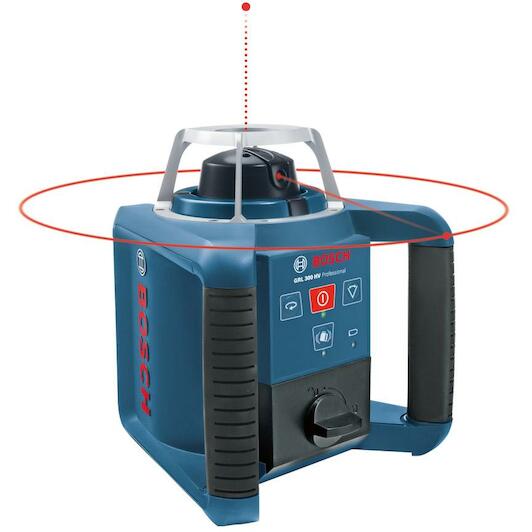

BOSCH GRL 300 HV rotation laser red with accessory set in case (1x 9V battery) - 0601061501

Recommended Retail Price €965.37
804.79 tax incl.
€665.12 excl. VAT (incl. all environmental contributions)
On order: delivered from 10/07/2026
set

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

Scope of delivery

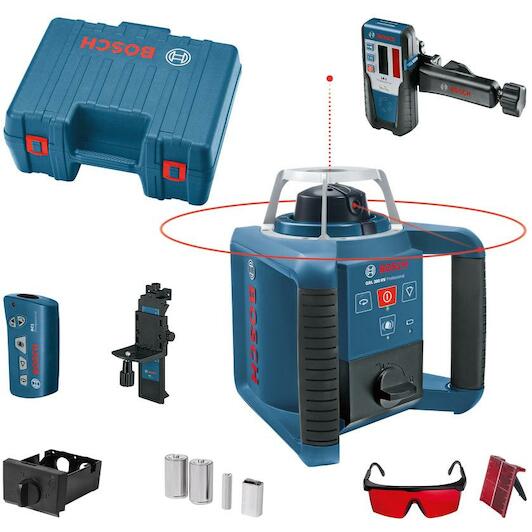

  • Laser receiver LR 1, welding target plate, glasses, remote control RC1, universal holder WM 4, 1x battery 9V 6LR61, 2x battery 1.5V LR2 (D), 1x battery 1.5V LR6 (AA)

Product description

  • Rotation laser GRL 300 HV set (laser receiver LR 1, welding target plate, glasses, remote control RC1, universal holder WM 4, 1x battery 9V 6LR61, 2x battery 1.5V LR2 (D), 1x battery 1.5V LR6 (AA))
  • Easy to operate thanks to one button per function and self-explanatory display
  • Quickly deployable for horizontal and vertical applications thanks to automatic self-levelling of 8% (± 5°)
  • Switchable shock-warning function prevents levelling errors due to vibrations and shocks

Advantages

  • Simple operation with horizontal and vertical self-levelling
Key features according to our expert
  • Laser type: Rotating laser
  • Max. range: 2x 30 m
  • With tripod: No
  • Tripod thread: 5/8"
  • Projection (laser beams): circle horizontal or vertical
  • Self-levelling range: 5,0000 °
  • Number of points: 1
  • Weight: 1,8 kg
  • Type of system case: Not applicable
  • Supplied in: Case
  • Protection class IP: IP54
  • Laser class: Class 3R
  • Accuracy: 0,1 mm/m
  • Colour (laser beams): Red
  • Max. range with receiver: 2x 150 m
Specifications / All features
Laser type
Rotating laser
Max. range
2x 30 m
With tripod
No
Tripod thread
5/8"
Projection (laser beams)
circle horizontal or vertical
Self-levelling range
5,0000 °
Number of points
1
Weight
1,8 kg
Type of system case
Not applicable
Supplied in
Case
Protection class ip
IP54
Laser class
Class 3R
Accuracy
0,1 mm/m
Colour (laser beams)
Red
Max. range with receiver
2x 150 m
Electrical power supply (2xlr20)
1,5 V
Colour laser line
Red
Leveling time
15 s
Operating range with receiver up to (diameter)
300 m
Laser diode
635 Nm
Operating range without receiver up to (diameter)
60 m
Dust and splash water protection
IP 54
Rotation speed
150, 300, 600 min-1
Levelling accuracy at 30m
3 mm
