BOSCH

BOSCH GLL 12V-100-33 CG cordless cross line laser green in L-BOXX 136 (1x 2.0Ah battery + charger) - 0601065401

Recommended Retail Price €967.91
734.59 tax incl.
€607.10 excl. VAT (incl. all environmental contributions)
On order: delivered from 01/06/2026
each

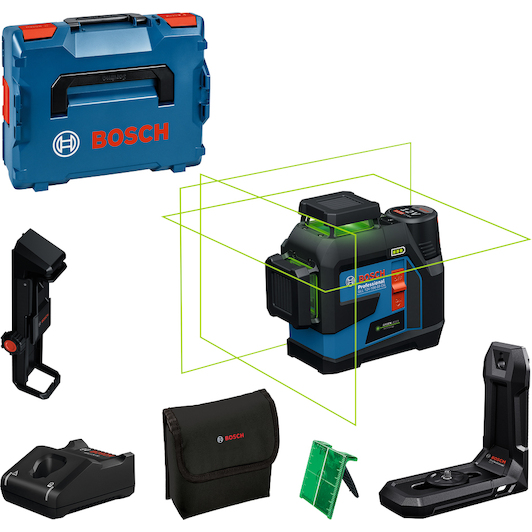

Scope of delivery

  • 1 x battery GBA 12V 2.0Ah (1 600 Z00 02X)
  • Quick charger GAL 12V-40 Professional (1 600 A01 9R3)
  • L-BOXX 136 (1 600 A01 2G0)
  • Ceiling clamp DK 20 Professional (1 608 M00 C4C)
  • Bag
  • Laser target plate

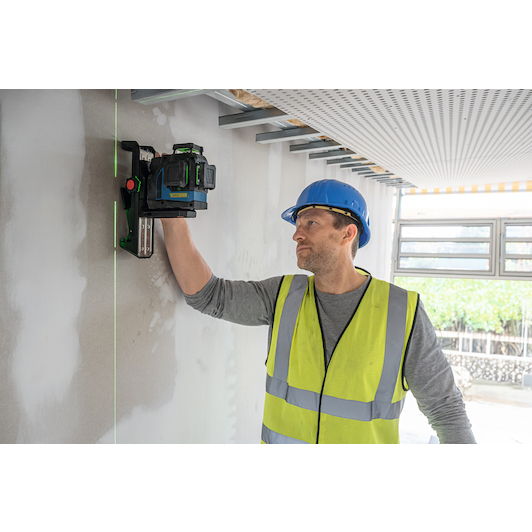

  • Universal holder LB 10 Professional

Product description

Robust and intuitive 12V line laser for effortless alignment

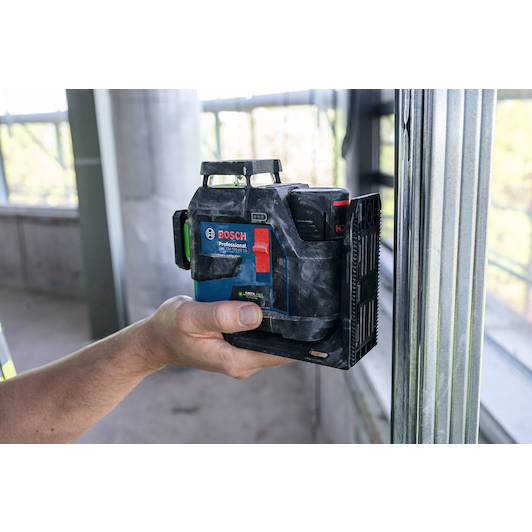

  • Robust design with IP65 rating and rubber-reinforced housing ensures reliability under tough working conditions

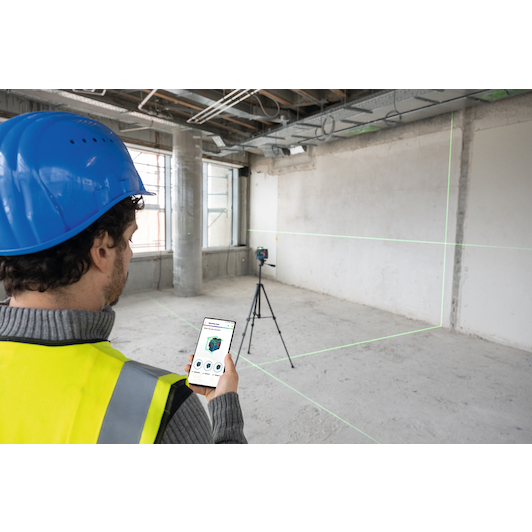

  • Hands-free line control of the three 360° laser lines via the Levelling Remote app for more accurate and efficient work
  • Experience uninterrupted work with the flexibility to switch between a 12V Li-Ion battery and AA alkaline batteries, eliminating downtime due to a flat battery or battery

Product highlights

The GLL 12V-100-33 CG Professional is a robust line laser that offers simple and intuitive operation. It is designed to withstand rugged site conditions with its rubber-reinforced housing and laser windows and an IP65 rating for dust and water resistance. The Levelling Remote app allows remote control of the three 360° laser lines for greater accuracy and efficiency. Dual power source (Dual Power) offers the flexibility to switch between the 12V Li-Ion battery and AA alkaline batteries as a back-up power source.

Equipment and application

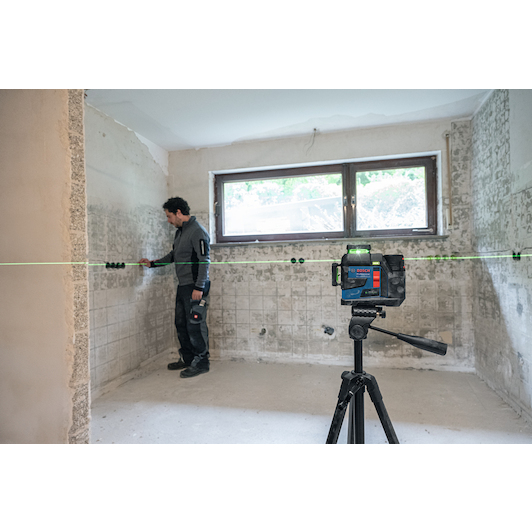

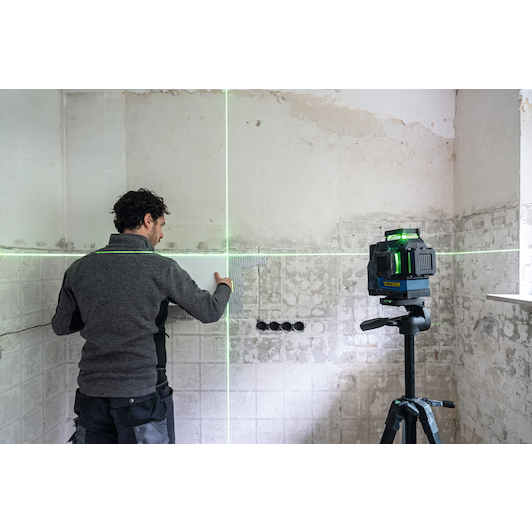

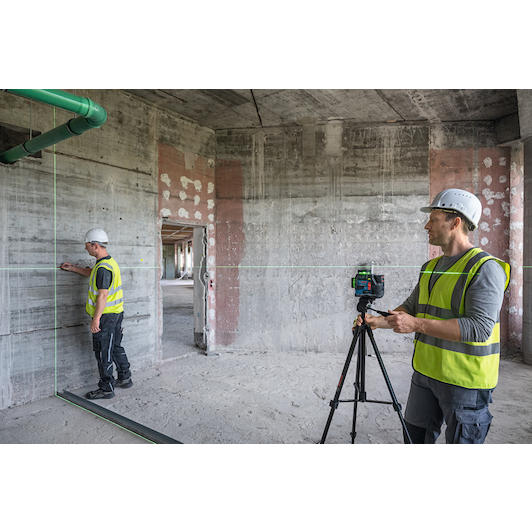

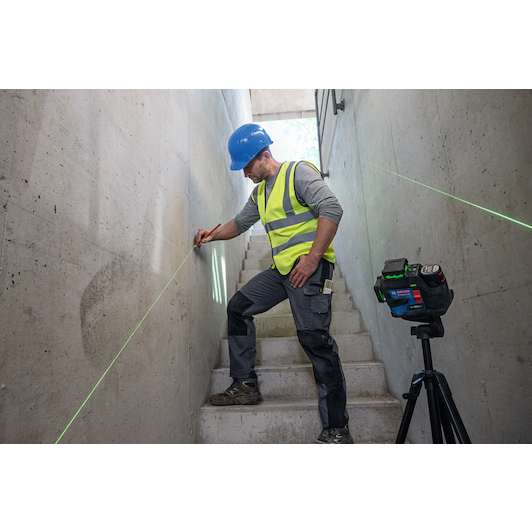

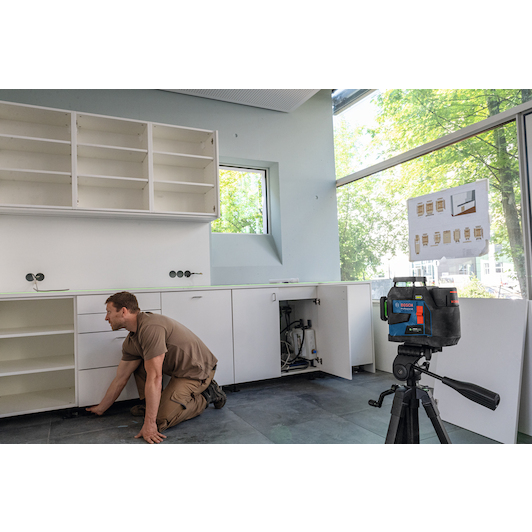

Benefit from the easy operation of the GLL 12V-100-33 CG with a new keypad design for individual laser line selection and a large battery indicator for convenience. The line laser is perfect for aligning walls and partitions, laying tiles and floors and building stairs.

Additional information

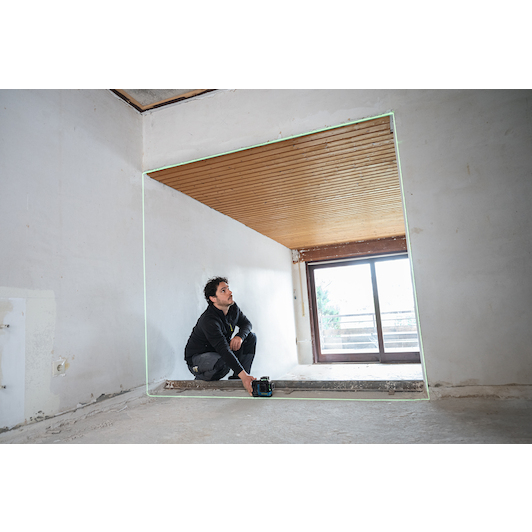

With three 360° lines, this laser can simultaneously level horizontally and vertically, making it easy to set up large spaces with just one tool. To start work immediately, the GLL 12V-100-33 CG's laser receiver mode is always activated. With the optional laser receiver LR 7 Professional, the working range can be extended to up to 100 metres (radius). The bright green laser lines offer up to four times better visibility than red lines, ensuring precision on every job.

Key features according to our expert
  • Laser type: Cross line laser
  • Type of system case: L-BOXX
  • Max. range: 30 m
  • With tripod: No
  • Projection (laser beams): 3x 360°, 1 horizontal, 2 vertical
  • Self-levelling range: 4,0000 °
  • Weight: 0,96 kg
  • Tripod thread: 1/4"; 5/8"
  • Supplied in: System case
  • Laser class: Class 2
  • Accuracy: 0,3 mm/m
  • Colour (laser beams): Green
  • Max. range with receiver: 100 m
  • Protection class IP: IP65
Specifications / All features
Laser type
Cross line laser
Type of system case
L-BOXX
Max. range
30 m
With tripod
No
Projection (laser beams)
3x 360°, 1 horizontal, 2 vertical
Self-levelling range
4,0000 °
Weight
0,96 kg
Tripod thread
1/4"; 5/8"
Supplied in
System case
Laser class
Class 2
Accuracy
0,3 mm/m
Colour (laser beams)
Green
Max. range with receiver
100 m
Protection class ip
IP65
Levelling accuracy
± 0.3 mm/m
Colour laser line
green
Projection
3 x 360° line
Operating time, max.
6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode min.
Operating range with receiver
100 m (radius) m
Compatible laser receivers
LR 7
Electrical power supply
12 V Li-Ion battery|4 x 1.5-V-LR6 (AA)
Working range, approx.
radius up to 30 m
Operating temperature, up to
40 °C
Self-levelling time, typ.
4 s

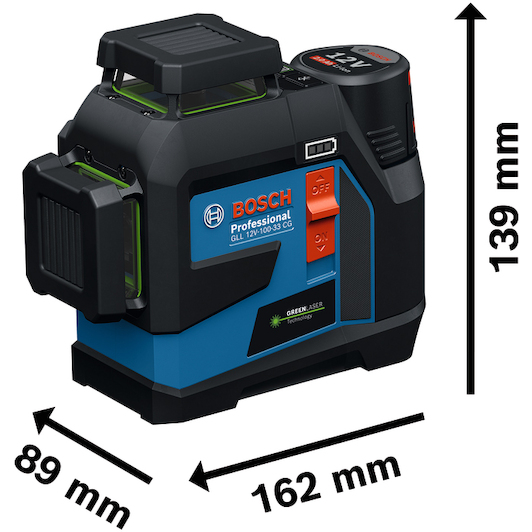

Length x width x height
162 x 89 x 139 mm
Working range, omen
radius up to
Storage temperature, from
-20 °C
Operating temperature, from
-10 °C
Dust and splash water protection
IP65 (except battery and battery adapter)
Storage temperature, up to
70 °C
Battery voltage
12 V
Levelling range
± 4 °
Working range, value
30 m
