BOSCH

BOSCH AdvancedLevel 2G Set cordless cross line laser green with plumb line function + tripod 1.2m in storage case (2x AA battery) - 0603663G01

Variant

BOSCH AdvancedLevel 2G cordless cross line laser green with plumb line function in case (2x AA battery) - 0603663G00 BOSCH AdvancedLevel 2G cordless cross line laser green with plumb line function in case (2x AA battery) - 0603663G00 BOSCH AdvancedLevel 2G Set cordless cross line laser green with plumb line function + tripod 1.2m in storage case (2x AA battery) - 0603663G01 BOSCH AdvancedLevel 2G Set cordless cross line laser green with plumb line function + tripod 1.2m in storage case (2x AA battery) - 0603663G01
Recommended Retail Price €158.06
129.59 tax incl.
€107.10 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/08/2026
set

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

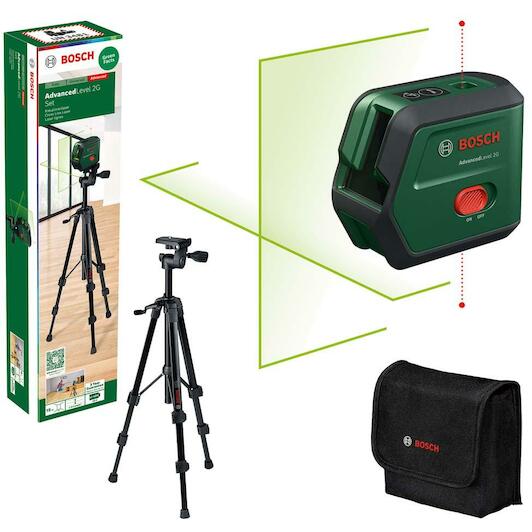

Scope of delivery

  • TT 120 tripod (0 603 691 200)
  • 1 x battery BA 3.6V 2.0Ah
  • Storage case

Product description

Brings your ideas precisely to the wall

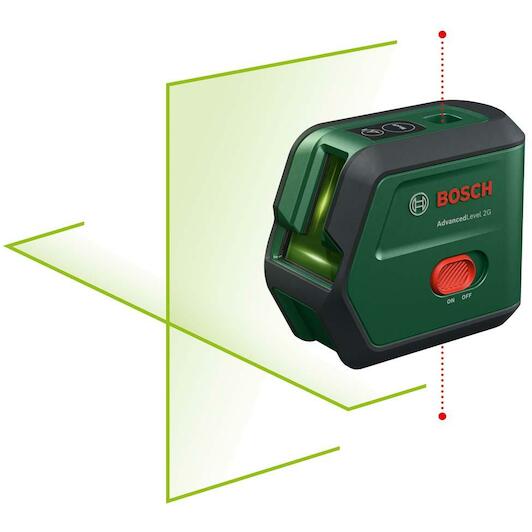

  • Precise projection of a laser cross with additional lead points above and below thanks to the self-levelling function
  • Green laser lines: up to four times better visibility, even in bright light
  • Slope function for working outside the self-levelling range with diagonal laser lines
  • High-quality, bright laser diodes with an accuracy of ± 0.4 mm/m for precise results

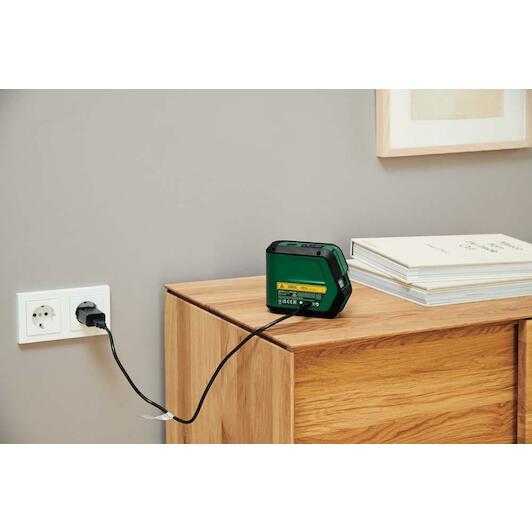

  • Integrated 3.6 V Li-Ion battery with possibility of charging via USB-C® even during use
Key features according to our expert
  • Laser type: Cross line laser
  • Weight: 0,76 kg
  • Max. range: 15 m
  • With tripod: Yes
  • Tripod thread: 1/4"
  • Projection (laser beams): 1 horizontal, 1 vertical
  • Number of points: 2
  • Self-levelling range: 4,0000 °
  • Type of system case: Not applicable
  • Laser class: Class 2
  • Accuracy: 0,4 mm/m
  • Colour (laser beams): Green
  • Supplied in: Case
Specifications / All features
Laser type
Cross line laser
Weight
0,76 kg
Max. range
15 m
With tripod
Yes
Tripod thread
1/4"
Projection (laser beams)
1 horizontal, 1 vertical
Number of points
2
Self-levelling range
4,0000 °
Type of system case
Not applicable
Laser class
Class 2
Accuracy
0,4 mm/m
Colour (laser beams)
Green
Supplied in
Case
Electrical power supply
1 x 3.6 V Li-Ion
Laser diode laser tip
650 - 660 nm
Working range, approx.
15 m
Battery type
3.6 V Li-Ion
Accuracy**
± 0.4 mm/m
Laser diode, laser tip of
650 Nm nm
Usage level
Advanced
Machine dimensions (length x width x height)
600 x 142 x 101 mm
Working range laser line
15 m
Laser diode, laser line of
515 Nm nm
Laser diode, laser line up to
530 Nm nm
Laser diode, laser tip to
660 Nm nm
Opening angle
100 °
Laser diode laser line
515 - 530 nm
Charging time
4 h
Self-levelling time, typ.
4 s
Battery capacity
2 Ah
Battery voltage
3,6 V
Levelling range
± 4 °
