Which chuck type is this drill bit compatible with?

It features an SDS-Plus shank and fits all rotary hammers equipped with an SDS-Plus tool holder.

Which materials can you drill with this bit?

It is designed for formwork, softwood, hardwood, sandwich materials, composite panels, and wood with nails.

What are the dimensions of this drill bit?

The bit has a diameter of 30 mm, a working length of 100 mm, and a total length of 600 mm.

What material is this drill bit made of?

It is made of high-speed steel (HSS) for superior heat resistance, strength, and long service life.

Can you use hammer mode with this drill bit?

No, only use rotary drilling mode without hammer action to prevent damaging the drill bit and the workpiece.

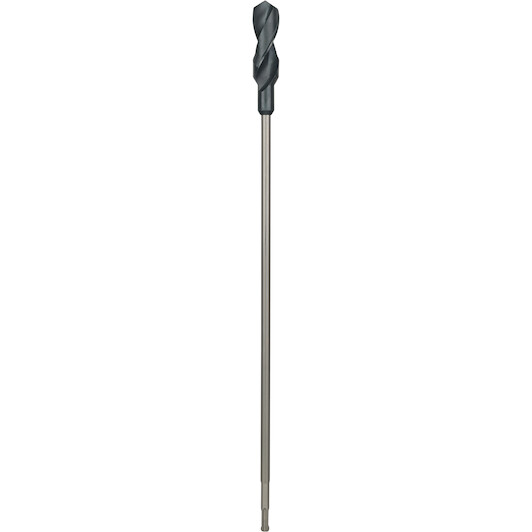

BOSCH 2608597421 formwork/installation drill bit, SDS-Plus 30 x 600 mm

Name: BOSCH 2608597421 formwork/installation drill bit, SDS-Plus 30 x 600 mm
Brand: BOSCH
SKU: 02222397
Price: 89.8 EUR
Availability: PreOrder

Supplier number: BOSCH 2608597421 | EAN 3165140104159

Recommended Retail Price €206.37

89.80 tax incl.

€74.21 excl. VAT (incl. all environmental contributions)

On order: delivered from 02/11/2026

blister

Delivery by DHL

✆ Talk to a specialist

Deep drilling with Bosch

Practical benefits

Extended reach through formwork: With a 600 mm length, you easily drill through thick formwork and multilayer sandwich materials.
Jamming prevented during drilling: The tapered flute evacuates wood shavings quickly, allowing you to work through damp timber without binding.
High breakage resistance: Made from durable HSS, the robust tool body lets you drill safely through timber with embedded nails.

In a nutshell

The right choise for

With the Bosch pro Wood hss formwork drill bit, you easily drill clean 30 mm pass-through holes through thick timber beams, solid structures, and wooden formwork. Thanks to its 600 mm total length, you reach deep into thick assemblies without needing extension rods. The robust hss construction and break-resistant shank connection allow you to drill safely through multilayer sandwich panels and timber with embedded nails. Its tapered flute rapidly evacuates shavings to prevent jamming, even in damp wood. Designed for SDS-plus rotary hammers in rotary-only mode, it delivers reliable power transfer without bit slippage.

Product information FAQ

€89.80

tax incl.

Key features according to our expert

Diameter: 30 mm
Drill bit type: Formwork drill bit
Overall length: 600 mm
Shank type: SDS-plus
Material (drill bit): HSS
Number of cutting edges: 2
Cutting length: 600 mm

Product description

Formwork/Installation drill bit, SDS-Plus 30 x 600 mm
Robust for formwork
Installation drill is very robust for formwork
The drill bit and shank end are screw-fastened, with a low risk of breakage and ensure smooth drilling

Advantages

Very robust for formwork - The installation auger is very robust and intended for formwork.
Drill bit and shank end are screwed on, therefore low risk of breakage and smooth drilling.
The flared spiral and the tapered drill and shank ends prevent jamming, even in damp wood, while sufficient force is applied to drill through driven-in nails.
The drill has an extra-long shank and is versatile, in layered building materials or sandwich materials, e.g. for formwork construction and for indoor installation work, plumbing installation, heating construction and electrical installation.
Suitable for formwork work, boards, beams, plasterboard, light building materials, insulation material and metal, e.g. metal sheets, sandwich material with steel, aluminium or profiled sheet.
It is suitable for all rotary hammers with an SDS plus holder.
The installation drill bit is made of HSS (high-speed steel) in accordance with DIN 7490.
The drill bit has a cone casing of 118 degrees.
Fits all SDS plus rotary hammers.

All Features

Diameter: 30 mm
Drill bit type: Formwork drill bit
Overall length: 600 mm
Shank type: SDS-plus
Material (drill bit): HSS
Number of cutting edges: 2
Cutting length: 600 mm
Diameter (d) mm: 30
Overall length (l2) mm: 600

Brand BOSCH
02222397
EAN 3165140104159
Supplier number BOSCH 2608597421

Frequently asked questions about this product

Answered by specialists

Which chuck type is this drill bit compatible with?: It features an SDS-Plus shank and fits all rotary hammers equipped with an SDS-Plus tool holder.
Which materials can you drill with this bit?: It is designed for formwork, softwood, hardwood, sandwich materials, composite panels, and wood with nails.
What are the dimensions of this drill bit?: The bit has a diameter of 30 mm, a working length of 100 mm, and a total length of 600 mm.
What material is this drill bit made of?: It is made of high-speed steel (HSS) for superior heat resistance, strength, and long service life.
Can you use hammer mode with this drill bit?: No, only use rotary drilling mode without hammer action to prevent damaging the drill bit and the workpiece.
