Does this toggle clamp automatically adjust to workpiece variations?

Yes, it automatically compensates for dimensions up to 13 mm while maintaining virtually constant clamping force.

What is the maximum stroke of the plunger rod?

The sliding plunger rod provides a maximum stroke and opening of 35 mm.

How is the horizontal base plate mounted?

The base plate features hole patterns suitable for both metric and imperial fasteners.

What is the purpose of the adjustment screw in the joint?

It allows you to fine-tune the applied clamping force up to a maximum of 2500 N.

BESSEY STC-IHH25SB tensioner with sliding rod with horizontal base plate - 35 mm, tension height 13 (up to 2500 N)

Name: BESSEY STC-IHH25SB tensioner with sliding rod with horizontal base plate - 35 mm, tension height 13 (up to 2500 N)
Brand: BESSEY
SKU: 02675851
Price: 32.4 EUR
Availability: PreOrder

Supplier number: BESSEY STC-IHH25SB | EAN 4008158036779

Recommended Retail Price €44.66

32.40 tax incl.

€26.78 excl. VAT (incl. all environmental contributions)

On order: delivered from 12/10/2026

blister

Delivery by DHL

✆ Talk to a specialist

Fast and powerful horizontal clamping

Practical benefits

Dependable Bessey clamping force: You secure workpieces firmly in place with an adjustable clamping capacity reaching up to 2500 N.
Automatic workpiece compensation: You speed up repetitive operations as the push-pull mechanism automatically adjusts across a 13 mm range without manual resets.
Comfortable and stable mounting: The ergonomic two-component handle and slotted horizontal base plate ensure straightforward installation and effortless daily operation.

In a nutshell

The right choise for

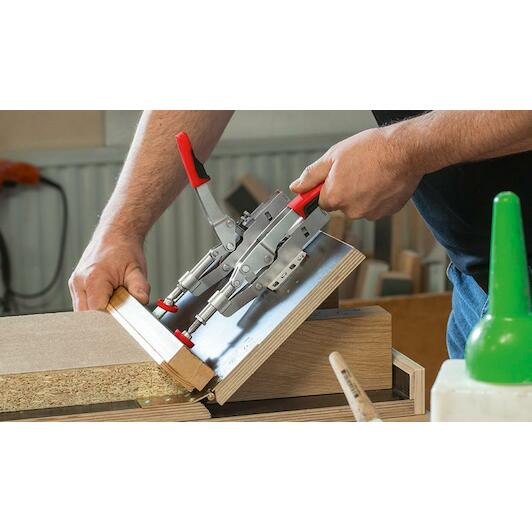

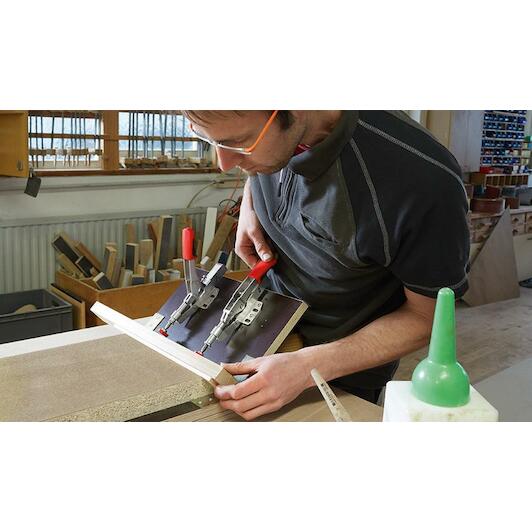

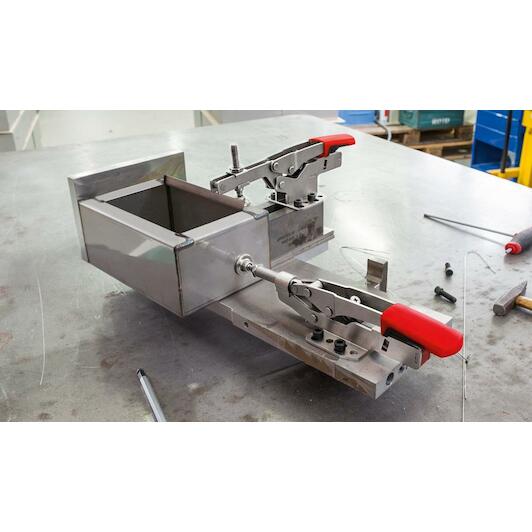

With the Bessey STC-IHH25SB push-pull toggle clamp, you secure workpieces quickly and reliably during drilling, sawing, and routing operations. It provides an infinitely adjustable clamping force of up to 2500 n using the adjustment screw in the joint. Perfect for fixtures and series production, it automatically compensates for workpiece thickness differences across a 13 mm range without manual resets, maintaining a virtually constant clamping force. Featuring a 35 mm stroke, an ergonomic two-component handle, and an adaptable horizontal base plate, it gives you complete control and dependable stability for every job.

Product information FAQ

€32.40

tax incl.

Key features according to our expert

Clamping force: 2500 N
Number per blister: 1
Product Range: Bessey STC-IHH

Product description:

Operation of the lever is converted into axial movement of the sliding rod
Automatic stepless adjustment of the clamping height up to 13 mm at almost constant clamping force without manual change of the position of the adjustment screw
Adjustable clamping force of up to 2,500 N depending on the setting of the adjustment screw in the transmission
Stable and refined metal plate for long service life
Pilot holes in the base plate suitable for mm and inches
High-quality, oil-resistant 2-component plastic handle

All Features

Clamping force: 2500 N
Number per blister: 1
Product range: Bessey STC-IHH

Brand BESSEY
02675851
EAN 4008158036779
Supplier number BESSEY STC-IHH25SB

Frequently asked questions about this product

Answered by specialists

What is the maximum clamping force of this push-pull toggle clamp?: It delivers an adjustable clamping force of up to 2500 N using the adjustment screw in the joint.
Does this toggle clamp automatically adjust to workpiece variations?: Yes, it automatically compensates for dimensions up to 13 mm while maintaining virtually constant clamping force.
What is the maximum stroke of the plunger rod?: The sliding plunger rod provides a maximum stroke and opening of 35 mm.
How is the horizontal base plate mounted?: The base plate features hole patterns suitable for both metric and imperial fasteners.
What is the purpose of the adjustment screw in the joint?: It allows you to fine-tune the applied clamping force up to a maximum of 2500 N.
