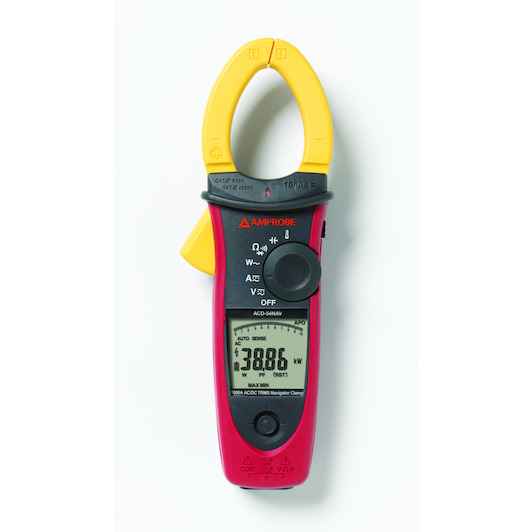

BEHA-AMPROBE ACDC-54NAV AC/DC TRMS Navigator current clamp 1000 A, jaw 42 mm - 3729989

Name: BEHA-AMPROBE ACDC-54NAV AC/DC TRMS Navigator current clamp 1000 A, jaw 42 mm - 3729989
Brand: BEHA-AMPROBE
SKU: 02910842
Price: 584.42 EUR
Availability: PreOrder

Supplier number: BEHA-AMPROBE 3729989 | EAN 0095969556675

Recommended Retail Price €635.38

584.42 tax incl.

€482.99 excl. VAT (incl. all environmental contributions)

On order: delivered from 09/10/2026

Delivery by DHL

✆ Talk to a specialist

Accurate power diagnostics with the Beha-amprobe clamp

Practical benefits

Comprehensive electrical testing: You can measure voltage and current up to 1000 V and 1000 A, including power factor, harmonics, frequency, capacitance, and temperature.
High accuracy with TRMS: True-rms technology ensures you capture reliable readings on distorted waveforms in demanding industrial power and drive environments.
Fast single-handed joystick control: You navigate through functions effortlessly with the integrated joystick and review data clearly on the large backlit digital display.

In a nutshell

The right choise for

With the Beha-amprobe ACDC-54NAV, you can carry out comprehensive electrical diagnostics and power measurements across industrial and commercial systems with complete confidence. This versatile digital trms clamp meter measures ac and DC voltage and current up to 1000 V and 1000 A, delivering accurate results even on distorted waveforms. The 42 mm jaw opening easily fits around thick conductors without breaking the circuit. Beyond power testing, you can measure harmonics, frequency up to 10 kHz, capacitance up to 4000 µF, and temperature. The intuitive joystick allows effortless single-handed operation, while the backlit display ensures clear readouts and auto-power-off preserves your 9V battery.

Product information FAQ

€584.42

tax incl.

Key features according to our expert

Max. voltage AC/DC: 1000 V
Measurement temperature: Yes
Digital: Yes
Battery size: 9V
Low battery message: Yes
Automatic shut-off: Yes
With current clamp: Yes
Diode test: Yes
Continuity test: Yes
Max. current AC/DC: 1000 A
Measurement Lo-Z: No
Measurement of noise: No
Measurement of electrical capacity: Yes
Measurement frequency: Yes
Measurement resistance: No
Current measurement: Yes
Measurement voltage: Yes
Max. electrical capacity: 4000 µF
Max. frequency: 10 kHz

Product description:

Functions
Current, voltage and resistance measurement
Call-through test
Capacitance and frequency measurement
Temperature measurement
Active power measurement
Measurement of power factor cos Phi
Measurement of harmonics for current and voltage values (up to the 25th harmonic)
Measurement of total harmonic distortion (THD)
Measurement of inrush current for motors

Additional info:

Automatic and manual range selection
Integrated measured value memory (MIN/MAX and Data Hold)
Peak value memory (peak detection)
Rotary level measurement
Low-pass filter for measurement on frequency converters
Display with large digits, backlight and analogue bar graph
42 mm jaw opening
Automatic switch-off
Main product features
True-RMS measurements AC/DC (TRMS)
Automatic torch function when jaw opens
Non-contact voltage detection
Functions can be selected via a joystick

All Features

Max. voltage ac/dc: 1000 V
Measurement temperature: Yes
Digital: Yes
Battery size: 9V
Low battery message: Yes
Automatic shut-off: Yes
With current clamp: Yes
Diode test: Yes
Continuity test: Yes
Max. current ac/dc: 1000 A
Measurement lo-z: No
Measurement of noise: No
Measurement of electrical capacity: Yes
Measurement frequency: Yes
Measurement resistance: No
Current measurement: Yes
Measurement voltage: Yes
Max. electrical capacity: 4000 µF
Max. frequency: 10 kHz

Brand BEHA-AMPROBE
02910842
EAN 0095969556675
Supplier number BEHA-AMPROBE 3729989

Frequently asked questions about this product

Answered by specialists

What measurement functions does this clamp meter provide?: It measures AC/DC voltage up to 1000 V, AC/DC current up to 1000 A, frequency up to 10 kHz, capacitance up to 4000 µF, temperature, power, harmonics, continuity, and diodes.
What is the maximum jaw opening of the Beha-Amprobe ACDC-54NAV?: The jaw opening is 42 mm, allowing you to clamp around thicker conductors and cables with ease.
What type of battery does this power clamp meter use?: It operates on 1x 9V battery. A low battery indicator alerts you when a replacement is needed.
What is the advantage of TRMS measurement?: TRMS (True RMS) ensures accurate and reliable readings even on noisy, distorted, or non-sinusoidal AC signals.
Does the meter shut off automatically?: Yes, it features an automatic power-off function to preserve battery life.
