Can this clamp meter measure DC current with the jaw?

No, the clamp only measures AC current up to 600 A. You can measure DC voltage up to 600 V using the included test leads.

What is the maximum cable diameter for the clamp jaw?

The jaw opening accommodates conductors up to 25 mm in diameter. Its slim 10 mm profile makes it easy to work in tight spaces.

Which measurement functions does the Beha-Amprobe ACD-10 PLUS offer?

In addition to AC current, it measures AC/DC voltage up to 600 V, resistance up to 40 MO hm, frequency, capacitance up to 3000 µF, and performs continuity and diode tests.

Does the meter feature automatic range selection?

Yes, it features auto-ranging, automatically selecting the correct measurement scale for quick and accurate readings.

Can this instrument measure temperature?

No, the ACD-10 PLUS does not feature a temperature measurement function.

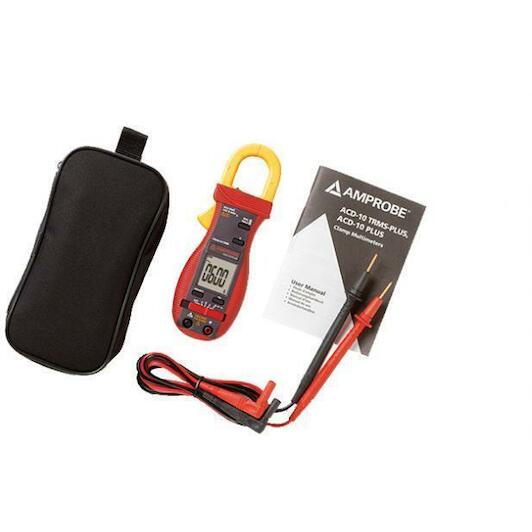

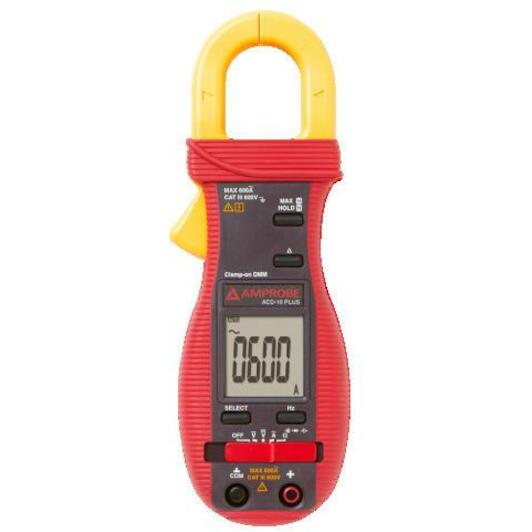

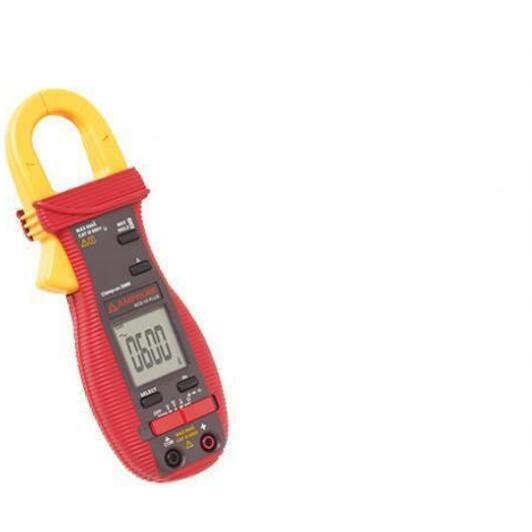

BEHA-AMPROBE ACD-10 PLUS AC current clamp 600 A with capacitance and frequency measurement, jaw 25 mm - 3037808

Name: BEHA-AMPROBE ACD-10 PLUS AC current clamp 600 A with capacitance and frequency measurement, jaw 25 mm - 3037808
Brand: BEHA-AMPROBE
SKU: 02910332
Price: 124.44 EUR
Availability: PreOrder

Supplier number: BEHA-AMPROBE 3037808 | EAN 0095969417457

Recommended Retail Price €141.77

124.44 tax incl.

€102.84 excl. VAT (incl. all environmental contributions)

On order: delivered from 14/10/2026

Delivery by DHL

✆ Talk to a specialist

Precise electrical testing with ACD-10 PLUS

Practical benefits

Slim jaws for tight spaces: The 25 mm jaw lets you maneuver between tightly packed conductors to measure AC current up to 600 A with ease.
Versatile multimeter functions in one: You can test AC and DC voltage up to 600 V, resistance up to 40 MOhm, capacitance, and frequency on demand.
Auto-ranging saves testing time: Thanks to auto-ranging and the continuity beeper, you locate faults quickly without having to adjust measurement ranges manually.

In a nutshell

The right choise for

With the Beha-amprobe ACD-10 PLUS, you can perform fast and accurate electrical testing in tight panels and crowded wire bundles. The slim 25 mm jaw lets you measure ac current up to 600 a non-invasively without breaking the circuit. This compact tool combines a clamp meter with essential multimeter functions, allowing you to test AC/DC voltage up to 600 V, resistance up to 40 MOhm, capacitance up to 3000 µF, and frequency. Auto-ranging, an audible continuity beeper, and a diode test streamline your troubleshooting routine on every job.

Product information FAQ

€124.44

tax incl.

Key features according to our expert

Max. voltage AC/DC: 600 V
Measurement temperature: No
Digital: Yes
Battery size: CR2032
Low battery message: Yes
Automatic shut-off: Yes
With current clamp: Yes
Diode test: Yes
Continuity test: Yes
Max. current AC/DC: 600 A
Measurement Lo-Z: No
Measurement of noise: No
Measurement of electrical capacity: Yes
Measurement frequency: Yes
Measurement resistance: Yes
Current measurement: Yes
Measurement voltage: Yes
Max. electrical capacity: 3000 µF
Max. frequency: 0,4 kHz
Max. resistance: 40 MOhm

Product description:

Functions
Current, voltage and resistance measurement
Call-through test
Diode test
Capacitance and frequency measurement
Inrush current measurement (30 ms)

Additional info:

Automatic range selection
Integrated measured value memory (Data Hold and MAX Hold)
Jaw opening of 25 mm
Automatic switch-off
Main product features
Narrow jaw

All Features

Max. voltage ac/dc: 600 V
Measurement temperature: No
Digital: Yes
Battery size: CR2032
Low battery message: Yes
Automatic shut-off: Yes
With current clamp: Yes
Diode test: Yes
Continuity test: Yes
Max. current ac/dc: 600 A
Measurement lo-z: No
Measurement of noise: No
Measurement of electrical capacity: Yes
Measurement frequency: Yes
Measurement resistance: Yes
Current measurement: Yes
Measurement voltage: Yes
Max. electrical capacity: 3000 µF
Max. frequency: 0,4 kHz
Max. resistance: 40 MOhm

Brand BEHA-AMPROBE
02910332
EAN 0095969417457
Supplier number BEHA-AMPROBE 3037808

Frequently asked questions about this product

Answered by specialists

Can this clamp meter measure DC current with the jaw?: No, the clamp only measures AC current up to 600 A. You can measure DC voltage up to 600 V using the included test leads.
What is the maximum cable diameter for the clamp jaw?: The jaw opening accommodates conductors up to 25 mm in diameter. Its slim 10 mm profile makes it easy to work in tight spaces.
Which measurement functions does the Beha-Amprobe ACD-10 PLUS offer?: In addition to AC current, it measures AC/DC voltage up to 600 V, resistance up to 40 MO hm, frequency, capacitance up to 3000 µF, and performs continuity and diode tests.
Does the meter feature automatic range selection?: Yes, it features auto-ranging, automatically selecting the correct measurement scale for quick and accurate readings.
Can this instrument measure temperature?: No, the ACD-10 PLUS does not feature a temperature measurement function.
