BAHCO

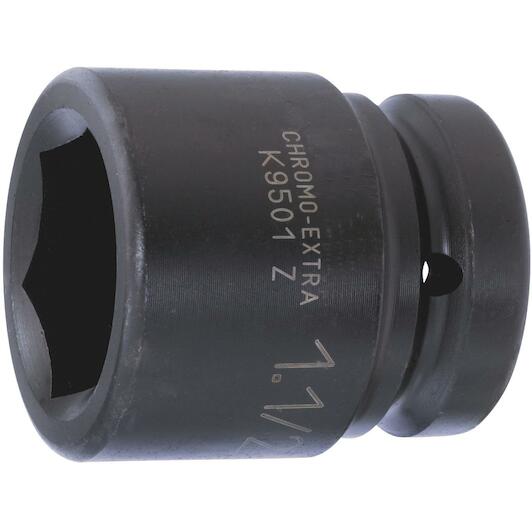

BAHCO K9501Z-1.3/8 percussion cap 1" hexagon phosphated 1-3/8"

77.54 tax incl.
€64.08 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

Product description:

  • DIN 3129, ISO 2725
  • Drive: 1" DIN 3121-H 25 ISO 1174
  • Finish: Black finish
  • Material: High performance alloy steel
  • To be used with machines
  • For maximum safety, use clamping springs
Key features according to our expert
  • Socket size: 1 3/8"
  • Connection size: 1"
  • Length: 66 mm
  • Type of drive profile (socket): Hexagonal
Specifications / All features
Socket size
1 3/8"
Connection size
1"
Length
66 mm
Type of drive profile (socket)
Hexagonal

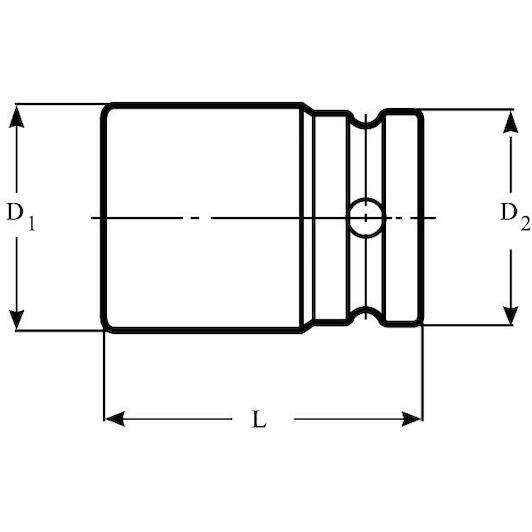

Length mm (l)
66 mm
Weight g
720 g
Width square drive mm (d2)
54 mm
Clamping spring
K560F-7
Socket width mm (d1)
55 mm
Size inch
1 3/8 in
Norms
DIN 3129, ISO 2725 / DIN 3121-H 25 / ISO 1174
Depth ball-bearing mm (t)
22 mm
