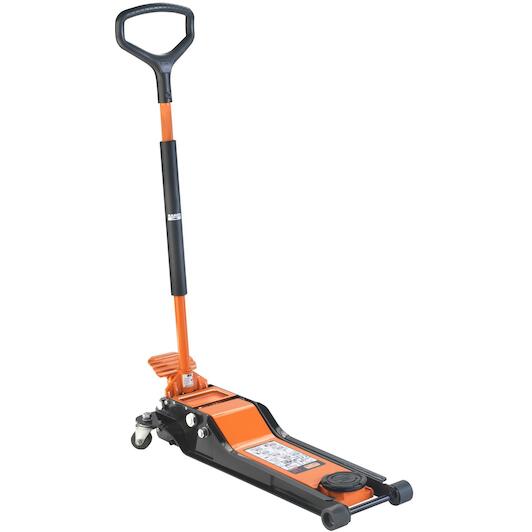

BAHCO BH11500 rolling jack 1.5t extra low

Name: BAHCO BH11500 rolling jack 1.5t extra low
Brand: BAHCO
SKU: 02229330
Price: 378.2 EUR
Availability: PreOrder

Supplier number: BAHCO BH11500 | EAN 7314150178797

Recommended Retail Price €619.93

378.20 tax incl.

€312.56 excl. VAT (incl. all environmental contributions)

On order: delivered from 07/10/2026

Delivery by DHL
Lifetime warranty on Bahco? Or limited in time? Read more about it here.

✆ Talk to a specialist

Effortless lifting with Bahco

Practical benefits

Ultra low entry profile: A low 70 mm minimum saddle height lets you easily access the lifting points of lowered performance vehicles.
Rapid lift dual pistons: The dual-piston hydraulic system reduces the required pumping strokes by 50% for fast and efficient lifting.
Safe vehicle chassis protection: The integrated rubber saddle protects vehicle contact surfaces while the safety relief valve prevents accidental overloading.

In a nutshell

The right choise for

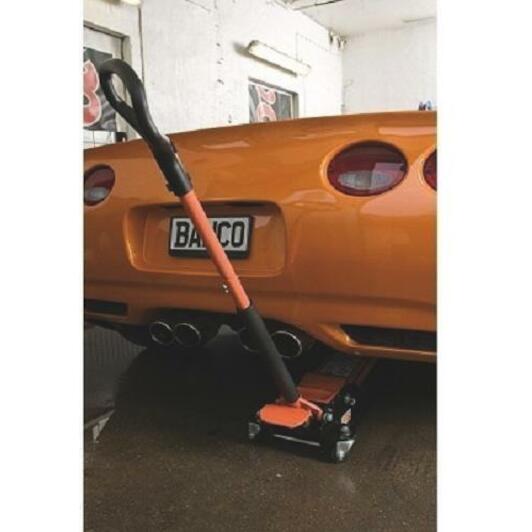

With the Bahco BH11500 trolley jack, you lift low-clearance vehicles quickly, safely, and with total confidence. Featuring an ultra-low minimum entry height of 70 mm, it slides effortlessly under lowered chassis and sports cars. The dual-piston hydraulic system cuts the required pumping strokes by 50%, letting you smoothly reach a maximum lifting height of 610 mm. With a 1.5 t lifting capacity, it is ideal for tire changes, brake servicing, and undercarriage inspections in the workshop or garage. An integrated rubber saddle pad protects the vehicle contact points, while the built-in safety relief valve prevents overloading during operation.

Product information FAQ

€378.20

tax incl.

Key features according to our expert

Max. weight: 1,5 t
Jack type: Trolley jack

Product description:

Extra large round foot pedal for quick, safe and comfortable use
Dual pistons decrease the number of necessary strokes by 50%
Dust cover protects the pistons and spring reducing the risk of damage caused by dust and dirt
Polyurethane steel covered wheels
Rubber saddle protects all surfaces and prevents slipping
Steel and PU covered wheels ensure both excellent durability and silent handling
Curved handle for increased comfort and accessibility
Useful tray located at the bottom of the handle for storage of tools, screws and nuts
Safety pressure valve prevents overloading
Safety lowering valve ensures safe lowering even at maximum load
Certified according to 2006/42/EC + BS EN1494

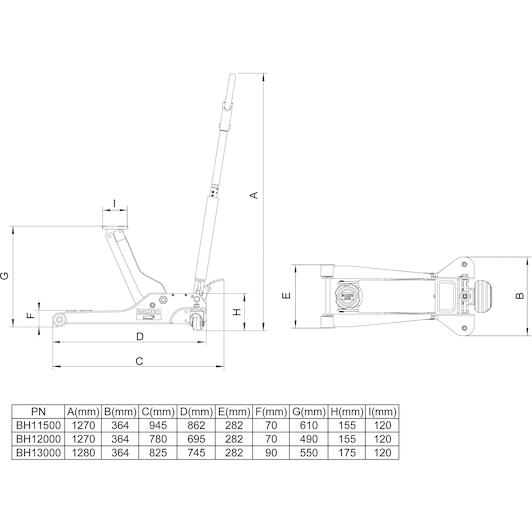

All Features

Max. weight: 1,5 t
Jack type: Trolley jack
Height package mm: 1270 mm
Weight kg: 48.8 kg
Quick approach pedal: x
Plate diameter mm: 119 mm
Width package mm: 364 mm
Length package mm: 945 mm
Minimum entry level mm: 70 mm
Frame length mm: 862 mm
Lifting capacity kg: 1500 kg
Package: 1270 x 364 x 945 mm
Stroke rate: +/- 10
Standard: 2006/42/EC
Maximum entry level mm: 610 mm

Brand BAHCO
02229330
EAN 7314150178797
Supplier number BAHCO BH11500
Warranty Lifetime warranty on Bahco? Or limited in time? Read more about it here.

Frequently asked questions about this product

Answered by specialists

What is the maximum lifting capacity of this trolley jack?: The Bahco BH11500 has a maximum lifting capacity of 1.5 t (1500 kg).
What are the minimum and maximum lifting heights?: The minimum entry height is 70 mm and the maximum lifting height is 610 mm.
Is this trolley jack suitable for lowered vehicles?: Yes, the ultra-low 70 mm clearance allows easy access beneath low sports cars and lowered chassis.
How does the dual piston system work?: The dual piston design reduces the required number of pump strokes by 50%.
Does the jack protect the vehicle lifting points?: Yes, the integrated rubber saddle pad prevents slipping and protects the vehicle contact points.
