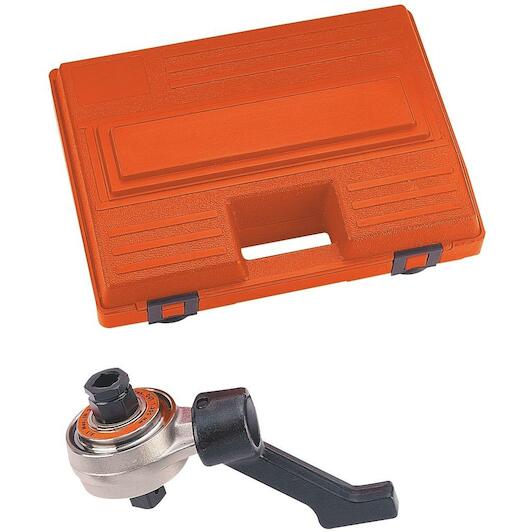

BAHCO 9505-TM manual torque multiplier, input 3/4", output 1", maximum output 2700Nm, 5:1

BAHCO
Supplier number: BAHCO 9505-TM | EAN 7314150125487
Recommended Retail Price €2,669.87
1,630.20 tax incl.
€1,347.27 excl. VAT (incl. all environmental contributions)
On order: delivered from 14/10/2026

✆ Talk to a specialist


Product information
€1,630.20
tax incl.

Product information

Key features according to our expert

  • Max. tightening torque: 23900 Nm

Product description:

  • Torque multiplier
  • Accuracy ± 4%
  • Reaction arm included
  • Supplied in double plastic wall case

All Features

Max. tightening torque
23900 Nm
Weight kg
3.700 kg
Total length mm (l)
210 mm
Capacity lb.ft
400-2000 lbf·ft
Weight g
3700 g
Head width mm (d)
108 mm
Torque range nm
540-2700 N·m
Multiplication ratio
5:1
Total length mm
210 mm
Total length mm (a)
210 mm
Weight oz oz
130 oz
Square mm
3/4 1 in
Capacity nm
540-2700 N·m
Square inch
1 in
Measuring range lb.ft
400-2000 lbf·ft
Measuring range lb.in
4780-23900 lbf·in
