What hole diameter does this punch create?

This Bahco hole punch creates clean, accurate round holes with a diameter of 25 mm.

What maximum sheet metal thicknesses can it cut?

It is suitable for sheet steel up to 2 mm thick and stainless steel up to 1.2 mm thick.

Is a pilot hole required before punching?

Yes, you must pre-drill a pilot hole to insert the draw bolt through the sheet metal.

How do you operate this manual punch?

You tighten the drive bolt using a standard wrench to pull the punch through the sheet.

What is the main advantage over a hole saw?

It produces smooth, precise, burr-free cuts without creating metal shavings or deforming the sheet.

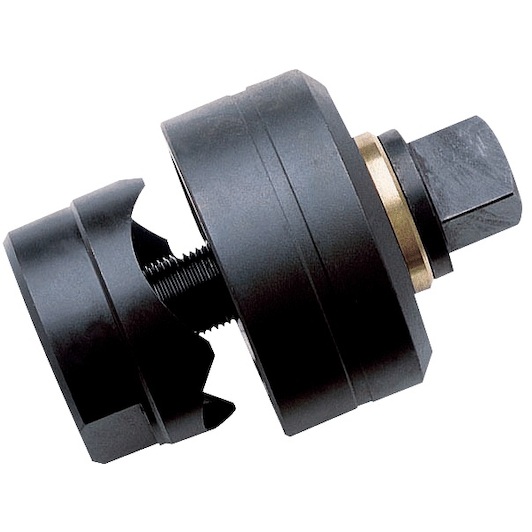

BAHCO 690000250 hole punch 25 mm

Name: BAHCO 690000250 hole punch 25 mm
Brand: BAHCO
SKU: 03215883
Price: 63.2 EUR
Availability: PreOrder

Supplier number: BAHCO 690000250 | EAN 8413345008105

Recommended Retail Price €119.44

63.20 tax incl.

€52.23 excl. VAT (incl. all environmental contributions)

On order: delivered from 10/10/2026

Delivery by DHL
Lifetime warranty on Bahco? Or limited in time? Read more about it here.

✆ Talk to a specialist

Clean punching in sheet metal

Practical benefits

Ground precision cutting edges: The ground cutting areas on this Bahco punch ensure you produce clean, burr-free holes without warping sheet material.
High tensile strength bolt: The square-head bolt delivers a force of 150 k/mm² so you punch through tough metals with minimal effort.
Capable on stainless steel: You can easily penetrate standard sheet metal up to 2 mm and stainless steel sheets up to 1.2 mm thick.

In a nutshell

The right choise for

With the Bahco 690000250 hole punch, you easily create clean, burr-free round openings of exactly 25 mm in sheet metal. Thanks to its ground precision cutting edges and a high-strength bolt delivering 150 k/mm² tensile force, you cut effortlessly through sheet steel up to 2 mm and stainless steel up to 1.2 mm thick. This makes it ideal for punching cable entries and gland holes in control cabinets and metal enclosures without warping the material. After pre-drilling a pilot hole, simply tighten the bolt with a standard wrench for an accurate result.

Product information FAQ

€63.20

tax incl.

Key features according to our expert

Diameter: 25 mm

Product description:

Hole punch, 25 mm

Features:

Hole punch
Ground cutting areas for easier cutting
Rectangular head bolt gives 150 K/mm²
Long-life friction seal ring
For metal plates up to 2 mm thick
For stainless steel plates up to 1.2 mm thick
Individual packaging

All Features

Diameter: 25 mm
Weight g: 170 g
Diameter mm: 25 mm

Brand BAHCO
03215883
EAN 8413345008105
Supplier number BAHCO 690000250
Warranty Lifetime warranty on Bahco? Or limited in time? Read more about it here.

Frequently asked questions about this product

Answered by specialists

What hole diameter does this punch create?: This Bahco hole punch creates clean, accurate round holes with a diameter of 25 mm.
What maximum sheet metal thicknesses can it cut?: It is suitable for sheet steel up to 2 mm thick and stainless steel up to 1.2 mm thick.
Is a pilot hole required before punching?: Yes, you must pre-drill a pilot hole to insert the draw bolt through the sheet metal.
How do you operate this manual punch?: You tighten the drive bolt using a standard wrench to pull the punch through the sheet.
What is the main advantage over a hole saw?: It produces smooth, precise, burr-free cuts without creating metal shavings or deforming the sheet.
