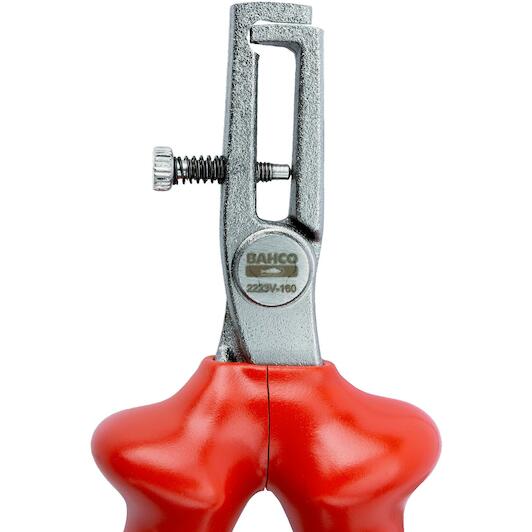

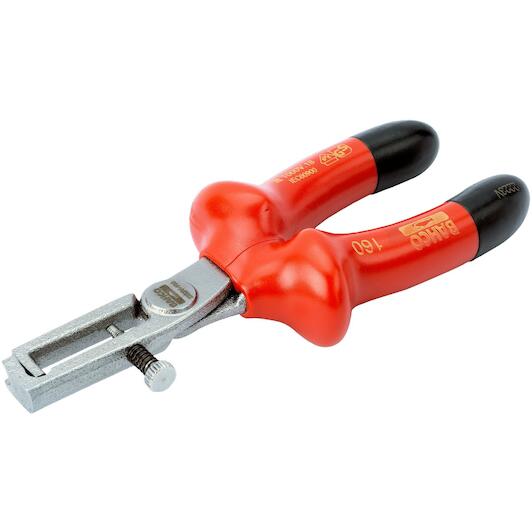

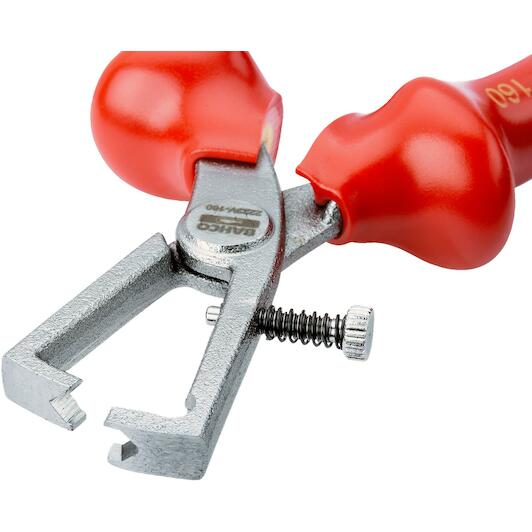

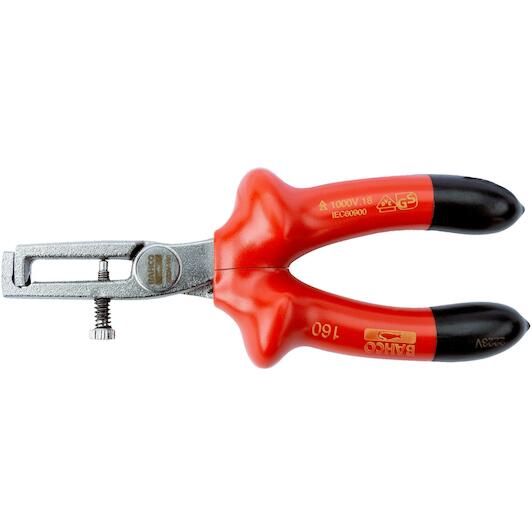

BAHCO 2223V-160 wire stripper insulated, 1000V, three-layer colour-coded VDE, phosphated, 160 mm

Show more features

For max. cable cross-section

10 mm²

Max. cable diameter

5 mm

With automatic stripping function

No

With cutting function

No

With crimping function

No

Adjustment type

Manuel

Length

160 mm

Vde approved

Yes

Min. cable diameter

0,5 mm

Awg

4-23

Weight g

205 g

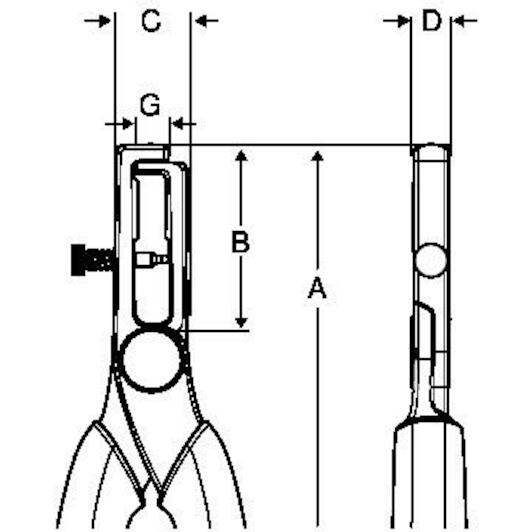

Thickness total mm (d)

8 mm

Peeling capacity mm

0.5-5 mm

Total length mm

160 mm

Total length mm (a)

160 mm

Head width mm (c)

15 mm

Jaw height mm (b)

46 mm

Cut head length mm (g)

8 mm
