BAHCO

BAHCO 11M-36 ring spanner long, chrome-plated, length 550 mm, 36 mm

Recommended Retail Price €100.28
61.20 tax incl.
€50.58 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/05/2026
each

Product description:

  • Combination wrench, long type in metric sizes
  • Standards: ISO 691, ISO 3318, ISO 1711-1 and DIN 3113
  • Material: High performance alloy steel
  • Open end angle 15º with a slimmer head for imporived accessibility
  • Ring end angle 15º for knuckle clearance or better grip
  • 12 points Dynamic-Drive Profile provides longer life for screws and nuts
  • Chrome plated Micro Matt finishing provides high quality surface
  • For sizes 41 mm to 60 mm please see 1952M
Key features according to our expert
  • Width across flats: 36 mm
  • Length: 550 mm
  • Non-sparking: No
Specifications / All features
Width across flats
36 mm
Length
550 mm
Non-sparking
No
Norms
ISO 691 / ISO 7738 / ISO 3318 / ISO 1711-1 / DIN 3113

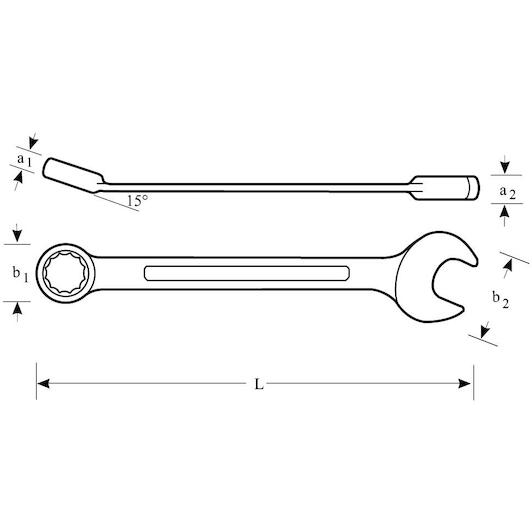

Thickness open end mm
24.5 mm
Length of wrench mm (l)
550 mm
Thickness ring end mm
15 mm
Width open end mm
52 mm
Width ring mm
77 mm
Weight g
1380 g
Size mm
36 mm
