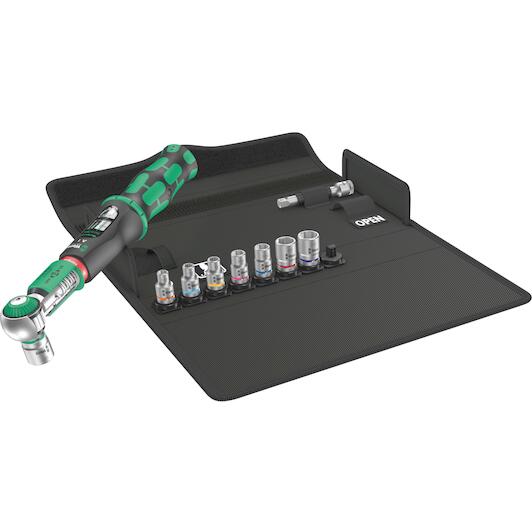

Scope of delivery
- Safe-Torque A 1 Imperial Set 1, 1/4" square head drive, 2-12 Nm, 10 pieces
- 1x Safe-Torque A 1 torque wrench with 1/4" square head drive, 2-12 Nm: 1/4" x 2-12 Nm
- 8x 8790 HMA Zyklop 1/4" socket: 3/16"x23 mm, 7/32"x23 mm, 1/4"x23 mm, 9/32"x23 mm, 5/16"x23 mm, 3/8"x23 mm, 7/16"x23 mm, 1/2"x23 mm
- 1x 8794 SA Zyklop extension with free-turning sleeve, short, 1/4": 1/4" x 75 mm
- 1x Hook and Loop Fastener Strip 240: 50 x 240 mm
Product description
10-piece 1/4" torque wrench set in a robust textile box; torque wrench with slide-over mechanism. Once the set torque has been reached, the tool cannot be overtightened, so that excessive torque cannot be applied. Setting range of 2 to 12 Nm for controlled clockwise and counterclockwise torque operation. Easy setting and saving of the default value: The audible and tactile clicks on reaching the scale values facilitate the safe setting of the desired torque value. The Torque Lock function allows use as a standard ratchet without torque function. Thus also usable for applications with angles of rotation. Max. breaking torque of the 1/4" square head as per DIN 3122. The return angle of only 5° allows the ratchet to be used even in confined spaces. Included are: Safe-Torque A 1 torque wrench, 1/4" square head, 2-12 Nm, 8 sockets with 1/4" drive and one short extension.
- Slip-over release mechanism - the set torque can never be overtightened
- Torque Lock function: The torque function can be deactivated and the tool can then be used as a standard ratchet with high loosening moments and for applications with defined angles of rotation
- For controlled clockwise and counterclockwise torque operation - tightening and loosening with or without torque
- Easy setting and saving of the desired torque value with audible and tactile clicks when reaching the scale values
- After the target torque has been reached, the release angle is only 30°
10-piece set; in a surface-friendly, compact and extremely robust textile box. Small size and low weight for better mobility.1 Safe-Torque A 1 torque wrench with 1/4" square head drive, measuring range 2-12 Nm; for controlled clockwise and counterclockwise torque operation; tightening and loosening with or without torque, disengageable torque function (Torque Lock function); 72 teeth; low return angle of 5°; easy setting and saving of the desired torque value, with audible and tactile locking when the scale values are reached, slip-over release mechanism when the set torque is reached; ergonomic 2-component handle; 8 Zyklop sockets, one Zyklop extension with fast-rotating sleeve, short
Features and benefits
- Safe-Torque
- The Safe-Torque A 1 torque wrench is equipped with a slide-over mechanism. Once the set torque value has been reached, the tool cannot be overtightened, so that excessive torque cannot be applied.
- The torque function can be deactivated. The Safe-Torque torque wrench can then also be used as a standard ratchet with high loosening moments and for applications with defined angles of rotation.
- The Safe-Torque torque wrench is suitable for clockwise and counterclockwise operation with a set torque. When the Torque Lock function is deactivated, tightening and loosening is enabled without torque.
- Easy setting and saving of the required torque with audible and tactile clicks on reaching the scale values.
- The fine-toothed Safe-Torque torque wrench with 72 teeth has a back-pivoting angle of only 5°. The small stroke offers quick and precise working in all installation positions.

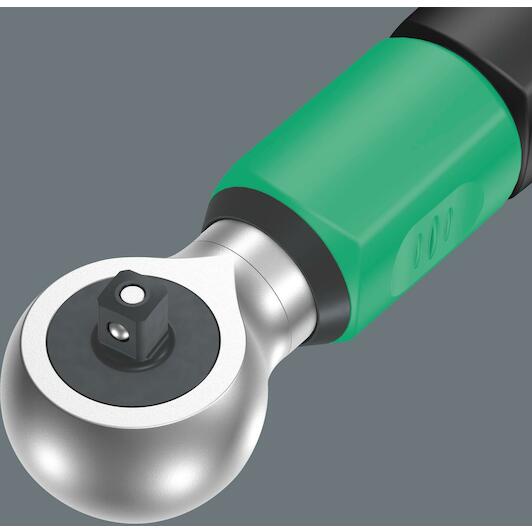

- The Safe-Torque A 1 torque wrench has 1/4" square head mounting and is suitable for 1/4" sockets.
- The Wera Belts can be attached to the hook and loop fastener strips in the textile box of the sets Safe-Torque A 1 Set 1 and Safe-Torque A 1 Imperial Set 1, so more sockets and/or bit sockets can be stored and transported.
