WERA Bit-Check 10 Zyklop Mini Bitorsion 1 bit set 10-piece - 05057418001

Name: WERA Bit-Check 10 Zyklop Mini Bitorsion 1 bit set 10-piece - 05057418001
Brand: WERA
SKU: 03228353
Price: 42.8 EUR
Availability: PreOrder

Supplier number: WERA 05057418001 | EAN 4013288195951

Recommended Retail Price €90.42

42.80 tax incl.

€35.37 excl. VAT (incl. all environmental contributions)

On order: delivered from 06/10/2026

set

Delivery by DHL

✆ Talk to a specialist

Compact power in tight spaces

Practical benefits

Wera Bit-Check 10 Zyklop Mini: You easily fasten screws in tight spots where standard tools simply do not fit.
Fine mechanism for precision: The fine-tooth ratchet with 60 teeth provides you with a 6° return angle for accurate screwdriving.
Longer lasting torsion bits: The integrated BiTorsion zone absorbs peak loads so you prevent premature bit wear during heavy fastenings.

In a nutshell

The right choise for

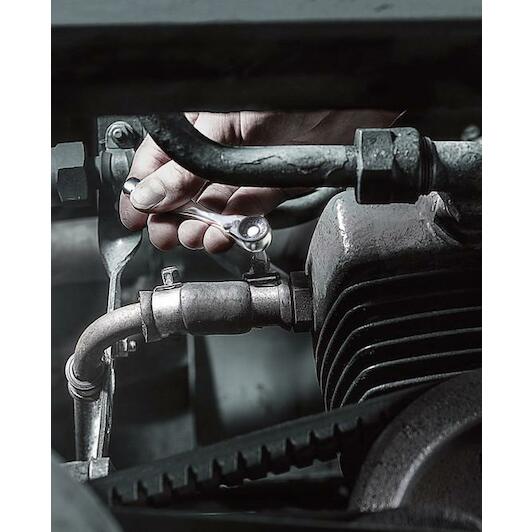

With the Wera Bit-Check 10 Zyklop Mini BiTorsion 1, you can effortlessly fasten in tight and hard-to-reach spaces where standard tools simply do not fit. The compact 87 mm 8001 a bit ratchet features a 60-tooth fine mechanism, providing a low 6° return angle for precise and rapid work in confined areas. Thanks to BiTorsion technology, the nine included bits absorb peak loads to prevent premature wear and breakage. Whether you are servicing bicycles, assembling furniture, or working on vehicle interiors, this 10-piece set with Phillips, Pozidriv, Torx, and hex bits gives you reliable control in a compact package.

Product information FAQ

€42.80

tax incl.

Key features according to our expert

Bit holder size: 1/4 inch
Type of drive profile (bit): Mixed; Phillips; Pozidriv; Torx; Hexagon
VDE approved: No
ESD: No
Quantity per set: 10
Product Range: Wera Bit-Check

Scope of delivery

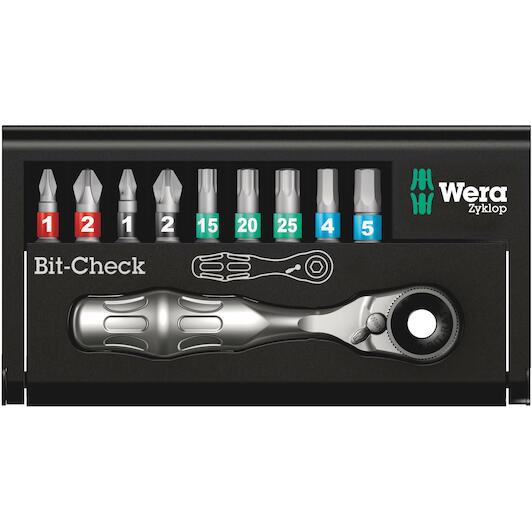

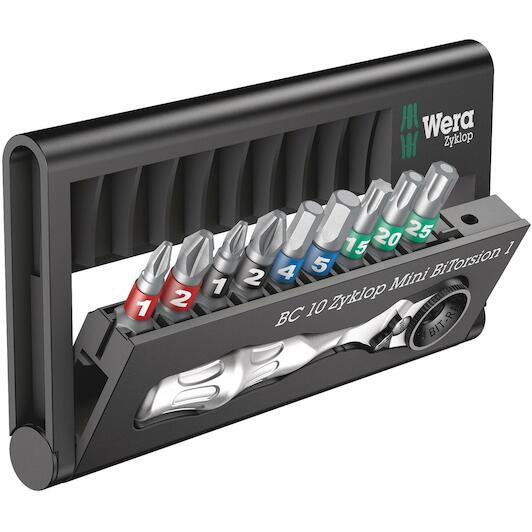

Bit-Check 10 Zyklop Mini BiTorsion 1, 10 pieces
1x 8001 A Bit Ratchet 1/4": 1/4" x 87 mm
2x 851/1 BTZ bits: PH 1x25 mm, PH 2x25 mm
2x 855/1 BTZ bits: PZ 1x25 mm, PZ 2x25 mm
3x 867/1 BTZ TORX® bits: TX 15x25 mm, TX 20x25 mm, TX 25x25 mm
2x 840/1 BTZ bits: 4x25 mm, 5x25 mm

Product description

Many tools in a minimum of space. The sorting according to drive and size allows rapid accessing of the bits. The Wera Mini ratchet: drop-forged, full-steel design. Fine-pitched mechanism with 60 teeth that allows a small return angle of only 6° for precise work. Simple left/right switchover. Ergonomically-designed ratchet head and lever.

1/4" Mini ratchet and tough viscous bits

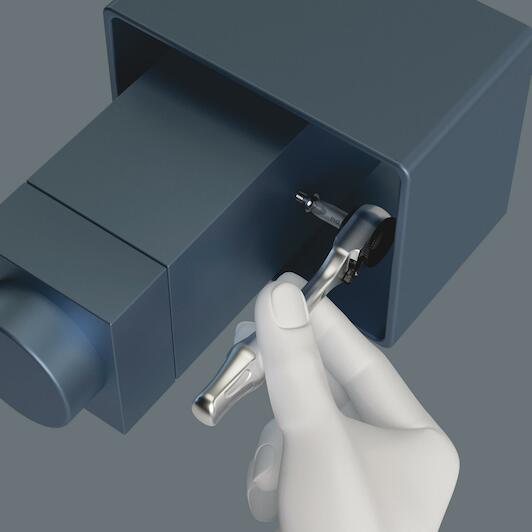

Ideal for working in confined spaces
With Take it easy tool finder: colour coding by size

9 bits, BiTorsion for long service life, extra-tough, for universal use. Take it easy tool finder: Output colour coding (red = Phillips; black = Pozidriv; green = TORX®; blue = hexagon) and large stamp to enable the desired bit to be easily located. 1 Wera Bit Ratchet Zyklop Mini 1, drop-forged full steel design, suitable for 1/4" hex bits as per DIN ISO 1173-C 6.3 and E 6.3 and Wera series 1 and 4. Can also be used with 1/4" sockets by using the Wera socket adaptor 870/1.

Features and benefits

Zyklop Mini
For all difficult-to-access applications.
The fine tooth mechanism, with its 60 teeth, allows a small return angle of only 6° - ideal for precision work.
Simple switching between left/right operations.

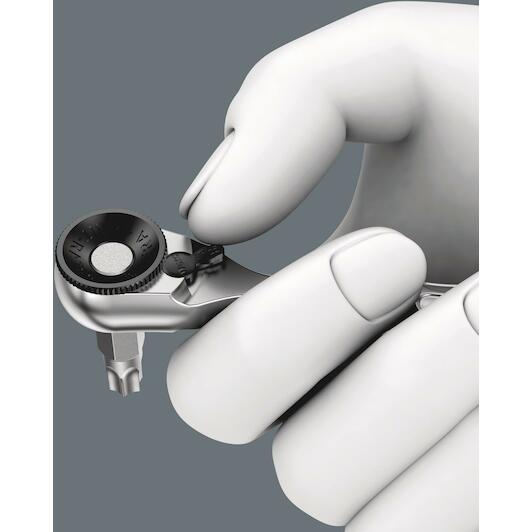

High working speeds can be attained with the Zyklop Mini bit ratchet. The thumb wheel is important, enabling more rapid screwdriving, and the lever of the Zyklop Mini only needs to be used for the final tightening of the screw.

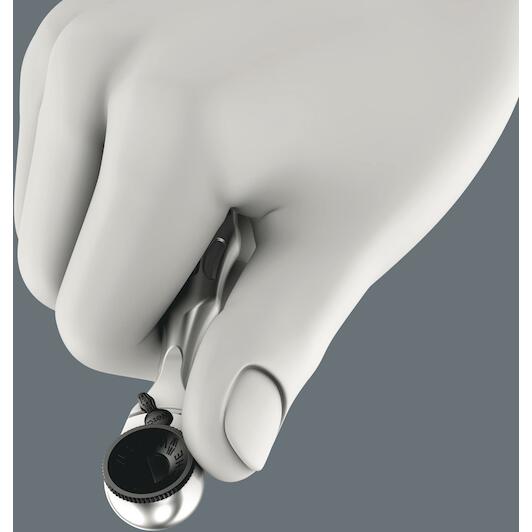

Its slim design makes it ideal for all particularly confined working situations.
The Zyklop Mini 1 can withstand a torque up to 65 Nm. That is far more power than can normally be transferred to such a small tool.

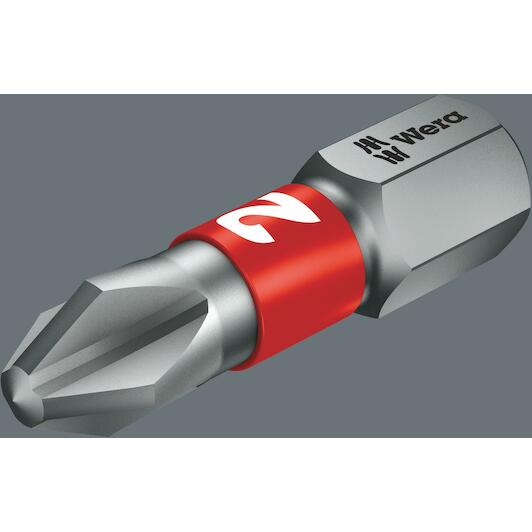

Premium bits with torsion zone into which kinetic energy is dissipated during peak loads. With softer BiTorsion zone to prevent the bit tip from twisting at high loads. This significantly increases product life. Tough design for universal use.

All Features

Bit holder size: 1/4 inch
Type of drive profile (bit): Mixed; Phillips; Pozidriv; Torx; Hexagon
Vde approved: No
Esd: No
Quantity per set: 10
Product range: Wera Bit-Check

Brand WERA
03228353
EAN 4013288195951
Supplier number WERA 05057418001

Frequently asked questions about this product

Answered by specialists

Which bits and ratchet are included in this set?: The set includes an 8001 A 1/4" bit ratchet (87 mm) and 9 BTZ bits (25 mm): PH 1, PH 2, PZ 1, PZ 2, TX 15, TX 20, TX 25, hex 4, and hex 5.
How many teeth does the Zyklop Mini ratchet have?: The ratchet features a fine-tooth mechanism with 60 teeth, providing a low return angle of only 6° for confined spaces.
What is the advantage of the included Bitorsion bits?: Bitorsion bits feature a dedicated torsion zone that absorbs peak loads, significantly increasing bit durability and service life.
Can the ratchet be used with 1/4" square sockets?: Yes, by using a 1/4" hex-to-square socket adaptor (such as the Wera 870/1), standard 1/4" sockets can be attached.
Is this set certified for VDE or ESD applications?: No, this set is neither VDE-insulated nor ESD-safe, making it unsuitable for live electrical installations.
