Scope of delivery
- 867/1 BTZ TORX® bits, TX 10 x 25 mm
Product description
BiTorsion bits for TORX® socket screws with torsion zone into which kinetic energy is dissipated during peak loads. This significantly increases the product life. Best possible service life with the matching holder. Tough, for universal use. 1/4" hexagonal, suitable for holding tools as per DIN ISO 1173-D 6.3.
- For recessed TORX® screws
- BiTorsion zone to absorb peak loads
- Considerable reduction in the risk of breakage, significant increase in service life
- Tough for hard materials
- 1/4" hexagon drive (Wera connecting series 1)
Application
Drive
- 1/4" hexagon, suitable for DIN ISO 1173-D 6.3 bit holders
Design
- BiTorsion for long service life, extra-tough, for universal use. Take it easy tool finder: Output colour coding (green = TORX®) and large stamp to enable the desired bit to be easily located.
Features and benefits
- Peak forces that occur in power tool applications often result in premature wear of bits or damage to the screw head. This usually occurs during initial power-up and the when the screw comes to a standstill. Screwdriving could become more productive and safer if these peak loads could be minimised. The Wera BiTorsion system prevents premature wear. The service life of the tool is extended and the productivity of power tool applications significantly increased.

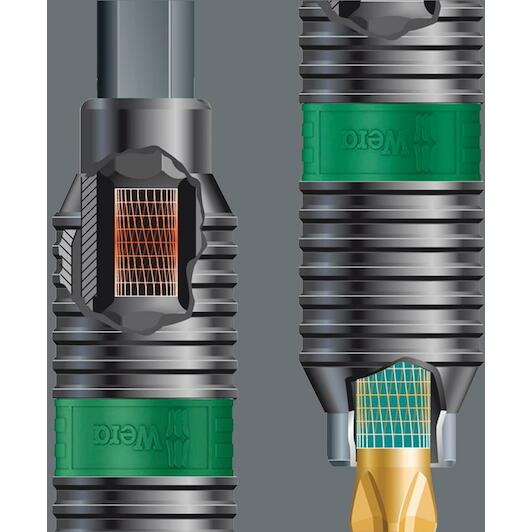

- The effectiveness of the BiTorsion system comes from a combination of two shock-absorbing spring elements. Both, bits as well as holders have a cushioning torsion zone that diverts the kinetic energy away from the drive tip during peak loads.
- The torsion spring integrated into the unique BiTorsion holder absorbs lower levels of peak loads (Phase 1). Any overloading of this spring is effectively prevented by means of a supporting mechanism.
- Higher peak loads are minimised through the torsion effect of the bit shaft (Phase 2).
- Even the service life of conventional bits is enhanced with the use of the BiTorsion holder and the BiTorsion bit also functions in a normal holder.
- The BiTorsion holder and the BiTorsion bit can, of course, be used independently of one another.

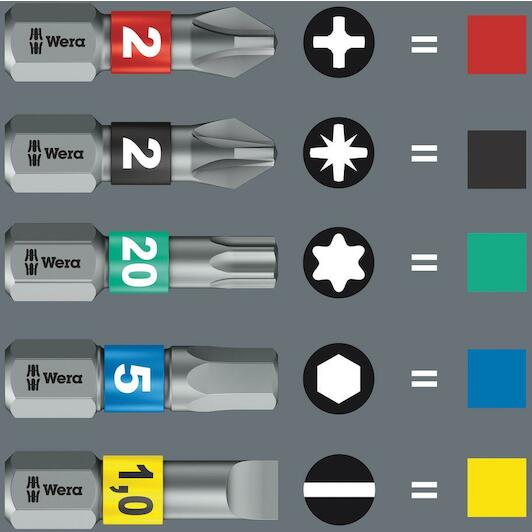

- Take it easy tool finder with colour coding according to profiles and size stamp - for simple and rapid accessing of the required tool.
