WERA 840/4 Z Hex-Plus BO hexagonal BO bits with bore, 3 x 89 mm - 05059642001

Name: WERA 840/4 Z Hex-Plus BO hexagonal BO bits with bore, 3 x 89 mm - 05059642001
Brand: WERA
SKU: 02775793
Price: 12.95 EUR
Availability: PreOrder

Supplier number: WERA 05059642001 | EAN 4013288094315

Recommended Retail Price €21.24

12.95 tax incl.

€10.70 excl. VAT (incl. all environmental contributions)

On order: delivered from 21/10/2026

Delivery by DHL

✆ Talk to a specialist

Product information

€12.95

tax incl.

Key features according to our expert

Length: 89 mm
Blade thickness: Not applicable
Type of drive profile (bit): Hexagon
Connection size (bit): 1/4"
VDE approved: No
Bit profile: HEX 3 mm
Drive profile size (bit): 3 mm
Product Range: Wera Hex-Plus

Scope of delivery

840/4 Z Tamper-proof Hex-Plus BO bits, 3 x 89 mm

Product description

Tough viscous Wera bits for hexagon socket screws for universal use. The Hex-Plus profile offers a greater contact surface in the head of the screw. The notching effect is therefore reduced to a minimum and damage to the screw head more or less eliminated. 1/4" hexagon, suitable for holders as per DIN ISO 1173-F 6.3. Hexagon socket BO screws have a protruding pin in their drive profile. This prevents any unauthorised loosening since the "normal" hex tools cannot move these screws. 1/4" hexagon, suitable for holders as per DIN ISO 1173-F 6.3.

For hexagon socket screws with safety pin (BO = with bore hole)
Hex-Plus allows socket head screws to live longer
Tough for hard materials
1/4" hexagon drive (Wera connecting series 4)

Application

Hexagon socket screws with safety pin (BO = with bore hole)

Drive

1/4" hexagon, suitable for DIN ISO 1173-F 6.3 bit holders

Design

Hex-Plus with bore hole, tough, for universal use

Features and benefits

For hexagon socket screws with safety pin.

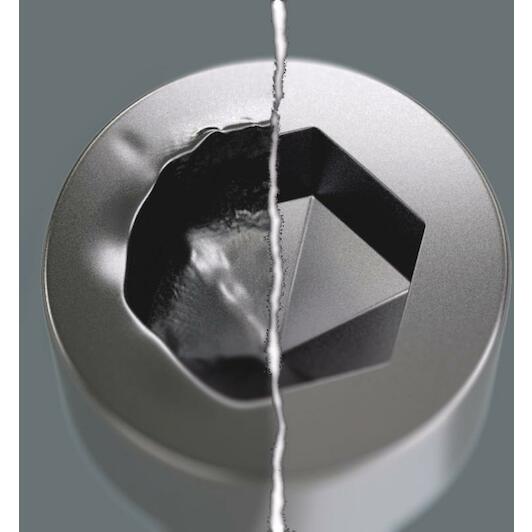

Hexagon socket screws are a problem, because the contact surfaces that transfer the force of the tool to the screw are very narrow. The consequence: the head of the screw can be damaged, usually rounding out the recess. Hex-Plus tools have larger contact surfaces to prevent this, driving from the flats of the recess, rather than the corners. Good to know: Hex-Plus tools fit into every standard hexagon socket screw!
Tough Wera bits prevent the tip from breaking prematurely. Z-bits usually are the bit for universal screwdriving applications.
