Scope of delivery

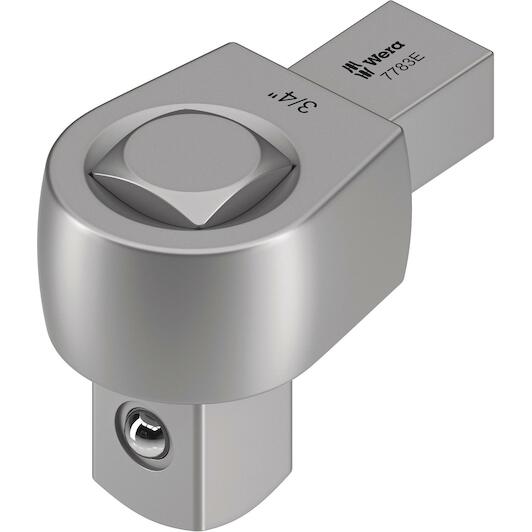

- 7783 E Push-through square insert tool, 14x18 mm, 14x18 x 3/4" x 70 mm
Product description
Square drive insert, for 3/4" square socket wrench inserts and 3/4" connecting parts with square drive; for torque wrenches of the Click-Torque X series with 14x18 mm holder.
- Square head insert tool 14x18 mm
- For torque wrenches from the Click-Torque X series with 14x18 mm mounting
- With push-through square with ball lock.
- With safety pin
- The chrome-vanadium steel version makes the plug-in tools suitable for heavy loads
Application
- For 3/4"square socket wrench inserts and 3/4" connecting parts with square drive
Drive
- 14x18 mm; for torque wrenches of the Click-Torque X and XP series with 14x18 mm holder
Design
- With push-through square with ball lock, forged, chrome-vanadium steel, matt chrome-plated; with safety pin
Features and benefits
- For torque wrenches from the Click-Torque X series with 14x18 mm mounting.
- For 3/4" square socket wrench inserts and 3/4" connecting parts with square drive.

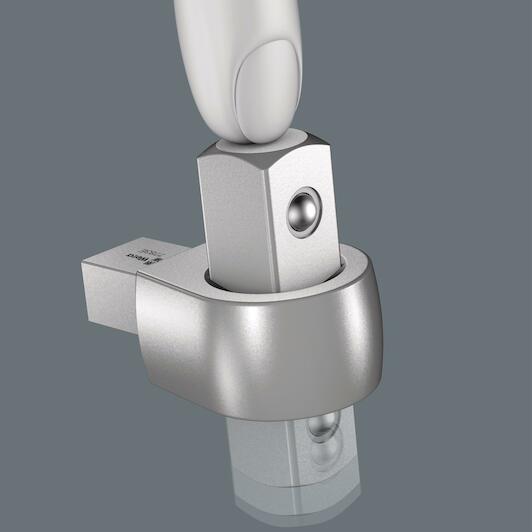

- With push-through square with ball lock.
- Safe working and rapid tool change thanks to the pin lock of the insert tools.
- The insert tools are suitable for high loads thanks to their chrome-vanadium steel design.
