Scope of delivery

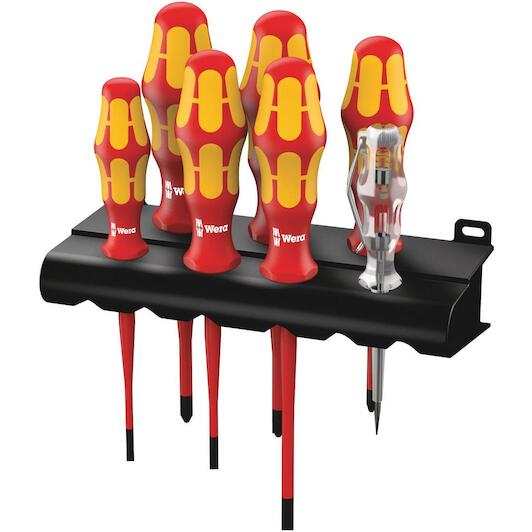

- 160 iS/7 Rack Screwdriver set Kraftform Plus Series 100, single-pole phase tester and rack. With reduced blade diameter, 7 pieces
- 2x 162 iS PH VDE Insulated screwdriver with reduced blade diameter for Phillips screws: PH 1x80 mm, PH 2x100 mm
- 1x 165 iS PZ/S VDE Insulated screwdriver with reduced blade diameter for PlusMinus screws (Pozidriv/slotted): # 2 x 100 mm
- 3x 160 iS VDE Insulated screwdriver with reduced blade diameter for slotted screws: 0.6x3.5x100 mm, 0.8x4x100 mm, 1x5.5x125 mm
- 1x 247 Single-pole phase tester: 0.5 x 3 x 70 mm
Product description
7-piece screwdriver set with reduced shaft diameter and integrated insulation protection so that even low-lying screw and spring elements can be accessed and actuated. Kraftform Plus handle for pleasant, ergonomic working that makes blisters and calluses a thing of the past. Hard gripping zones for high working speeds whereas soft zones ensure high torque transfer. Take it easy Tool Finder: colour coding according to profile and size. The anti-roll feature prevents any bothersome rolling away at the workplace. Including single-pole phase tester and 1 rack for storage.
- Insulated blades for secure work at 1,000 volts
- Smooth hard zones for high speed turning, soft grip zones for high torque transfer

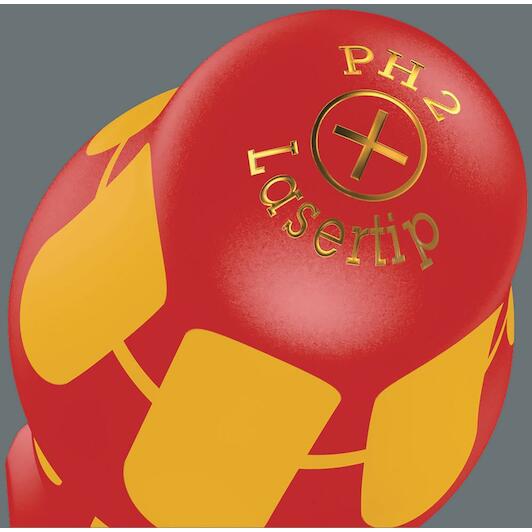

- Take it easy tool finder: colour coding according to profile and size

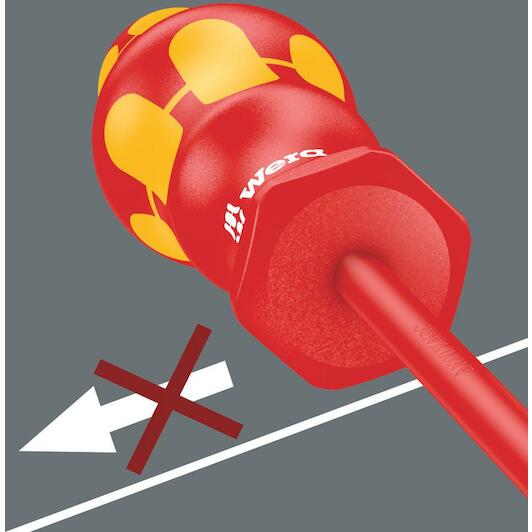

- Hexagonal anti-roll feature against rolling away
- Reduced shaft diameter
Kraftform: The safety screwdriver. With reduced blade diameter, single-pole phase tester and rack. Take it easy tool finder: colour coding according to profile and size stamp.
Application
- Slotted, Phillips and PlusMinus screws (Pozidriv/slotted)
Content
- 7-piece set and rack in display carton
Features and benefits
- The individual testing at 10,000 volts, in accordance with IEC 60900, ensures safe working with loads up to 1,000 volts.
- Reduced blade diameter with integrated protective insulation, allows sunken screws and spring elements to be accessed and actuated, individually tested as per IEC 60900.
- For the use in terminal blocks, control cabinets, switches, relays, sockets etc.

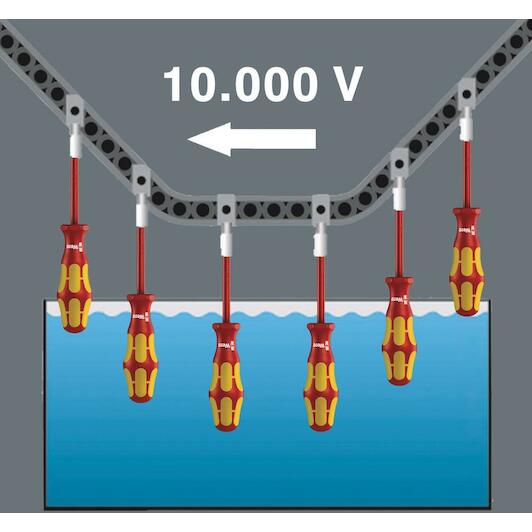

- Our screwdrivers are tested for dielectric strength under a 10,000 volt load to make sure that their most important property, their insulation, has been exhaustively tested. Each individual Wera VDE screwdriver is subjected to this test to guarantee safe working up to 1,000 volts.
- Impact strength tested at -40°C, guaranteeing safety even under extreme conditions.

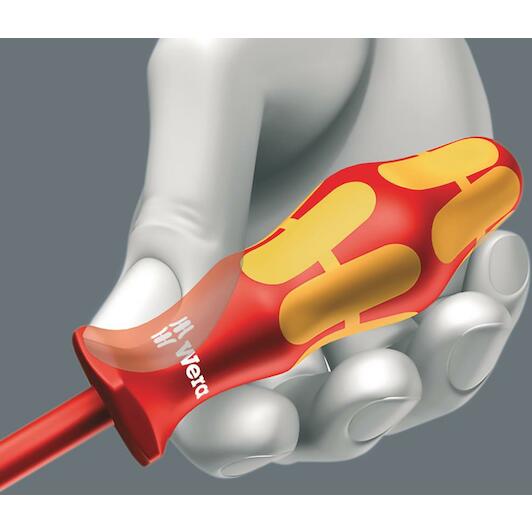

- Wera produces the Kraftform handle out of several materials with different properties. A resistant plastic is used for the core which ensures that the blade is held securely even under high strain. A softer material is used for the coloured soft zones, which provides high frictional resistance and allows the transfer of high forces - resulting in less required screwdriving effort. The red sections with their hard surfaces prevent any "sticking" of the hand to the handle, making rapid repositioning of the hand possible.
- The outstanding design of the Kraftform handle that fits perfectly into the hand prevents hand injuries such as blisters and calluses.
- Screwdrivers with Take it easy tool finder: colour coding according to profile and size stamp.
