What is the maximum load capacity of this swivel castor?

The swivel castor has a maximum dynamic load capacity of 150 kg per wheel.

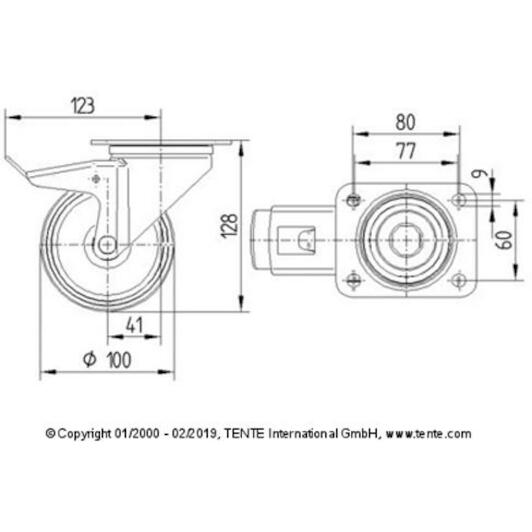

What are the plate dimensions and hole spacing?

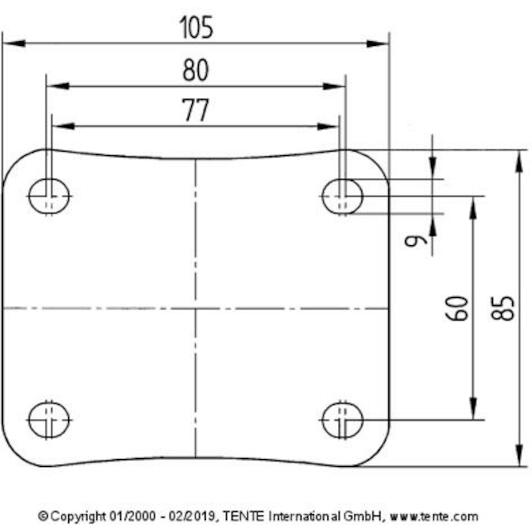

The top plate measures 105 x 85 mm with a hole spacing of 80/77 x 60 mm.

What is the total overall height of this castor?

The overall height of the swivel castor is 128 mm.

Does this Tente castor feature a brake?

Yes, this model is equipped with a total lock brake to prevent both swivel and roll movements.

What materials are used for this castor?

The housing is made of stainless steel and the wheel centre is made of nylon (polyamide).

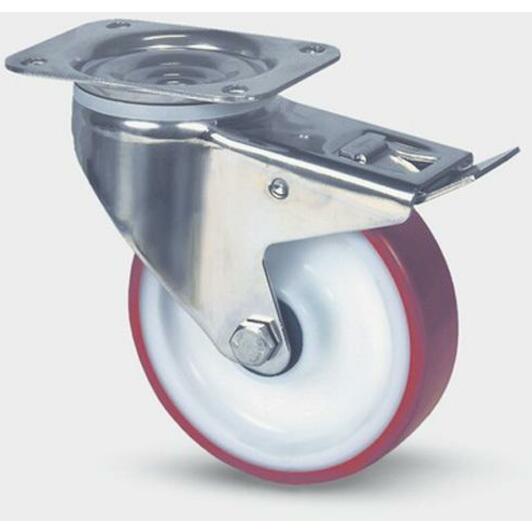

TENTE 8477-UA-D-1-00-P62 swivel castor with brake nylon/stainless steel 100 mm max. 150 kg - 00304256KK

Name: TENTE 8477-UA-D-1-00-P62 swivel castor with brake nylon/stainless steel 100 mm max. 150 kg - 00304256KK
Brand: TENTE
SKU: 02292923
Price: 39.8 EUR
Availability: PreOrder

Supplier number: TENTE 00304256KK | EAN 4031582312812

39.80 tax incl.

€32.89 excl. VAT (incl. all environmental contributions)

On order: delivered from 17/10/2026

Delivery by DHL

✆ Talk to a specialist

Effortless mobility with the Tente swivel castor

Practical benefits

Excellent resistance against corrosion: The stainless steel housing ensures you can operate reliably in damp or demanding environments without rusting issues.
Reliable and secure locking: You can quickly lock your trolley or workbench in place with the integrated brake for a stable work surface.
Smooth transport under load: The durable 100 mm nylon wheel allows you to maneuver effortlessly with loads of up to 150 kg.

In a nutshell

The right choise for

Keep your transport trolleys and workbenches moving smoothly with the Tente 8477-UAD-100-P62 swivel castor with brake. Featuring a durable stainless steel housing, it performs reliably in damp or washdown environments such as laboratories and food processing areas without corroding. The hard-wearing 100 mm nylon wheel delivers low rolling resistance on flat industrial floors and effortlessly handles loads up to 150 kg. Whenever you need stationary stability for tasks, the integrated total lock brake immediately secures both swivelling and rolling motion. With an overall height of 128 mm and a 105 x 85 mm top plate, this castor easily mounts to your mobile equipment.

Product information FAQ

€39.80

tax incl.

Key features according to our expert

Wheel diameter: 100 mm
Max. load capacity: 150 kg
Total height: 128 mm
Mounting plate (L x W): 105 x 85 mm mm
Bolt hole spacing: 77/80 x 60 mm
Material (wheel): Stainless steel
Wheel type: Swivel castor with brake

Product description:

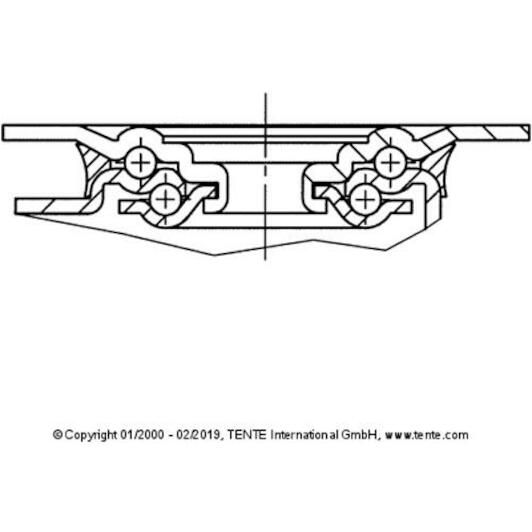

Swivel castor with total lock, tail end of castor, double ball bearing swivel head, wheel axle with nut, plate fitting.
Wheel centre made of Polyamide, Tread: Polyurethane, purple, roller bearing, stainless

All Features

Wheel diameter: 100 mm
Max. load capacity: 150 kg
Total height: 128 mm
Mounting plate (l x w): 105 x 85 mm mm
Bolt hole spacing: 77/80 x 60 mm
Material (wheel): Stainless steel
Wheel type: Swivel castor with brake

Brand TENTE
02292923
EAN 4031582312812
Supplier number TENTE 00304256KK

Frequently asked questions about this product

Answered by specialists

What is the maximum load capacity of this swivel castor?: The swivel castor has a maximum dynamic load capacity of 150 kg per wheel.
What are the plate dimensions and hole spacing?: The top plate measures 105 x 85 mm with a hole spacing of 80/77 x 60 mm.
What is the total overall height of this castor?: The overall height of the swivel castor is 128 mm.
Does this Tente castor feature a brake?: Yes, this model is equipped with a total lock brake to prevent both swivel and roll movements.
What materials are used for this castor?: The housing is made of stainless steel and the wheel centre is made of nylon (polyamide).
