What is the maximum load capacity of this swivel castor?

This Tente swivel castor has a maximum load capacity of 500 kg.

What are the dimensions of the mounting plate?

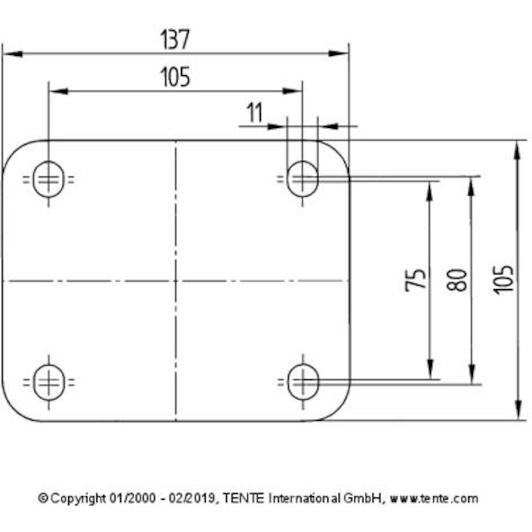

The mounting plate measures 137 x 105 mm with a bolt hole spacing of 105 x 75/80 mm.

What is the total overall height of the castor?

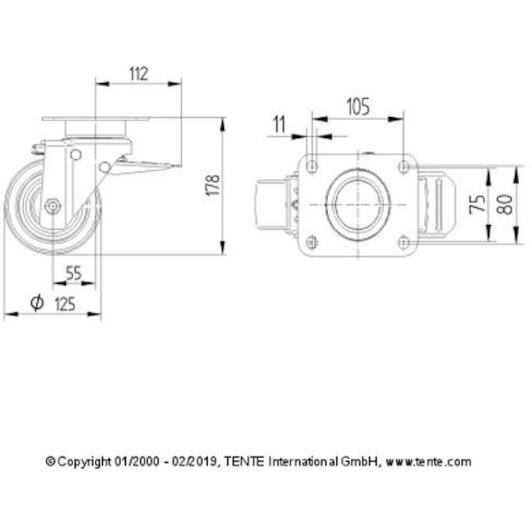

The total height is 178 mm with a wheel diameter of 125 mm.

What material is the tread made of?

The tread is made of cast polyurethane (PUR) on an aluminium wheel centre.

Does this swivel castor include a brake?

Yes, this model is equipped with an integrated total lock brake.

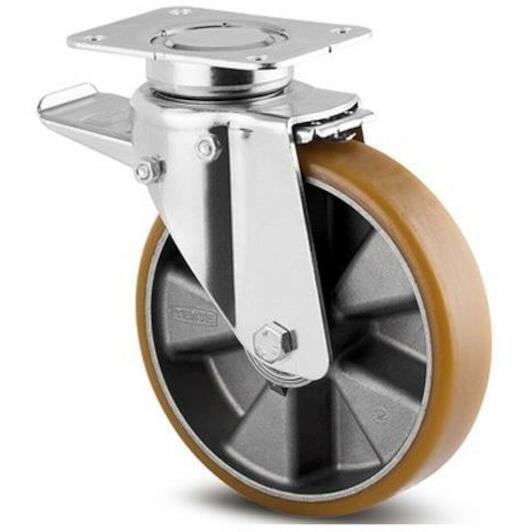

TENTE 3642-ITP-125-P63 swivel castor pur with brake 500 kg - 00837562GL

Name: TENTE 3642-ITP-125-P63 swivel castor pur with brake 500 kg - 00837562GL
Brand: TENTE
SKU: 69940124
Price: 131.6 EUR
Availability: InStock

Supplier number: TENTE 00837562GL | EAN 4031582366389

131.60 tax incl.

€108.76 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Delivery by DHL

✆ Talk to a specialist

Smooth heavy-duty workshop transport

Practical benefits

High capacity of 500 kg: With a maximum capacity of 500 kg, you can move heavy industrial equipment and trolleys effortlessly.
Durable polyurethane tread: The cast polyurethane tread protects your facility floors while providing a quiet, smooth roll.
Secure stopping with brake: You lock mobile machinery and transport trolleys firmly in place using the integrated total brake.

In a nutshell

The right choise for

With the Tente 3642-ITP-125-P63 swivel castor, you move heavy industrial loads smoothly and with complete control. Thanks to a high load capacity of up to 500 kg, you easily manoeuvre heavy transport trolleys, machinery, and mobile workbenches around your facility. The durable polyurethane tread rolls quietly while protecting hard floors from marks and damage. Using the integrated total lock brake, you instantly and firmly secure your mobile equipment in place, preventing unintended movement. The sturdy 137 x 105 mm mounting plate ensures a solid installation with an overall height of 178 mm.

Product information FAQ

€131.60

In stock - tax incl.

Key features according to our expert

Wheel diameter: 125 mm
Max. load capacity: 500 kg
Total height: 178 mm
Mounting plate (L x W): 137 x 105 mm mm
Bolt hole spacing: 105 x 75/80 mm
Material (Wheel): Polyurethane
Wheel type: Swivel castor with brake

Product description:

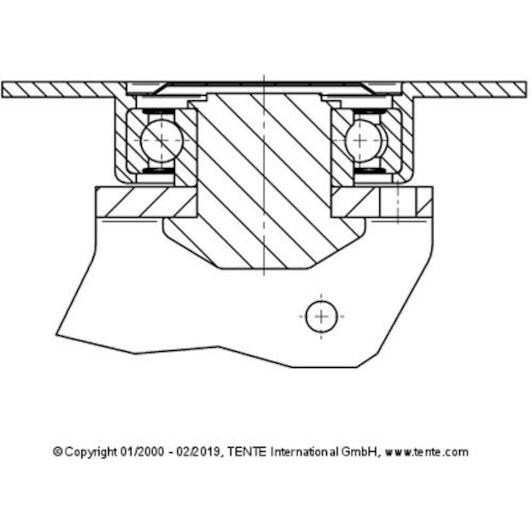

Swivel castor with total lock, head end of castor, housing made of heavy pressed steel, bright zinc plated, blue passivated, precision ball bearing swivel head, sealed, wheel axle with nut, plate fitting.
Wheel centre made of Aluminium, Tread: Polyurethane, casted, precision ball bearing

All Features

Wheel diameter: 125 mm
Max. load capacity: 500 kg
Total height: 178 mm
Mounting plate (l x w): 137 x 105 mm mm
Bolt hole spacing: 105 x 75/80 mm
Material (wheel): Polyurethane
Wheel type: Swivel castor with brake

Brand TENTE
69940124
EAN 4031582366389
Supplier number TENTE 00837562GL

Frequently asked questions about this product

Answered by specialists

What is the maximum load capacity of this swivel castor?: This Tente swivel castor has a maximum load capacity of 500 kg.
What are the dimensions of the mounting plate?: The mounting plate measures 137 x 105 mm with a bolt hole spacing of 105 x 75/80 mm.
What is the total overall height of the castor?: The total height is 178 mm with a wheel diameter of 125 mm.
What material is the tread made of?: The tread is made of cast polyurethane (PUR) on an aluminium wheel centre.
Does this swivel castor include a brake?: Yes, this model is equipped with an integrated total lock brake.
