What drill bit diameter is required for this frame plug?

You need to use a drill bit with a 10 mm diameter.

Which screw bit fits the included screw?

The countersunk screw head features a TX40 Torx drive.

Which base materials is the Spit B-LONG suitable for?

This universal anchor is suitable for brick and aerated concrete.

Is the screw included with this plug?

Yes, the plastic construction plug comes complete with a matching screw.

What is the maximum fixture thickness for this anchor?

With a total length of 140 mm, it accommodates a fixture thickness up to 90 mm.

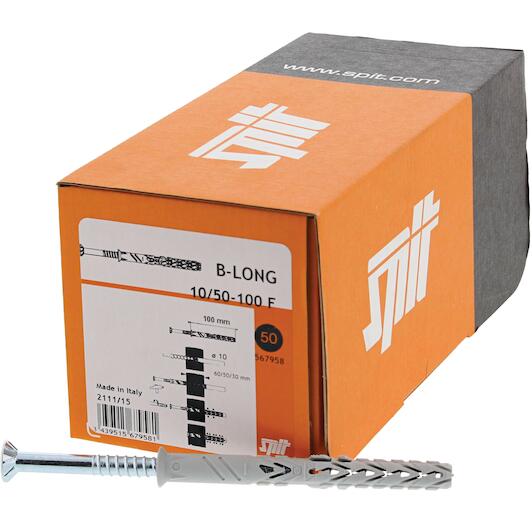

SPIT 567960 B-LONG universal zinc-plated construction plug with countersunk head and Torx connection 10x140/90 F TX40

Name: SPIT 567960 B-LONG universal zinc-plated construction plug with countersunk head and Torx connection 10x140/90 F TX40
Brand: SPIT
SKU: 02380604
Price: 1.49 EUR
Availability: InStock

Supplier number: SPIT 567960 | EAN 3439515679604

1.49 tax incl.

€1.23 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 50.

Delivery by DHL

✆ Talk to a specialist

Alternative to this product

FISCHER 522701 construction plug SXRL 10 x...

1.17

€0.97 excl. VAT

Delivery time average 10 days.

Dependable fastening with the Spit frame anchor

Practical benefits

Versatile multi-material anchoring: You achieve solid fixings across aerated concrete, brickwork, and masonry for various construction jobs.
Secure anti-rotation expansion: The uniform expansion of the plastic plug prevents twisting inside the drill hole during installation.
Clean and flush finish: The countersunk head with TX40 drive allows you to mount fixtures smoothly and flush against surfaces.

In a nutshell

The right choise for

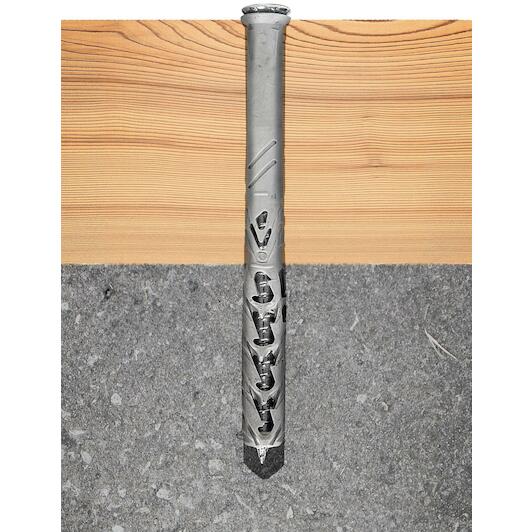

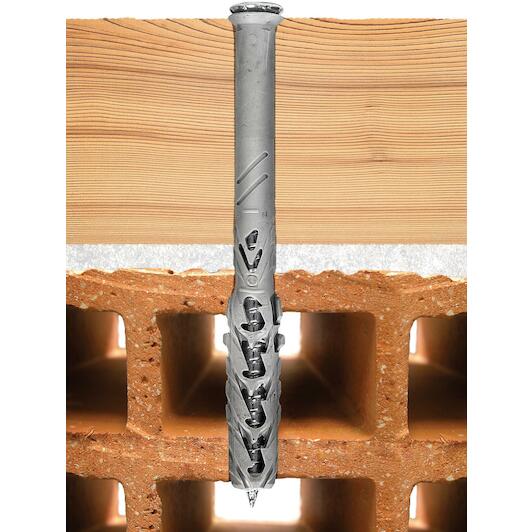

With the Spit b-long construction anchor, you achieve dependable fixings in building materials such as brickwork and aerated concrete. This plastic frame plug comes complete with a matching zinc-plated screw, featuring a total length of 140 mm and accommodating fixtures up to 90 mm thick. Its uniform expansion prevents unwanted rotation inside the 10 mm drill hole during tightening. Combined with the TX40 drive for optimal torque transmission, the countersunk head ensures a clean, flush finish on timber battens, window frames, and mounting rails.

Product information FAQ

€1.49

In stock - tax incl.

Key features according to our expert

Length (Wall plug): 140 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
type (screw head): T40
Drilling diameter: 10 mm

Product description

Universal galvanised construction plug with countersunk head and Torx connection
Versatile frame & frame anchor with high performance
ETA-approved for fixings in concrete and masonry
Uniform expansion prevents rotation during application
Short anchor depth: only 40 mm for concrete, therefore less fixing time
High load values: up to 220 kg in concrete
Extra long lengths: fixing thickness up to 205 mm
Suitable for use in multiple materials, for a wide range of applications
Easy to install
Fire and seismic test reports

Applications

Windows
Doors
Fences

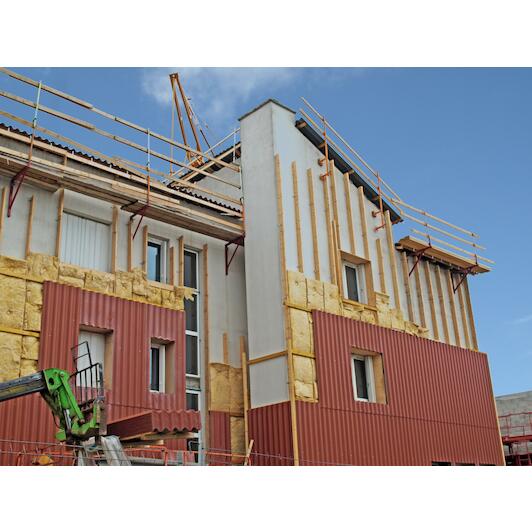

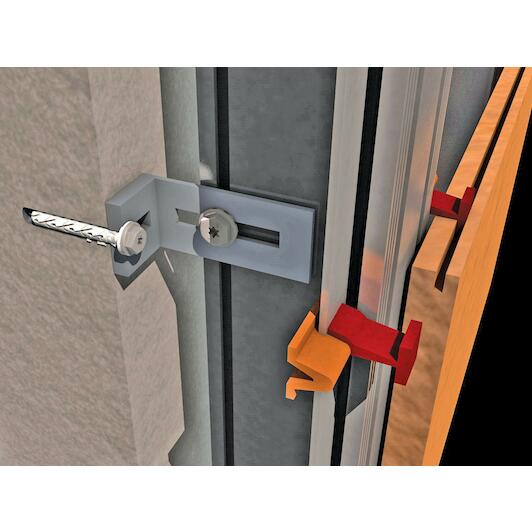

Ventilated facades
Cladding
Metal framing
Insulation supports
Metal brackets and cross members

All Features

Length (wall plug): 140 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
Type (screw head): T40
Drilling diameter: 10 mm
Anchor diameter: 10.0 mm
Anchoring depth: 50 mm
Maximum trapping: 90 mm
Min. edge distance (mm): 100 mm
Min. anchor distance: 200 mm
Base material colour: PURPLE
Head type: Countersunk head
Product material: Nylon
Tightening torque: 16 N-m
Bit size: TX 40
Anchor length: 140 mm
Min. thickness of base material: 100 mm
Minimum drilling depth: 60 mm
Drill diameter: 10.0 mm
Maximum installation depth: 50 mm
Throughput diameter: 10 mm
Surface treatment: Galvanised
Treatment: Galvanised

Brand SPIT
02380604
EAN 3439515679604
Supplier number SPIT 567960

Frequently asked questions about this product

Answered by specialists

What drill bit diameter is required for this frame plug?: You need to use a drill bit with a 10 mm diameter.
Which screw bit fits the included screw?: The countersunk screw head features a TX40 Torx drive.
Which base materials is the Spit B-LONG suitable for?: This universal anchor is suitable for brick and aerated concrete.
Is the screw included with this plug?: Yes, the plastic construction plug comes complete with a matching screw.
What is the maximum fixture thickness for this anchor?: With a total length of 140 mm, it accommodates a fixture thickness up to 90 mm.
