What drill bit diameter is required for this plug?

You need a drill bit with a 10 mm diameter.

What type of screw drive is required?

The included screw has a countersunk head with a TX40 drive.

What is the maximum fixture thickness for this plug?

The maximum fixing thickness is 30 mm for an overall plug length of 80 mm.

Which base materials is this plug suitable for?

It is suitable for materials such as concrete, brick, and aerated concrete.

Is the screw included with the plug?

Yes, the matching zinc-plated screw is included.

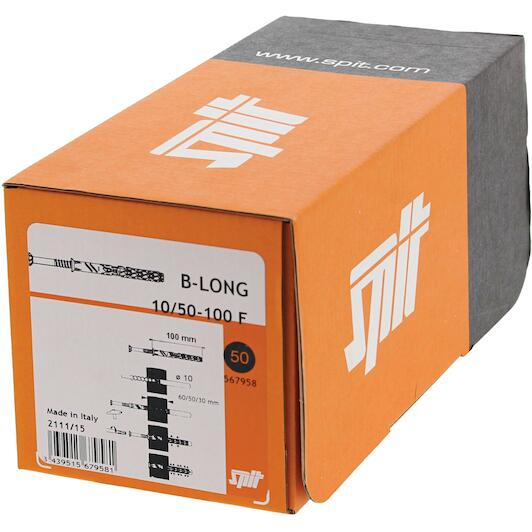

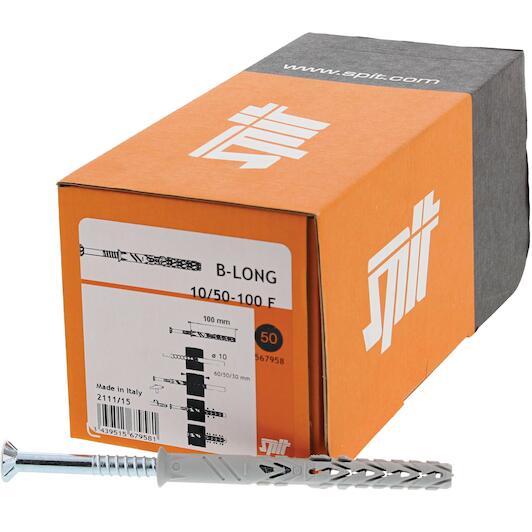

SPIT 567957 B-LONG universal zinc-plated construction plug with countersunk head and Torx connection 10x80/30 F TX40

Name: SPIT 567957 B-LONG universal zinc-plated construction plug with countersunk head and Torx connection 10x80/30 F TX40
Brand: SPIT
SKU: 02454520
Price: 0.98 EUR
Availability: InStock

Supplier number: SPIT 567957 | EAN 3439515679574

0.98 tax incl.

€0.81 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 50.

Delivery by DHL

✆ Talk to a specialist

Alternative to this product

FISCHER 522698 construction plug SXRL 10 x...

0.73

€0.60 excl. VAT

Delivery time average 10 days.

Spit B-LONG frame plug for secure anchorings

Practical benefits

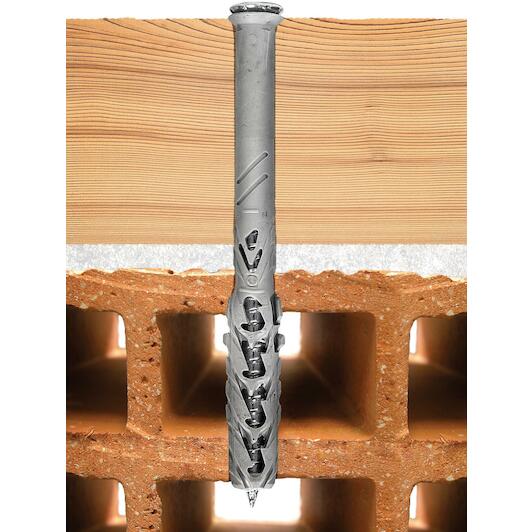

Strong hold in masonry: You anchor frames securely into concrete, brick, and aerated concrete thanks to the reliable expansion design.
Fast installation without spinning: The uniform expansion prevents the plug from rotating inside the drill hole, ensuring immediate grip.
Flush countersunk finish: Featuring a countersunk head with a TX40 drive, you achieve clean, flush fastenings with optimal torque transfer.

In a nutshell

The right choise for

With the Spit b-long frame plug 10X80/30 F, you secure frames, battens, and structural fixtures firmly into concrete, brick, and aerated concrete. The engineered expansion design of the 80 mm plastic plug expands evenly inside a 10 mm drilled hole, preventing annoying spinning during installation. Equipped with a matching zinc-plated countersunk screw and a TX40 drive, it delivers optimal torque transfer without cam-out. This enables you to fasten materials up to 30 mm thick with a clean, fully flush surface finish.

Product information FAQ

€0.98

In stock - tax incl.

Key features according to our expert

Length (Wall plug): 80 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
type (screw head): T40
Drilling diameter: 10 mm

Product description

Universal galvanised construction plug with countersunk head and Torx connection
Versatile frame & frame anchor with high performance
ETA-approved for fixings in concrete and masonry
Uniform expansion prevents rotation during application

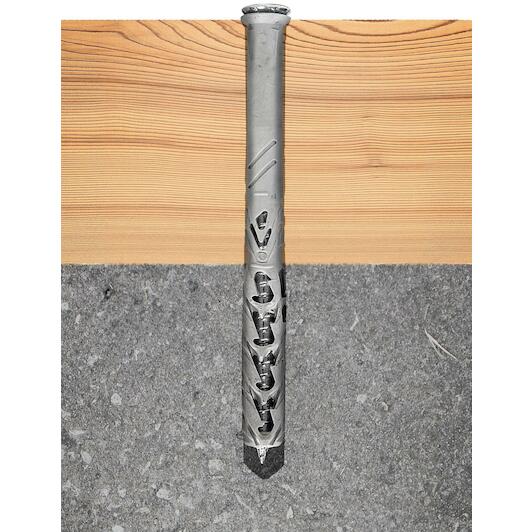

Short anchor depth: only 40 mm for concrete, therefore less fixing time
High load values: up to 220 kg in concrete
Extra long lengths: fixing thickness up to 205 mm
Suitable for use in multiple materials, for a wide range of applications
Easy to install
Fire and seismic test reports

Applications

Windows
Doors
Fences

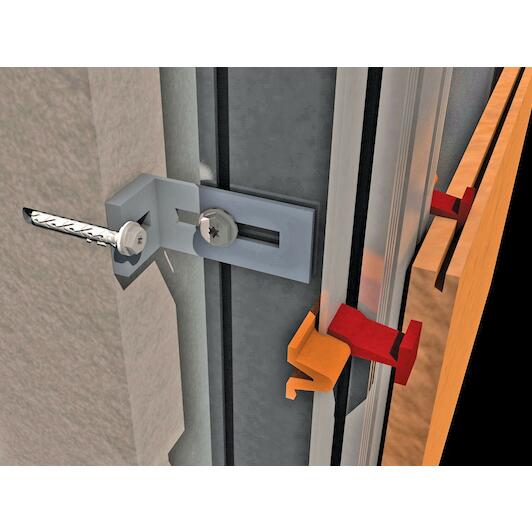

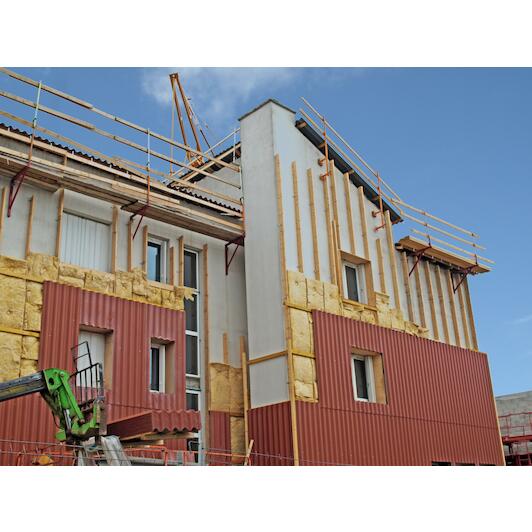

Ventilated facades
Cladding
Metal framing
Insulation supports
Metal brackets and cross members

All Features

Length (wall plug): 80 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
Type (screw head): T40
Drilling diameter: 10 mm
Anchor diameter: 10.0 mm
Anchoring depth: 50 mm
Maximum trapping: 30 mm
Min. edge distance (mm): 100 mm
Min. anchor distance: 200 mm
Base material colour: PURPLE
Head type: Countersunk head
Product material: Nylon
Tightening torque: 16 N-m
Bit size: TX 40
Anchor length: 80 mm
Min. thickness of base material: 100 mm
Minimum drilling depth: 60 mm
Drill diameter: 10.0 mm
Maximum installation depth: 50 mm
Throughput diameter: 10 mm
Surface treatment: Galvanised
Treatment: Galvanised

Brand SPIT
02454520
EAN 3439515679574
Supplier number SPIT 567957

Frequently asked questions about this product

Answered by specialists

What drill bit diameter is required for this plug?: You need a drill bit with a 10 mm diameter.
What type of screw drive is required?: The included screw has a countersunk head with a TX40 drive.
What is the maximum fixture thickness for this plug?: The maximum fixing thickness is 30 mm for an overall plug length of 80 mm.
Which base materials is this plug suitable for?: It is suitable for materials such as concrete, brick, and aerated concrete.
Is the screw included with the plug?: Yes, the matching zinc-plated screw is included.
