What drill diameter is required for this anchor?

You need to use a drill bit with an 8 mm diameter.

Which screw bit size is needed for installation?

The countersunk screw requires a T30 (TX30) drive bit.

Is the screw included with the frame anchor?

Yes, this frame plug comes supplied with the matching zinc-plated screw.

What is the maximum fixture thickness for this model?

The maximum fixture thickness for this 8x60/10 mm model is 10 mm.

Which base materials is the Spit B-LONG suitable for?

It is suitable for fixings in masonry, brick, aerated concrete, and concrete.

SPIT 567950 B-LONG universal zinc-plated construction plug with countersunk head and Torx connection 8x60/10 F TX30

Name: SPIT 567950 B-LONG universal zinc-plated construction plug with countersunk head and Torx connection 8x60/10 F TX30
Brand: SPIT
SKU: 02454505
Price: 0.76 EUR
Availability: InStock

Supplier number: SPIT 567950 | EAN 3439515679505

0.76 tax incl.

€0.63 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 50.

Delivery by DHL

✆ Talk to a specialist

Reliable anchoring across diverse masonry substrates

Practical benefits

Strong multi-material grip: You achieve a dependable hold in brickwork and aerated concrete with the uniform expansion design.
Quick and easy installation: The shallow embedment depth allows you to drill faster and complete fixing tasks with less effort.
Secure TX30 screw drive: The countersunk head with a TX30 drive ensures you transfer torque smoothly without bit slippage.

In a nutshell

The right choise for

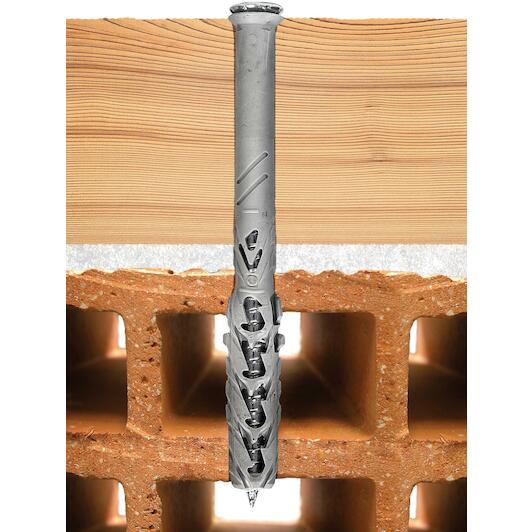

With the Spit b-long universal frame plug, you achieve a reliable anchor in materials such as brickwork, aerated concrete, and concrete. This 8 mm diameter and 60 mm long plastic anchor is ideal for fast push-through installation of wooden battens or profiles up to a fixture thickness of 10 mm. Thanks to its uniform expansion, it provides a solid grip inside the drilled hole. The included zinc-plated screw features a countersunk head with a T30 drive, allowing smooth insertion without bit slippage for a neat, flush finish.

Product information FAQ

€0.76

In stock - tax incl.

Key features according to our expert

Length (Wall plug): 60 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
type (screw head): T30
Drilling diameter: 8 mm

Product description

Universal galvanised construction plug with countersunk head and Torx connection
Versatile frame & frame anchor with high performance
ETA-approved for fixings in concrete and masonry
Uniform expansion prevents rotation during application

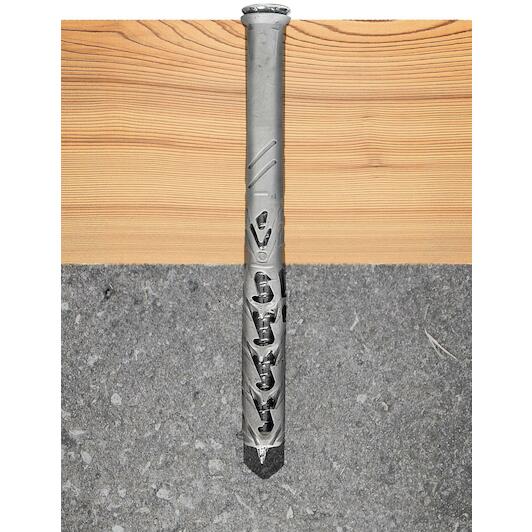

Short anchor depth: only 40 mm for concrete, therefore less fixing time
High load values: up to 220 kg in concrete
Extra long lengths: fixing thickness up to 205 mm
Suitable for use in multiple materials, for a wide range of applications
Easy to install
Fire and seismic test reports

Applications

Windows
Doors
Fences

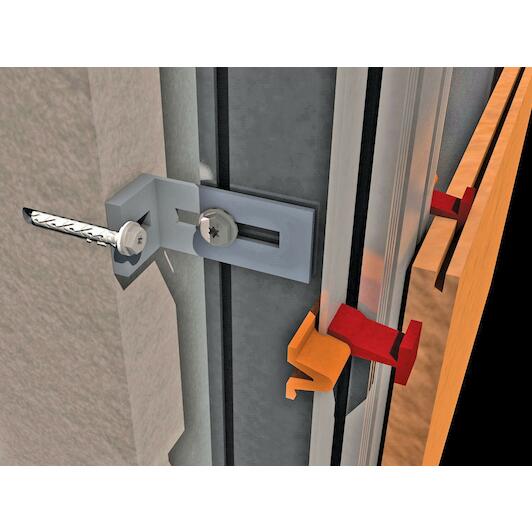

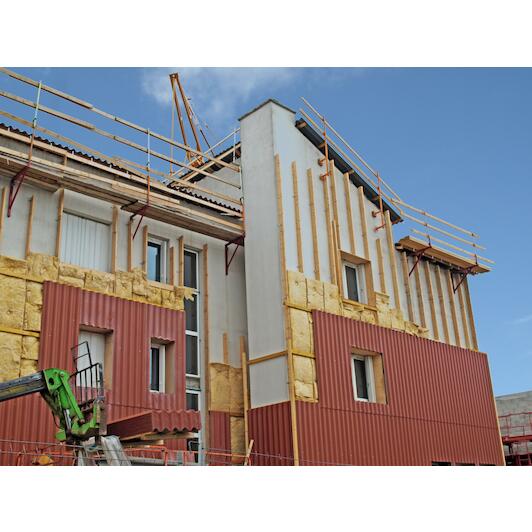

Ventilated facades
Cladding

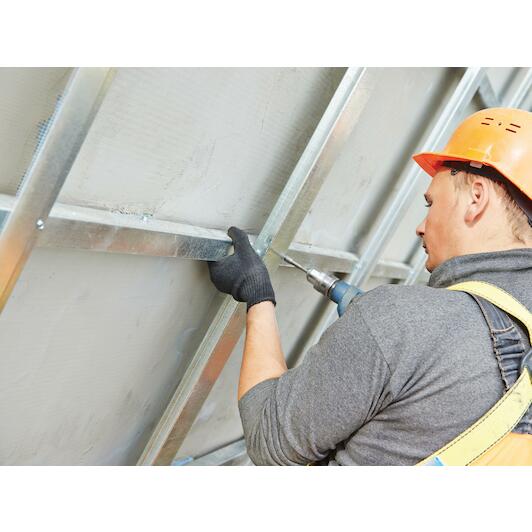

Metal framing
Insulation supports
Metal brackets and cross members

All Features

Length (wall plug): 60 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
Type (screw head): T30
Drilling diameter: 8 mm
Anchor diameter: 8.0 mm
Anchoring depth: 50 mm
Maximum trapping: 10 mm
Min. edge distance (mm): 100 mm
Min. anchor distance: 200 mm
Base material colour: PURPLE
Head type: Countersunk head
Product material: Nylon
Tightening torque: 12 N-m
Bit size: TX 30
Anchor length: 60 mm
Min. thickness of base material: 100 mm
Minimum drilling depth: 60 mm
Drill diameter: 8.0 mm
Maximum installation depth: 50 mm
Throughput diameter: 8 mm
Surface treatment: Galvanised
Treatment: Galvanised

Brand SPIT
02454505
EAN 3439515679505
Supplier number SPIT 567950

Frequently asked questions about this product

Answered by specialists

What drill diameter is required for this anchor?: You need to use a drill bit with an 8 mm diameter.
Which screw bit size is needed for installation?: The countersunk screw requires a T30 (TX30) drive bit.
Is the screw included with the frame anchor?: Yes, this frame plug comes supplied with the matching zinc-plated screw.
What is the maximum fixture thickness for this model?: The maximum fixture thickness for this 8x60/10 mm model is 10 mm.
Which base materials is the Spit B-LONG suitable for?: It is suitable for fixings in masonry, brick, aerated concrete, and concrete.
