SPIT 566681 PROLONG universal construction plug with countersunk head 16x165/75H (SW19 + washer)

Supplier number: SPIT 566681 | EAN 3439515666819
7.38 tax incl.
€6.10 excl. VAT (incl. all environmental contributions)
On order: delivered from 12/10/2026

The minimum purchase order quantity for the product is 25.

  • Delivery by DHL


€7.38
tax incl.

Product information

Key features according to our expert

  • Length (Wall plug): 165 mm
  • Material (wall plug): Plastic
  • Wall plug type: Hammer-in plug
  • With screw: Yes
  • Application: Brick; Aerated concrete
  • type (screw head): T40
  • Drilling diameter: 16 mm

Product description

  • Universal construction plug with hexagonal head
  • Frame anchor especially designed for hollow materials
  • ETA-approved for fixings in concrete and masonry

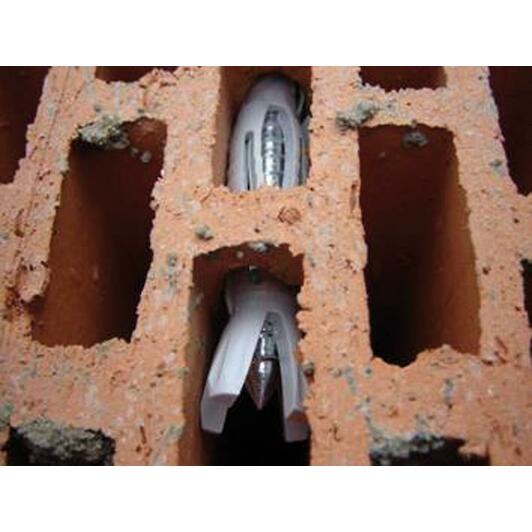

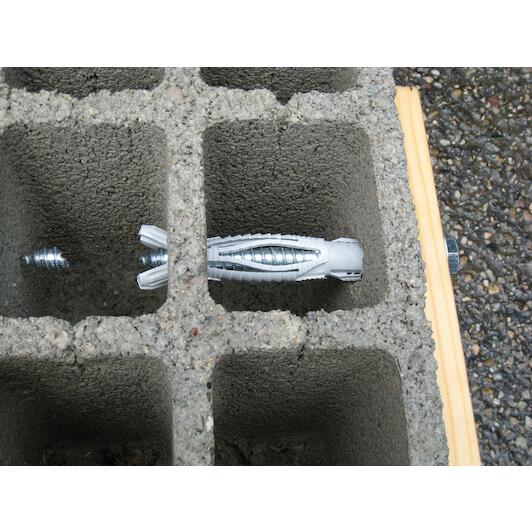

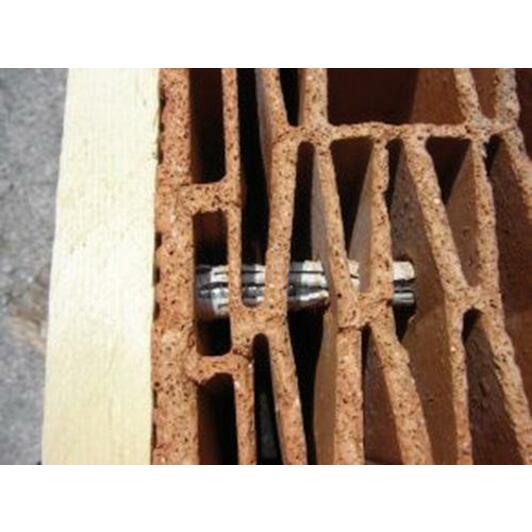

  • Unique design of sleeve and spreader element to reach the second cavity for maximum grip in hollow materials
  • Different lengths and head types available
  • Suitable for use in multiple materials, for a wide range of applications

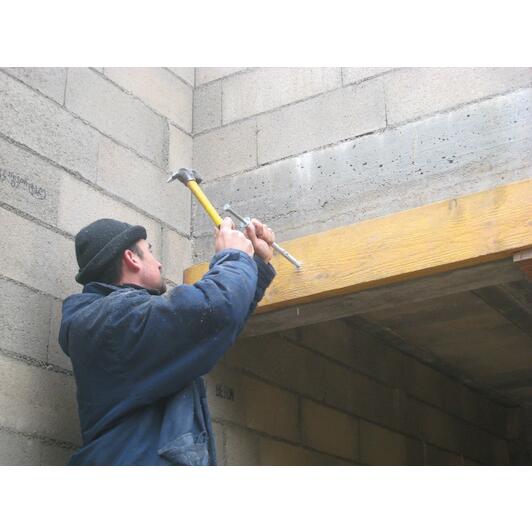

  • Easy to install

Applications

  • Windows
  • Doors
  • Fences

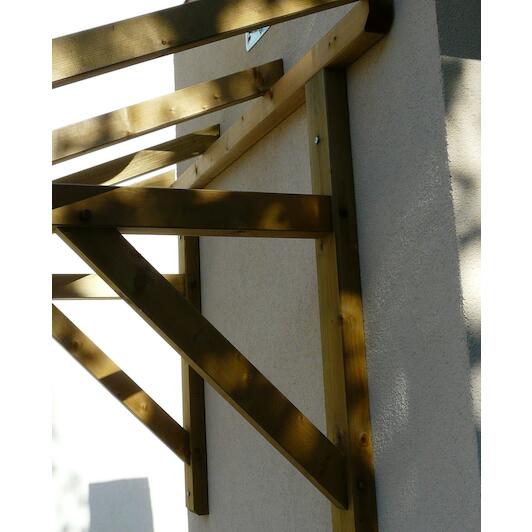

  • Timber frame

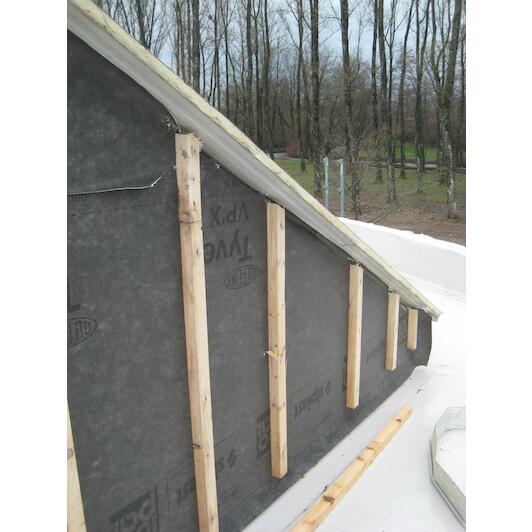

  • Cladding
  • Frames

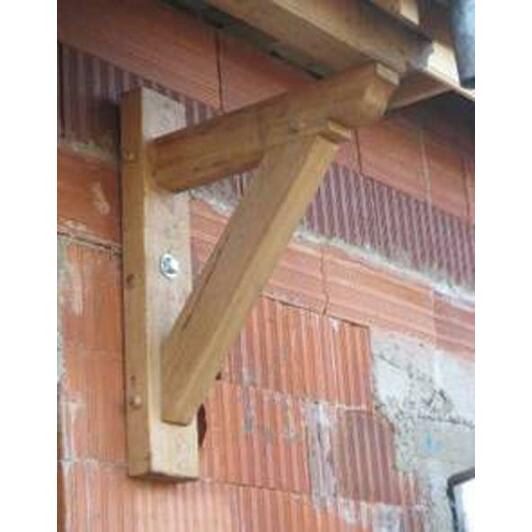

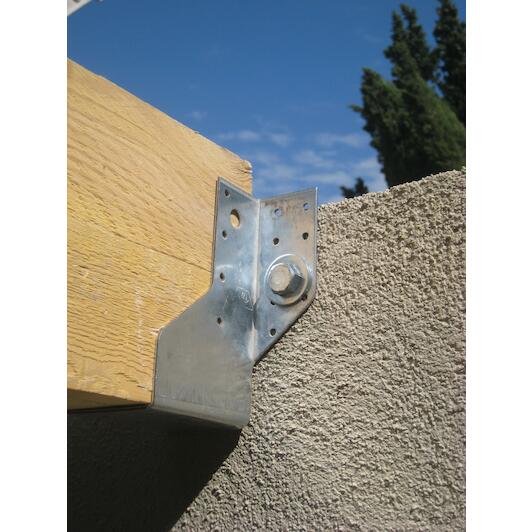

  • Beams

Documents

All Features

Length (wall plug)
165 mm
Material (wall plug)
Plastic
Wall plug type
Hammer-in plug
With screw
Yes
Application
Brick; Aerated concrete
Type (screw head)
T40
Drilling diameter
16 mm
Maximum trapping
75 mm
Bit size
SW 19
Anchoring depth
90 mm
Product material
Nylon
Anchor diameter
16.0 mm
Min. anchor distance
200 mm
Base material colour
PURPLE
Head type
Hexagon head
Min. thickness of base material
200 mm
Tightening torque
20 N-m
Anchor length
165 mm
Minimum drilling depth
110 mm
Drill diameter
16.0 mm
Base material
Aerated concrete, Hollow blocks, Hollow bricks, Non-cracked concrete, Solid brick
Maximum installation depth
90 mm
Throughput diameter
16 mm
Key size
19.0 mm
Min. edge distance (mm)
105 mm
  • Brand SPIT
  • EAN 3439515666819
  • Supplier number SPIT 566681
