SPIT 566680 PROLONG universal construction plug with countersunk head 16x145/55H (SW19 + washer)

Name: SPIT 566680 PROLONG universal construction plug with countersunk head 16x145/55H (SW19 + washer)
Brand: SPIT
SKU: 02697201
Price: 6.34 EUR
Availability: PreOrder

6.34 tax incl.

€5.24 excl. VAT (incl. all environmental contributions)

SPIT 566680 PROLONG universal construction plug with countersunk head 16x145/55H (SW19 + washer)

€6.34

On order: delivered from 22/05/2026

each

The minimum purchase order quantity for the product is 25.

Delivery by DHL

Product information
Additional info

Product description

Universal construction plug with hexagonal head
Frame anchor especially designed for hollow materials
ETA-approved for fixings in concrete and masonry

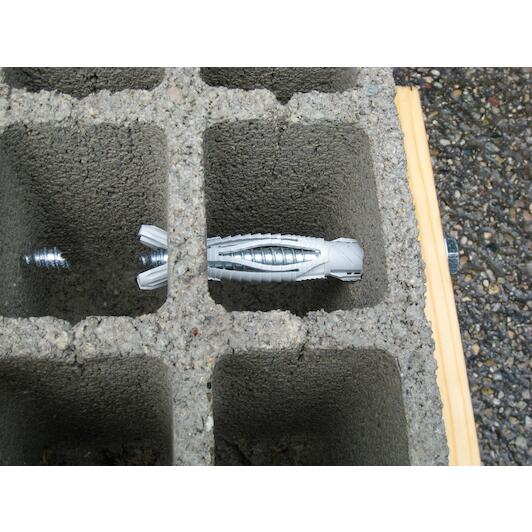

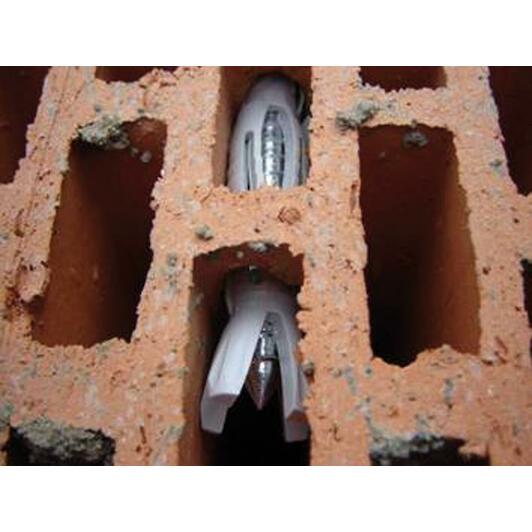

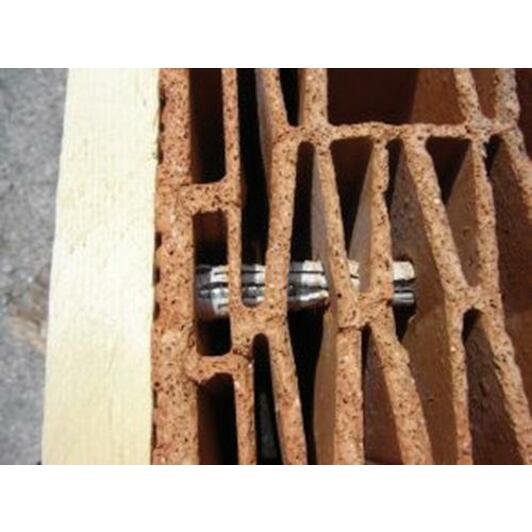

Unique design of sleeve and spreader element to reach the second cavity for maximum grip in hollow materials
Different lengths and head types available
Suitable for use in multiple materials, for a wide range of applications
Easy to install

Applications

Windows
Doors
Fences
Timber frame
Cladding
Frames
Beams

Key features according to our expert

Length (Wall plug): 145 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
type (screw head): T40; Spanner size 19 mm
Drilling diameter: 16 mm

Specifications / All features

Brand: SPIT
02697201
EAN: 3439515666802
Supplier number: SPIT 566680

Length (wall plug): 145 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
Type (screw head): T40; Spanner size 19 mm
Drilling diameter: 16 mm
Maximum trapping: 55 mm
Bit size: SW 19
Anchoring depth: 90 mm
Product material: Nylon
Anchor diameter: 16.0 mm
Min. anchor distance: 200 mm
Base material colour: PURPLE
Head type: Hexagon head
Min. thickness of base material: 200 mm
Tightening torque: 20 N-m
Anchor length: 145 mm
Minimum drilling depth: 110 mm
Drill diameter: 16.0 mm
Base material: Aerated concrete, Hollow blocks, Hollow bricks, Non-cracked concrete, Solid brick
Maximum installation depth: 90 mm
Throughput diameter: 16 mm
Key size: 19.0 mm
Min. edge distance (mm): 105 mm
