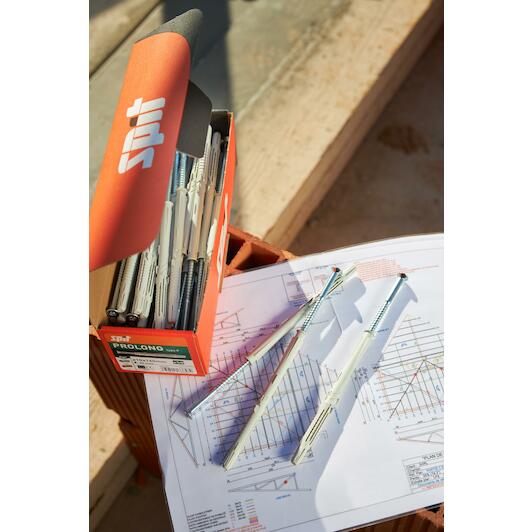

SPIT 566653 PROLONG universal zinc-plated construction plug with hexagonal head 10x80/10 F TX40

This product has been discontinued.

Successor to this product

spit_566653
SPIT 567957 B-LONG universal zinc-plated construction plug...
View product

Product description

  • Universal galvanised construction plug with countersunk head
  • Frame anchor especially designed for hollow materials
  • ETA-approved for fixings in concrete and masonry
  • Unique design of sleeve and spreader element to reach the second cavity for maximum grip in hollow materials
  • Different lengths and head types available
  • Suitable for use in multiple materials, for a wide range of applications
  • Easy to install

Applications

  • Windows
  • Doors
  • Fences
  • Ventilated facades
  • Cladding
  • Insulation supports
  • Frames
Key features according to our expert
  • With screw: Yes
  • Drilling diameter: 10 mm
  • Application: Brick; Aerated concrete
  • type (screw head): T40
  • Wall plug type: Hammer-in plug
  • Material (wall plug): Plastic
  • Length (Wall plug): 80 mm
Specifications / All features
  • Brand: SPIT
  • EAN: 3439515666536
  • Supplier number: SPIT 566653
With screw
Yes
Drilling diameter
10 mm
Application
Brick; Aerated concrete
Type (screw head)
T40
Wall plug type
Hammer-in plug
Material (wall plug)
Plastic
Length (wall plug)
80 mm
Tightening torque
10 N-m
Product material
Nylon
Head type
Countersunk head
Base material colour
PURPLE
Min. anchor distance
50 mm
Anchor diameter
10.0 mm
Maximum trapping
10 mm
Anchoring depth
70 mm
Bit size
TX 40
Anchor length
80 mm
Min. thickness of base material
140 mm
Minimum drilling depth
80 mm
Drill diameter
10.0 mm
Minimum placement depth
70.0 mm
Throughput diameter
10 mm
Min. edge distance (mm)
60 mm
