What is this internally threaded anchor used for?

This internal thread socket is used with chemical injection mortar for heavy-duty anchoring in solid base materials such as concrete.

What are the thread size and length of this anchor?

The anchor features an M8 internal thread and has an overall length of 60 mm.

What is the benefit of an internally threaded socket?

It allows a flush surface finish and makes it easy to install, replace, or remove metric bolts and threaded studs.

What material and finish does this anchor have?

It is made of zinc-plated steel (ZN), providing corrosion protection for indoor and sheltered outdoor installations.

Which chemical mortar should be used with this anchor?

It is designed to work with Spit chemical injection mortars, such as the Epcon and Viper series.

SPIT 062770 ATP chemical female threaded anchor M8 60

Name: SPIT 062770 ATP chemical female threaded anchor M8 60
Brand: SPIT
SKU: 02507903
Price: 5.34 EUR
Availability: PreOrder

Supplier number: SPIT 062770 | EAN 3439510627709

5.34 tax incl.

€4.41 excl. VAT (incl. all environmental contributions)

On order: delivered from 07/10/2026

The minimum purchase order quantity for the product is 10.

Delivery by DHL

✆ Talk to a specialist

Reliable heavy-duty chemical female anchor fastening

Practical benefits

High load-bearing capacity: The large bonding surface with injection mortar delivers exceptional holding power, even with shallow embedment depths and close edge distances.
Versatile Spit ATP threading: The M8 internal thread lets you use various bolt types, heads, and steel grades for a completely flush finish.
Clean internal thread protection: A specialized protective cap prevents mortar and debris from entering the internal threads during installation.

In a nutshell

The right choise for

With the Spit epcon atp M8X60 zn internally threaded chemical anchor, you create a solid, heavy-duty fixing in solid materials such as concrete. The generous bonding surface with the injection mortar delivers high holding power, even when working with shallow embedment depths and close edge clearances. Its M8 internal thread ensures a clean, flush surface finish and provides the flexibility to easily install, change, or remove metric bolts and threaded rods. Manufactured from zinc-plated steel for corrosion resistance in indoor and sheltered outdoor environments, it includes a dedicated cap to prevent mortar and dirt from fouling the threads during setting.

Product information FAQ

€5.34

tax incl.

Key features according to our expert

Wire dimension: 8

Product description

Strong internal threaded anchor for use with SPIT injection mortar
High-performance internal threaded anchor for heavy loads, used with SPIT mortars
Small installation depth and short edge distance
Large surface area between injection mortar and substrate results in large loads
Internal thread so that various fasteners, heads and steel types can be used
Special cap prevents contamination of the thread and allows countersunk finishing

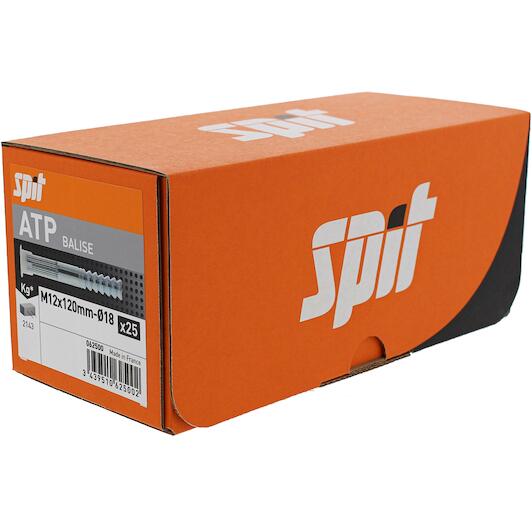

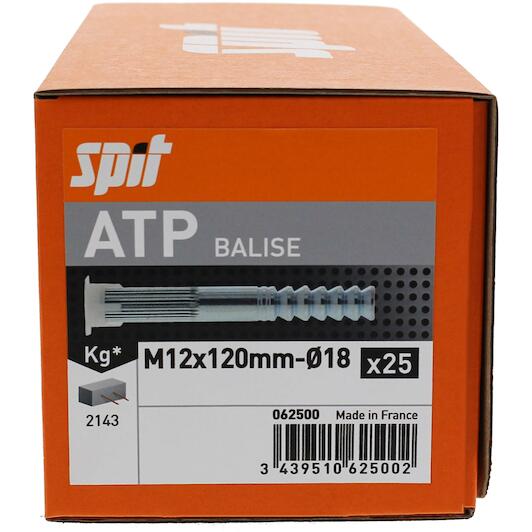

Special length in M12 for signage in asphalt applications

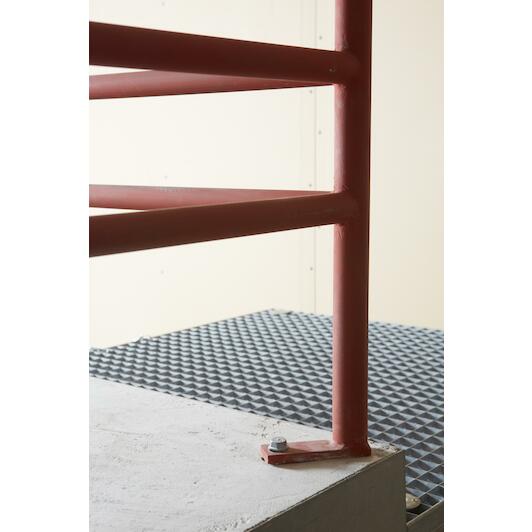

Applications

High-end production line
Installation of equipment and machinery
Temporary fixings
Steel structures
Warehouses
Fencing for stadiums
Signposting

All Features

Wire dimension: 8
Min. thickness of base material: 100 mm
Health and safety: Eye protection, Gloves, Hearing protection, Helmet
Min. edge distance (mm): 40 mm
Product material: Carbon steel
Head type: Flat head
Base material colour: GREY
Min. anchor distance: 40 mm
Internal thread diameter: 8.0 mm
Anchor diameter: 8.0 mm
Anchoring depth: 60 mm
Tightening torque: 10 N-m
Minimum drilling depth: 65 mm
Drill diameter: 14.0 mm
Base material: Asphalt, Non-cracked concrete, Solid blocks, Solid brick, Stone
Maximum installation depth: 60 mm
Throughput diameter: 9 mm
Anchor length: 60 mm
Wire diameter: M8
Treatment: Galvanised

Brand SPIT
02507903
EAN 3439510627709
Supplier number SPIT 062770

Frequently asked questions about this product

Answered by specialists

What is this internally threaded anchor used for?: This internal thread socket is used with chemical injection mortar for heavy-duty anchoring in solid base materials such as concrete.
What are the thread size and length of this anchor?: The anchor features an M8 internal thread and has an overall length of 60 mm.
What is the benefit of an internally threaded socket?: It allows a flush surface finish and makes it easy to install, replace, or remove metric bolts and threaded studs.
What material and finish does this anchor have?: It is made of zinc-plated steel (ZN), providing corrosion protection for indoor and sheltered outdoor installations.
Which chemical mortar should be used with this anchor?: It is designed to work with Spit chemical injection mortars, such as the Epcon and Viper series.
