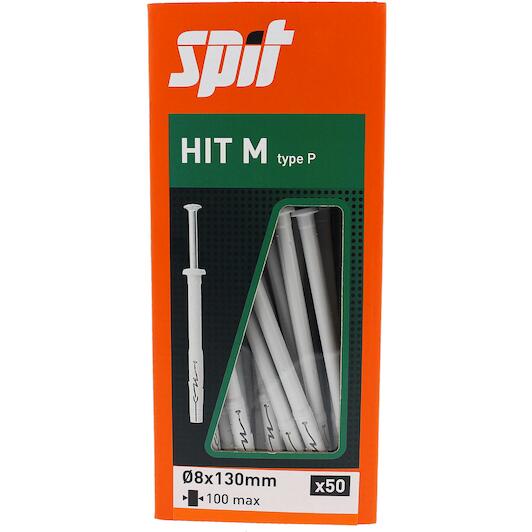

SPIT 060094 dowel with collar HIT M 8x130/100 P

Name: SPIT 060094 dowel with collar HIT M 8x130/100 P
Brand: SPIT
SKU: 02619957
Price: 0.57 EUR
Availability: InStock

Supplier number: SPIT 060094 | EAN 3439510600948

0.57 tax incl.

€0.47 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 50.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Fast anchoring with Spit HIT M

Practical benefits

Quick hammer-in installation: You drive the plug directly into the drilled hole with a hammer, saving valuable time on repetitive fixings.
Reliable hold in masonry: The expansion zone grips firmly inside solid and hollow materials like brick and aerated concrete.
Flush and neat finish: The integrated collar prevents the plug from slipping too deep and ensures firm clamping against the fixture.

In a nutshell

The right choise for

Complete your through-fixing jobs quickly and reliably with the Spit hit M 8X130/100 p hammer-in plug. Ideal for securing timber battens, skirting boards, or frames onto brickwork, aerated concrete, and concrete, this plastic plug delivers dependable holding power. Simply push the 132 mm plug through your fixture into the 8 mm drill hole and drive the included screw home with a hammer. This speeds up repetitive installations significantly. The flat collar ensures firm clamping for fixtures up to 100 mm thick while preventing the plug from sinking too deep. Thanks to the PZ2 screw head, you can also easily unscrew or adjust it anytime.

Product information FAQ

€0.57

In stock - tax incl.

Key features according to our expert

Length (Wall plug): 132 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
With collar: Yes
Application: Brick; Aerated concrete
type (screw head): PZ2
Drilling diameter: 8 mm

Product description

High-performance percussion plug with collar for in all materials
Easy to install and suitable for all materials
CE certified percussion plug
Spreading through hammer blows
Perfect pressure due to flat collar
Very good performance in hollow materials
Flat finish due to countersunk head
Available with large collar (Hit M-P20)

Applications

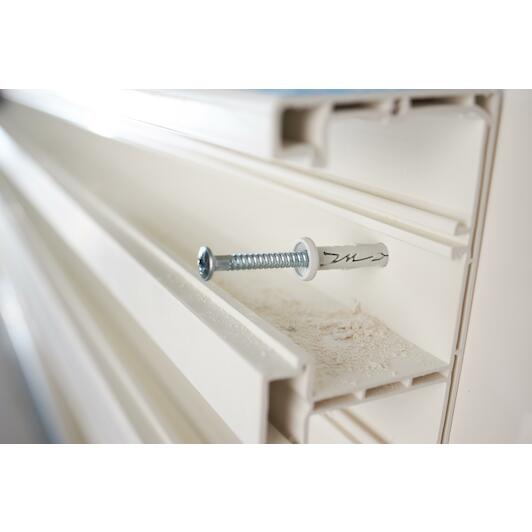

Electrical installations

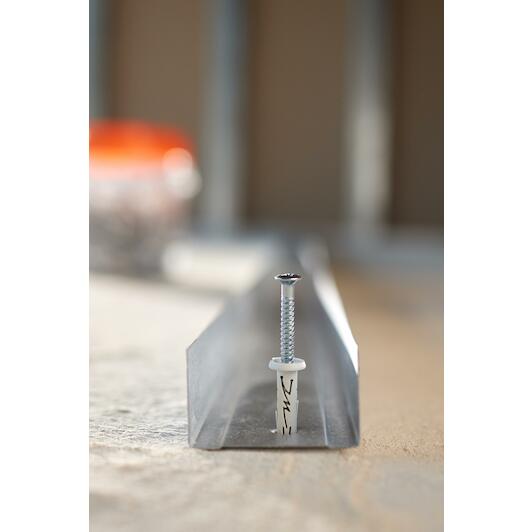

Metal stud profile
Beams and rafters
Signalling
Insulation supports

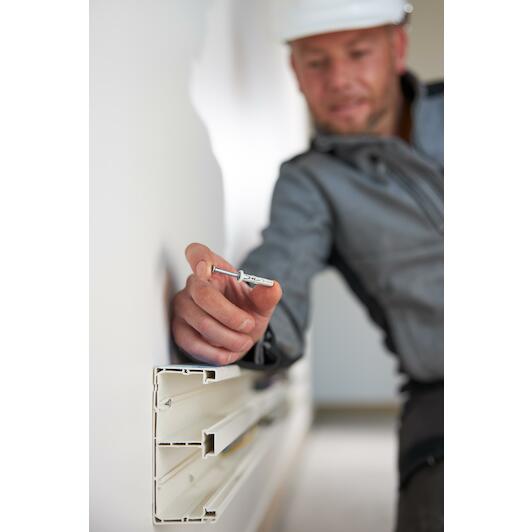

Skirting boards

Documents

⤓ Declaration of Conformity PDF

All Features

Length (wall plug): 132 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
With collar: Yes
Application: Brick; Aerated concrete
Type (screw head): PZ2
Drilling diameter: 8 mm
Maximum trapping: 100 mm
Bit size: PZ 2
Anchoring depth: 30 mm
Product material: Nylon
Anchor diameter: 8.0 mm
Min. anchor distance: 100 mm
Base material colour: PURPLE
Head type: Flat head
Minimum drilling depth: 40 mm
Min. thickness of base material: 100 mm
Surface treatment: Galvanised
Drill diameter: 8.0 mm
Maximum installation depth: 30 mm
Throughput diameter: 8 mm
Anchor length: 132 mm
Head diameter: 13.0 mm
Min. edge distance (mm): 100 mm

Brand SPIT
02619957
EAN 3439510600948
Supplier number SPIT 060094

Frequently asked questions about this product

Answered by specialists

What drill bit diameter is required for this hammer-in plug?: You need an 8 mm diameter drill bit for this hammer-in plug.
Which base materials are suitable for the Spit HIT M?: This hammer-in plug is suitable for solid brick, aerated concrete, and concrete.
What drive type does the included screw have?: The screw features a PZ2 drive, allowing you to easily unscrew or adjust it with a screwdriver.
What is the benefit of the flat collar (P-head)?: The flat collar ensures firm clamping of the fixture and prevents the plug from slipping too deep into the drill hole.

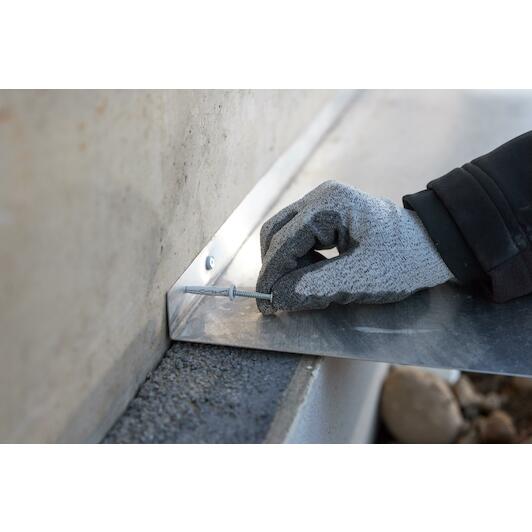

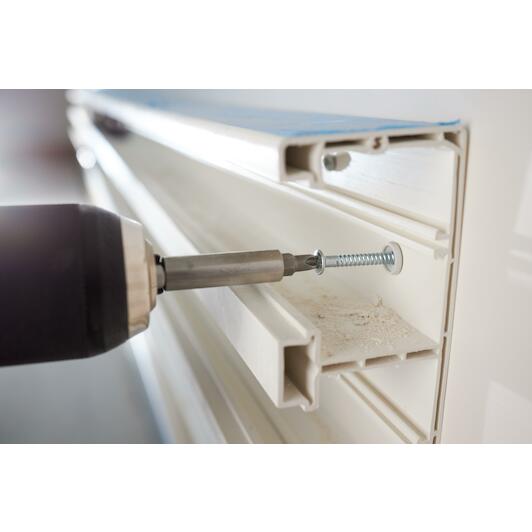

How do you install this hammer-in plug?: Insert the plug through the fixture into the drilled hole and simply drive the screw home using a hammer or screwdriver.
