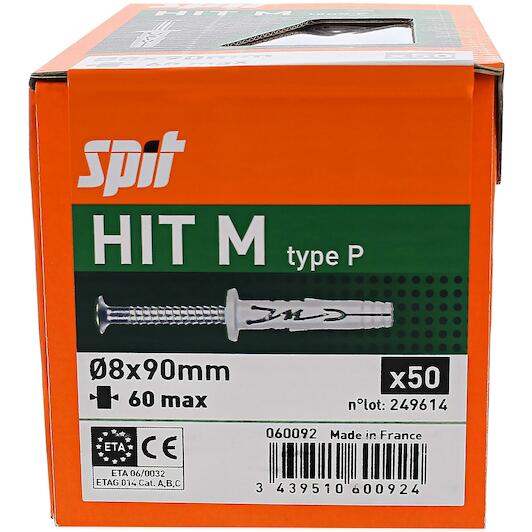

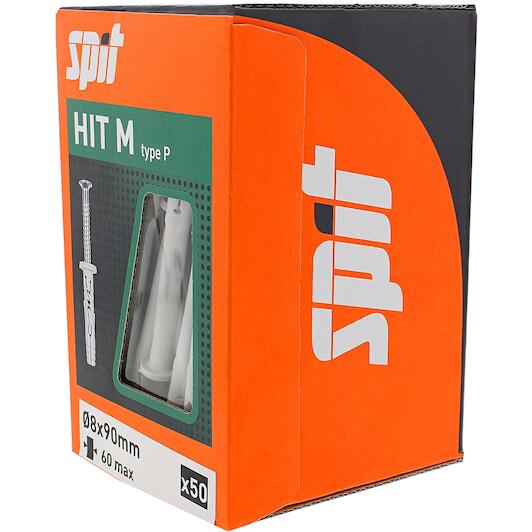

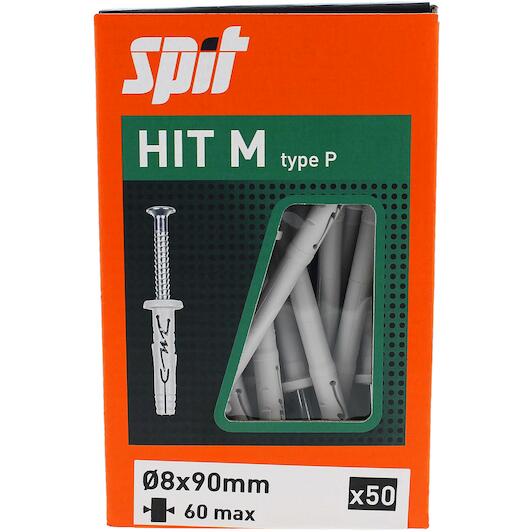

SPIT 060092 hammerhead plug with collar HIT M 8x90/60 P

Name: SPIT 060092 hammerhead plug with collar HIT M 8x90/60 P
Brand: SPIT
SKU: 02608971
Price: 0.3 EUR
Availability: InStock

Supplier number: SPIT 060092 | EAN 3439510600924

0.30 tax incl.

€0.25 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 50.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

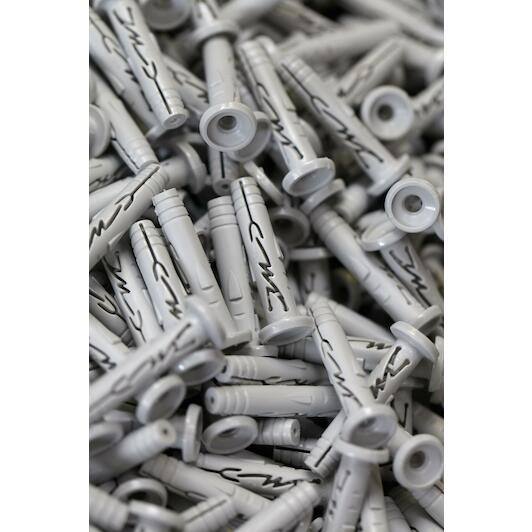

Spit hammer anchor for secure fixing

Practical benefits

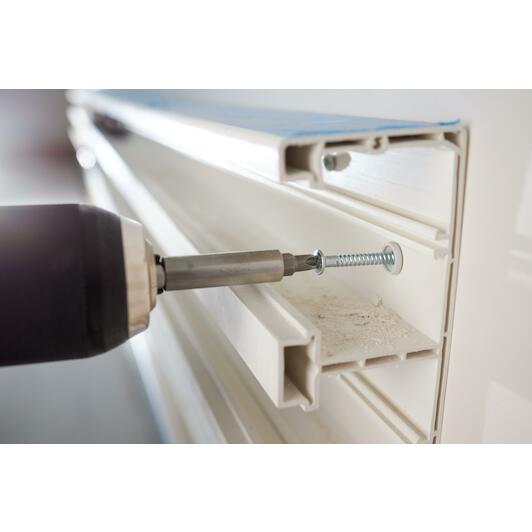

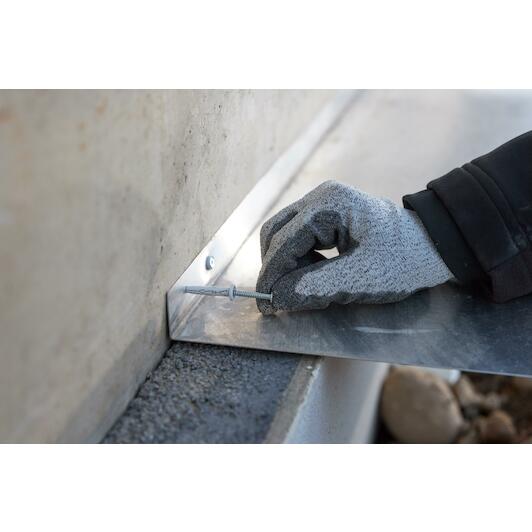

Fast and simple installation: You drive the plug in quickly using a hammer or tighten it effortlessly with a screwdriver.
Dependable holding power: Expansion occurs smoothly inside brick and aerated concrete once the plug is fully inserted.
Neat finish with collar: The integrated collar ensures tight clamping against your fixture without damaging the underlying surface.

In a nutshell

The right choise for

With the Spit hit M hammer anchor with collar 8X90/60 P, you secure battens, timber framing, and profiles quickly and securely into solid and porous masonry. Simply drill an 8 mm hole and drive the plastic plug and screw in with a hammer, or install it using a screwdriver. The expansion mechanism activates only when fully inserted, providing reliable holding power in brick and aerated concrete for fixtures up to 60 mm thick. The integrated collar prevents the plug from slipping too deep while ensuring a clean finish, and the PZ2 drive makes adjustments or removal straightforward.

Product information FAQ

€0.30

In stock - tax incl.

Key features according to our expert

Length (Wall plug): 92 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
With collar: Yes
Application: Brick; Aerated concrete
type (screw head): PZ2
Drilling diameter: 8 mm

Product description

High-performance percussion plug with collar for in all materials
Easy to install and suitable for all materials
CE certified percussion plug
Spreading through hammer blows
Perfect pressure due to flat collar
Very good performance in hollow materials
Flat finish due to countersunk head
Available with large collar (Hit M-P20)

Applications

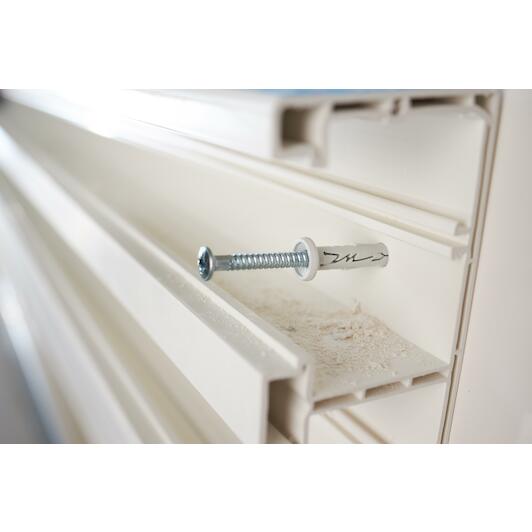

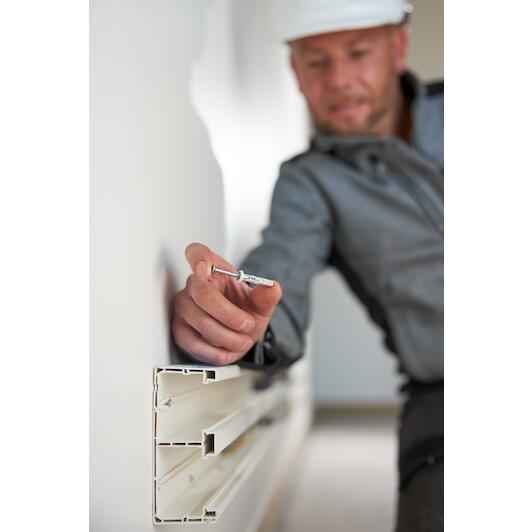

Electrical installations

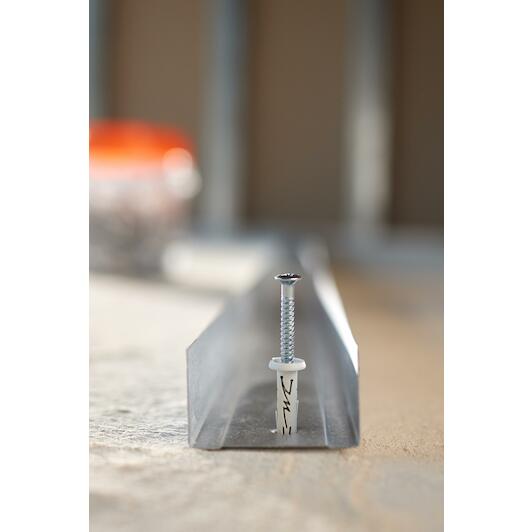

Metal stud profile
Beams and rafters
Signalling
Insulation supports
Skirting boards

Documents

⤓ Declaration of Conformity PDF

All Features

Length (wall plug): 92 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
With collar: Yes
Application: Brick; Aerated concrete
Type (screw head): PZ2
Drilling diameter: 8 mm
Maximum trapping: 60 mm
Bit size: PZ 2
Anchoring depth: 30 mm
Product material: Nylon
Anchor diameter: 8.0 mm
Min. anchor distance: 100 mm
Base material colour: PURPLE
Head type: Flat head
Minimum drilling depth: 40 mm
Min. thickness of base material: 100 mm
Surface treatment: Galvanised
Drill diameter: 8.0 mm
Maximum installation depth: 30 mm
Throughput diameter: 8 mm
Anchor length: 92 mm
Head diameter: 13.0 mm
Min. edge distance (mm): 100 mm

Brand SPIT
02608971
EAN 3439510600924
Supplier number SPIT 060092

Frequently asked questions about this product

Answered by specialists

What drill bit diameter is required for this anchor?: You need a drill bit with an 8 mm diameter for this hammer-in plug.
What screw drive type does the nail screw have?: The screw is fitted with a PZ2 drive.
What is the maximum fixture thickness for this anchor?: The maximum thickness of the fixture you can attach is 60 mm.
In which base materials can you use this hammer-in anchor?: It is suitable for substrates such as solid brick, aerated concrete, and hollow blocks.
What is the purpose of the collar on this plug?: The flat collar prevents the plug from slipping into the drill hole and ensures optimal pressure distribution.
