Which base materials are suitable for this anchor?

This nail anchor is approved for use in both cracked and non-cracked concrete.

What drill hole diameter is required for installation?

You need a drill hole diameter of 6 mm with a minimum drilling depth of 50 mm.

What is the maximum fixture thickness?

The maximum fixture thickness of the material being attached is 5 mm.

How is the Spit UDZ nail anchor installed?

Insert the anchor through the fixture into the hole and drive it home using a hammer.

What is the purpose of the wide head?

The 12.8 mm head diameter provides a large clamping area ideal for metal profiles and ceiling tracks.

SPIT 060084 UDZ metal nail anchor 6x5/35 - head Ø12,8mm zinc-plated

Name: SPIT 060084 UDZ metal nail anchor 6x5/35 - head Ø12,8mm zinc-plated
Brand: SPIT
SKU: 02662650
Price: 0.41 EUR
Availability: InStock

Supplier number: SPIT 060084 | EAN 3439510600849

0.41 tax incl.

€0.34 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 100.

Delivery by DHL

✆ Talk to a specialist

Reliable ceiling fixing with Spit

Practical benefits

Fast hammer in installation: You drive the metal anchor quickly with a hammer for instant and secure expansion in solid concrete.

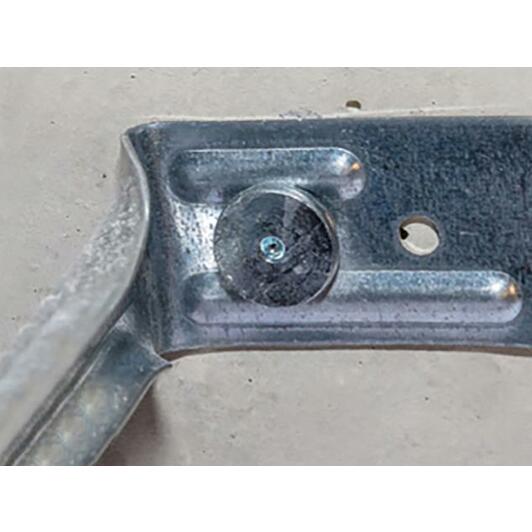

Wide collar for profiles: The 12.8 mm head diameter firmly clamps metal channels, drywall tracks, and brackets securely against the surface.
Durable fire resistant steel: Made from zinc-plated steel, it delivers dependable fire resistance and strong hold for overhead structural fixings.

In a nutshell

The right choise for

With the Spit udz metal nail anchor, you achieve fast and reliable anchoring in cracked and non-cracked concrete. Simply insert the anchor through your fixture of up to 5 mm thickness and drive it in with a hammer for an immediate, solid hold. The wide 12.8 mm collar head provides a large clamping surface, keeping drywall tracks, ceiling systems, cable trays, and pipes firmly secured against pull-through. Built from fire-resistant zinc-plated steel, it offers dependable strength and peace of mind for all your overhead installations.

Product information FAQ

€0.41

In stock - tax incl.

Key features according to our expert

Wire dimension: 6 mm
Length: 35 mm

Product description

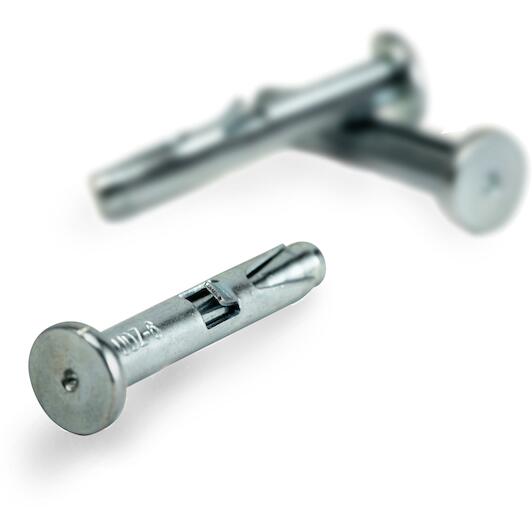

Metal nail anchor
ETA-approved and easy-to-install metal nail anchor
ETA-approved - ETAG001 part 6 - for cracked and non-cracked concrete
Quick installation with a hammer
Large diameter head ideal for fixing metal profiles
Fire resistance

Applications

Metal profiles
Ceiling
Fire resistant cladding
Chains
Metal stud profile
Piping
Clamps

All Features

Wire dimension: 6 mm
Length: 35 mm
Min. edge distance (mm): 100 mm
Product material: Steel
Head type: Cylinder head
Base material colour: GREY
Min. anchor distance: 200 mm
Anchor diameter: 6.0 mm
Maximum trapping: 5 mm
Anchoring depth: 30 mm
Min. thickness of base material: 80 mm
Minimum drilling depth: 50 mm
Drill diameter: 6.0 mm
Base material: Cracked concrete, Non-cracked concrete
Maximum installation depth: 30 mm
Throughput diameter: 7 mm
Anchor length: 40 mm
Head diameter: 13.0 mm
Treatment: Galvanised

Brand SPIT
02662650
EAN 3439510600849
Supplier number SPIT 060084
