Product description

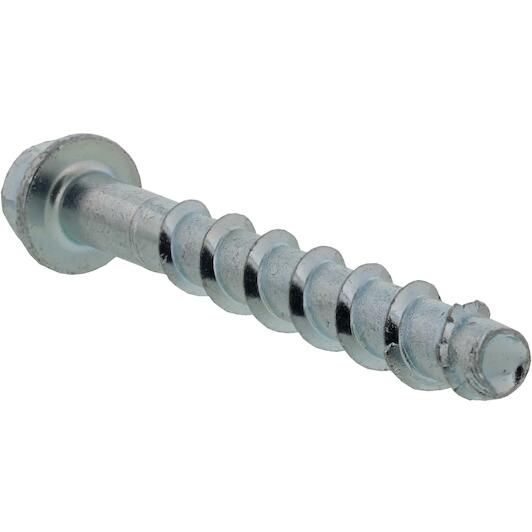

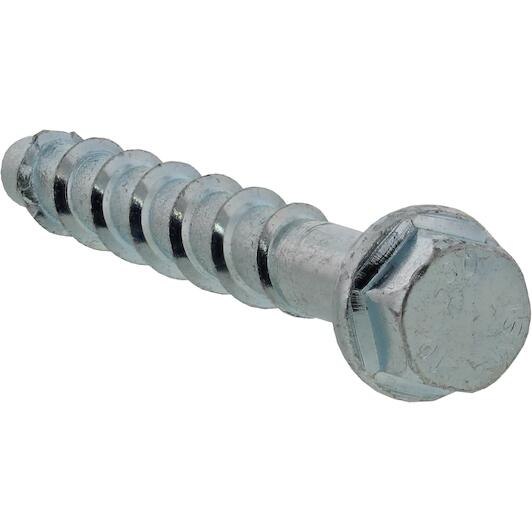

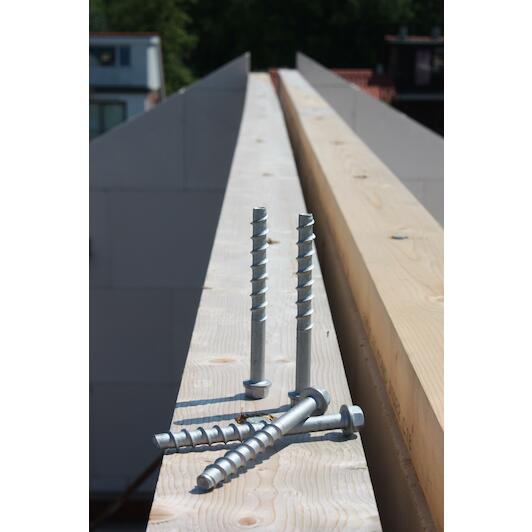

- Self-tapping screw with hexagonal head for fastening in cracked and non-cracked concrete and for seismic applications
- ETA seismically approved, fire tested, leading concrete anchor with excellent performance
- The full ETA Option 1 range can be used in cracked and non-cracked concrete
- TAPCON XTREM range for use in C1 seismic zones
- Fire certificate
- Longer effective thread ensures the best performance on the market
- New patented thread design for easy installation
- Adjustable plug for situations requiring alignment without loss of performance
- Removable anchor for temporary fixing
- Wide choice of drill diameters, heads and lengths
- Removable anchor for temporary fixing
- 3 anchoring depths for Ø8 to Ø14
Applications
- Pipes

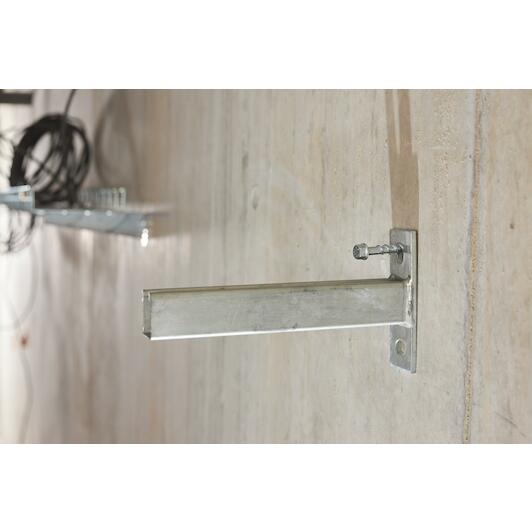

- Suspended elements on ceiling or wall
- Pull and pressure braces
- Suspended ceiling
- Temporary fixings
- Scaffolding
- Signposting
- Safety barriers
- Stadium seating
- Pallet racks

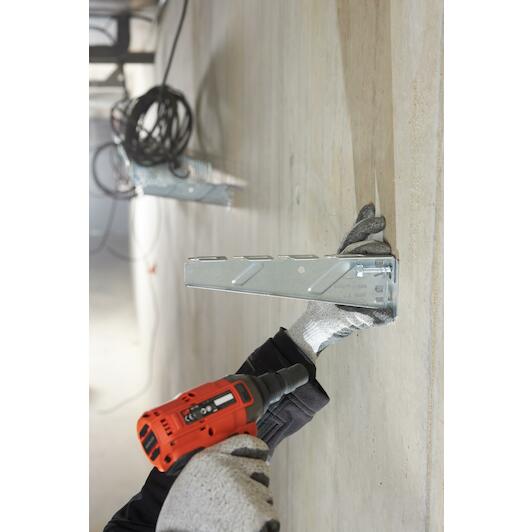

- Mechanical and electrical installations
- Cable ducts

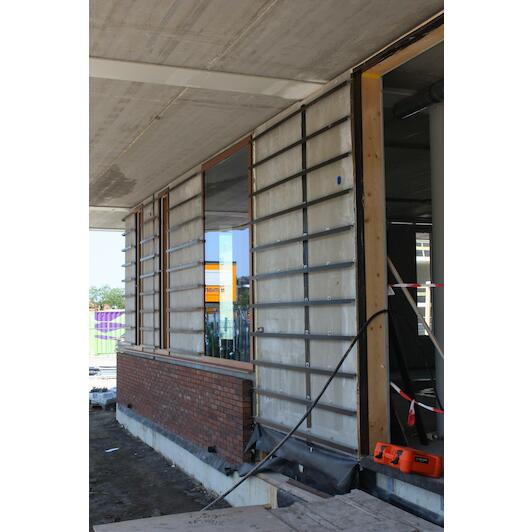

- Window frames
- Railings
- HVAC
Key features according to our expert
-
Diameter: 14 mm
-
Max. useful length: 150 mm
Specifications / All features
-
Brand:
SPIT
-
02758457
-
EAN:
3439510587690
-
Supplier number:
SPIT 058769
- Diameter
- 14 mm
- Max. useful length
- 150 mm
- Min. edge distance (mm)
- 50 mm
- Product material
- Carbon steel
- Head type
- Hexagon head
- Base material colour
- GREY
- Min. anchor distance
- 50 mm
- Anchor diameter
- 14.0 mm
- Maximum trapping
- 75 mm
- Min. thickness of base material
- 130 mm
- Minimum drilling depth
- 85 mm
- Drill diameter
- 14.0 mm
- Minimum placement depth
- 75.0 mm
- Base material
- Cracked concrete, Non-cracked concrete
- Maximum installation depth
- 115 mm
- Throughput diameter
- 18 mm
- Anchor length
- 150 mm
- Key size
- 21.0 mm
- Treatment
- Galvanised
